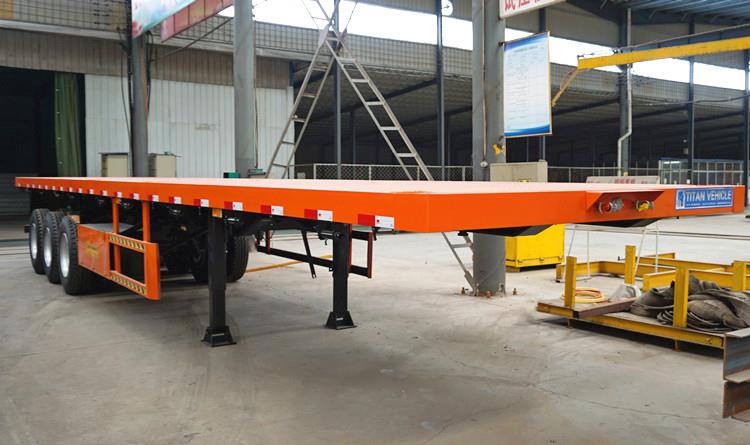

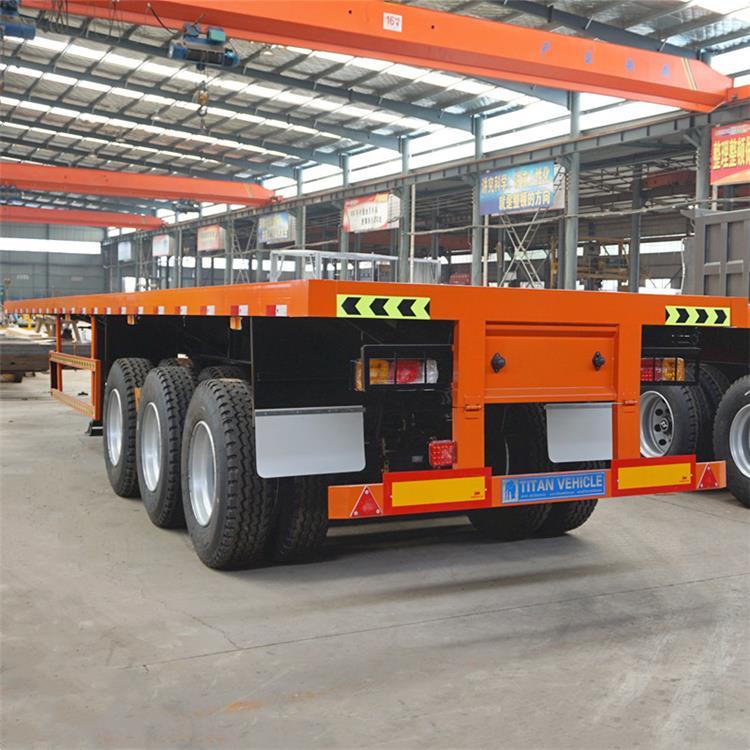

Three Axle Flatbed Container Trailer

How much is a flatbed trailer?

The 40 ft flatbed trailer price you want is one of the most advantageous products of TITAN. It is mainly used for transporting 20&40ft containers or some other cargo.

We also have the 2 axles, 3 axles, 4 axles, the model with front board, the color could be painted as your request; the size and load can be customized according to your requirements. We also can customized according to your request 100%.

How Much is a Flatbed Trailer? 40 ft Three Axle Flatbed Container Trailer Prices

How Much is a Flatbed Trailer? 40 ft Three Axle Flatbed Container Trailer Prices

Specification of 40 ft flatbed trailer:

Model: 40 ft container trailer price

Dimension(mm): 12500x2500x1550mm

Loading capacity(ton): ≤60T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

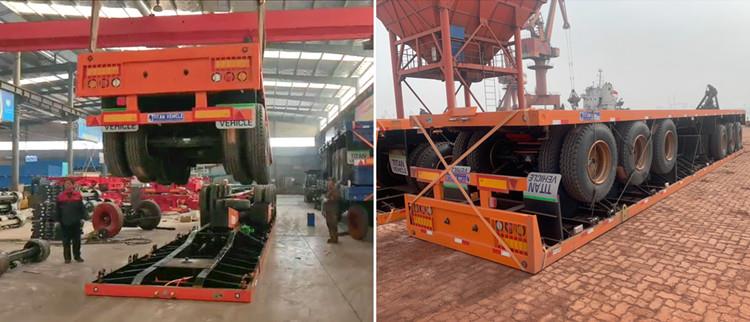

Package of 40 ft flatbed trailer price:

When transporting 40 ft flatbed trailer prices, many customers use container transportation, some customers are bulk carriers or ro-ro ships. We will recommend suitable transportation methods to customers according to different situations.

All three axle flatbed trailer will undergo rigorous testing before delivery to ensure the quality. As a three axle flatbed trailer manufacturers, we have professional technicians to operate. In addition, a layer of wax will be sprayed on the 40 ft flatbed trailer for sale to prevent seawater erosion, and then a layer of rain cloth will be wrapped to prevent moisture so that it is foolproof.

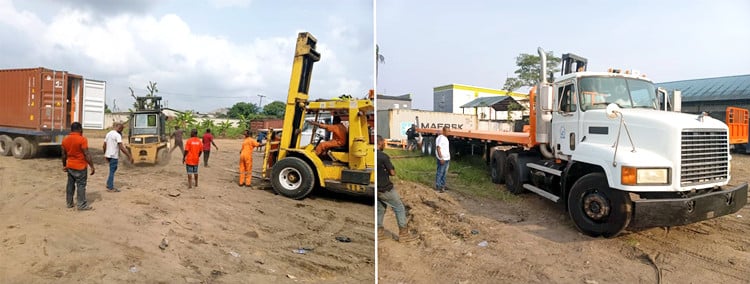

Customer feedback of flatbed container trailer:

Video of 40 ft flatbed trailer for sale:

Through this video, you can see different types of flatbed trailers, As well as the process, testing, packaging and customer feedback, etc.

Please click "TITAN Flatbed Trailer" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
