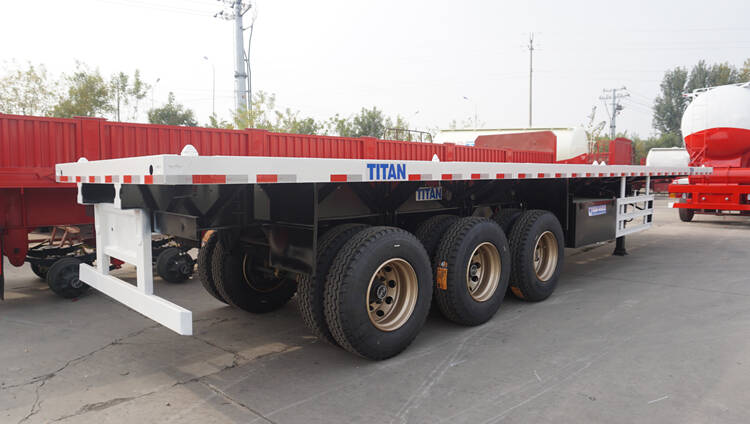

Tri Axle Trailer 40ft
Tri Axle Trailer 40ft

Tri Axle Trailer 40ft

9800 USD

Different Parameters, Different Price. Price Reference Only.



3 axles 40ft flatbed trailer is the most popular model. It can transport 20 foot and 40 foot containers.

SKU: Tri Axle Trailer 40ft
GTIN: 06975766112653
MPN: TITAN9403011
Brand: TITAN

Product Description:

40ft flatbed semi trailers for sale is the most popular model. Flatbed semi trailers is usually used to transport 20ft or 40ft containers.

According to the length, TITAN can also offer the 45ft 48ft 53ft, 2axles/3axles/4axles, the capacity from 35 ton to 60 ton. For the types, we can also make the flatbed with sidewall or stake.

And skeleton cheap semi trailers for sale are also a good choice for transporting containers.

TITAN Flatbed Cheap Semi Trailers for Sale Near Me in Sudan



Specification:

Dimension(mm): 12500x2500x1550mm

Loading capacity(ton): ≤60T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension(Germany or America type) or Air suspension(China brand or BPW brand)

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats



Advantage:

1. TITAN adopts high strength steel material to manufacture the semi trailers, it can make the semi trailer have a higher loading capacity and a longer service life.

2. There are 9 cross beams, the distance between two tilted supports is less than 50 centimeters, it can help the main beam have a better loading capacity.

3. To make sure the service life of the semi trailers, all the spare parts TITAN adopt are world famous brand.

4. Hight quality container locks, make sure the stable and safety of the loads.



Video of semi trailers for sale:

Through this videos, you can learn about different types of flatbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.



Please click "TITAN Flatbed Trailer" to get detailed video!



Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
