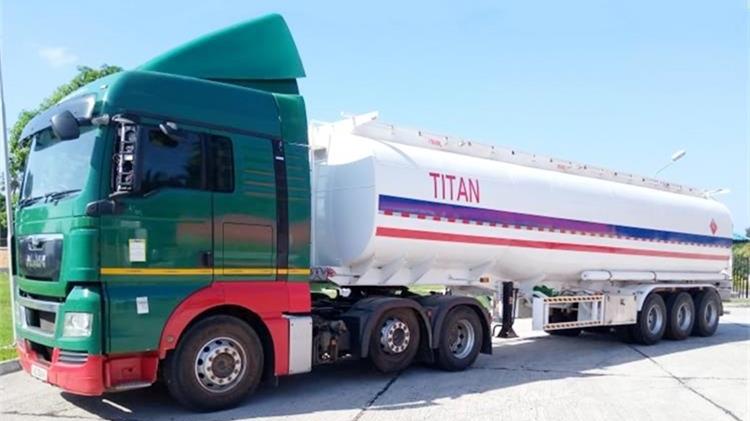

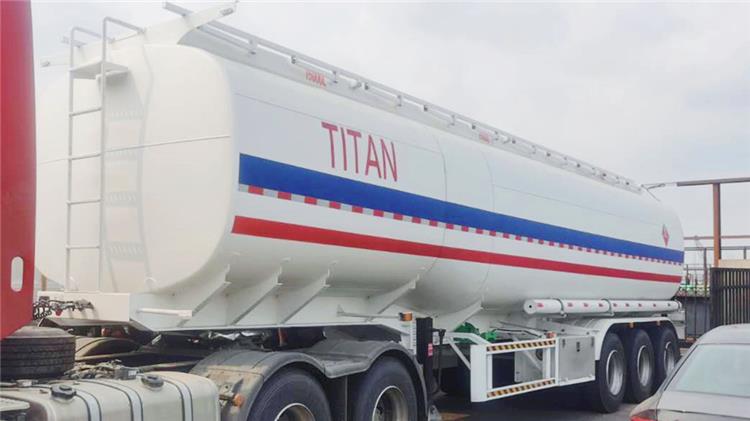

TITAN petrol tanker trailer can reach 45000 liters and 3 axle. The 45000 l petrol tanker trailer can provide 1-7 cabins of petrol tanker trailer for sale, which can be produced according to customer requirements.
Petrol tanker price can be divided into many compartments to load and transport different types of fuels, lubricants, crude oil, etc.
TITAN pays attention to the quality of products, the liquid will produce great tension and impact in the course of transportation, so the TITAN petrol tanker price must be thick and solid, welded joints without defects, our tank trailer thickness is up to 6mm.‹Get Quotation›
Petrol Tanker Trailer | Petrol Tanker Price | How Much Does a Petrol Tanker Cost In Nigeria
Petrol Tanker Trailer | Petrol Tanker Price | How Much Does a Petrol Tanker Cost In Nigeria
Petrol Tanker Trailer | Petrol Tanker Price | How Much Does a Petrol Tanker Cost In Nigeria
Dimension: 11600mm * 2500mm *3450mm
Tare Weight (semi trailer): About 8000-12800kg
Petrol Tanker Price Total volume(L): 45000 Liters
Tank Body Material: Q235 carbon steel
End plate: Q235 carbon steel
Petrol Tanker Price Manhole Cover: Carton steel
Bottom Valve: Aluminum API Pneumatic Bottom Valve
Compressor: BOHAI 10m³/12m³ or other brands
Discharging Valve: Diameter is 3 or 4 inch
Petrol Tanker Cost Compartments: 3 Compartment
Discharging Pipe: 4 inch rubber hose,2pcs,6m/each
Main beams: Welded design or special design I beam, connected by bolts and nuts Q345 carbon steel material
Petrol Tanker Cost Axle: 3 axles,13T,FUWA
Landing Gear: JOST(D200T) or China brand 28T
Kingpin: JOST 2.0 or 3.5 inch bolt-in king pin
Suspension: Mechanical suspension
Leaf Spring: 90(w)mmx13(thickness)x10layers or 10mm x12mmx12 layers
Pneumatic Braking System: WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); 45L air tank
Rim: 9.00-22.5Chinese brand
Tire: 12.00R22.5
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.
Accessories: One standard tool box
Through this video, you can learn about different types of fuel tanker trailers, as well as the process, testing, packaging and customer feedback, etc.
