45000 L aluminum fuel tankers semi trailers is known as an aluminum tanker trailer, aluminum tanker. The aluminum tank trailer is composed of a tank body, power take-off, driveshaft, gear oil pump, pipe network system, and other components.
The 45000l aluminum fuel tankers semi trailers are used for carrying different liquids like fuel, petrol, water, palm oil, etc.
To fabric the most durable tankers, especially for Africa Market, considering the road condition. This distortion resistance, earthquake resistance and bump, make your transport safe, and also beneficial.
The volume of the 45000 l aluminum fuel tankers semi trailers can be customized, to reach 40,000 liters, 45,000 liters, 54,000 liters, up to 90,000 liters. With the different compartments, like two, three, four, or more compartments, to load different liquid.‹Get Quotation›
45000 L Aluminum Fuel Tankers Semi Trailers Price for Sale in Costa Rica
Tri Axle Aluminum Tanker Trailer for Sale Price

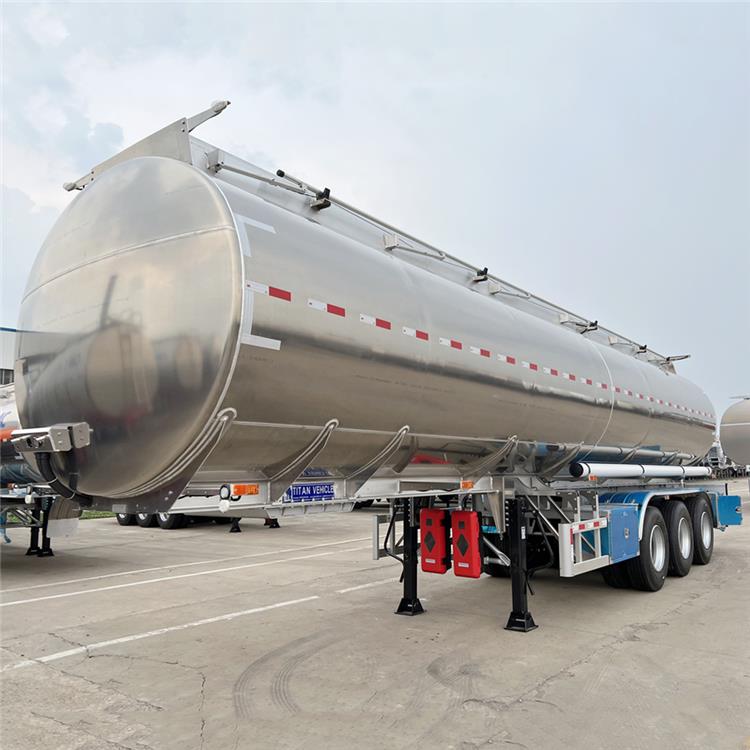

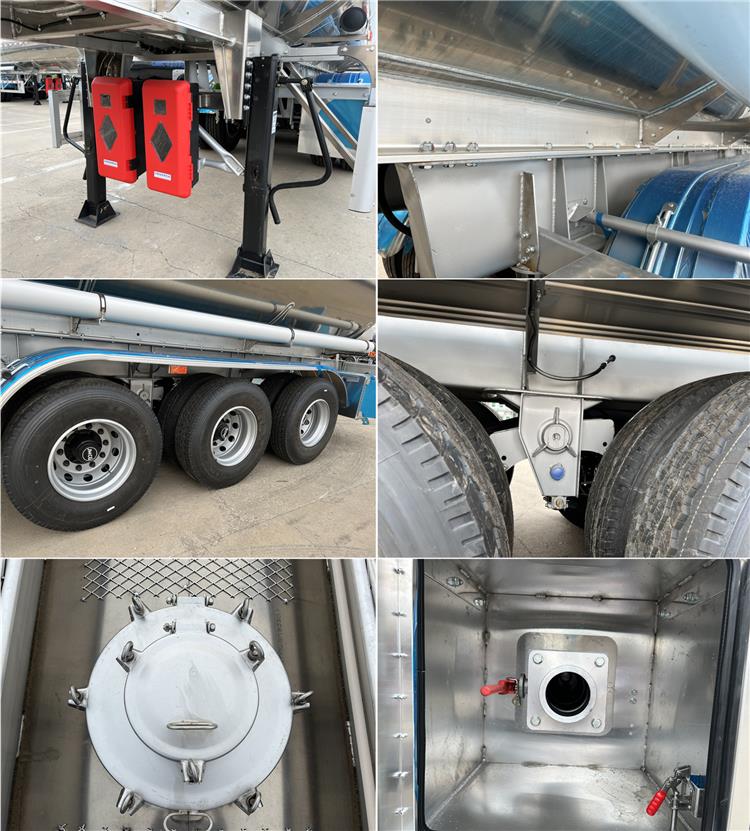

Details of 45000 Liters Aluminum Tanker Trailer

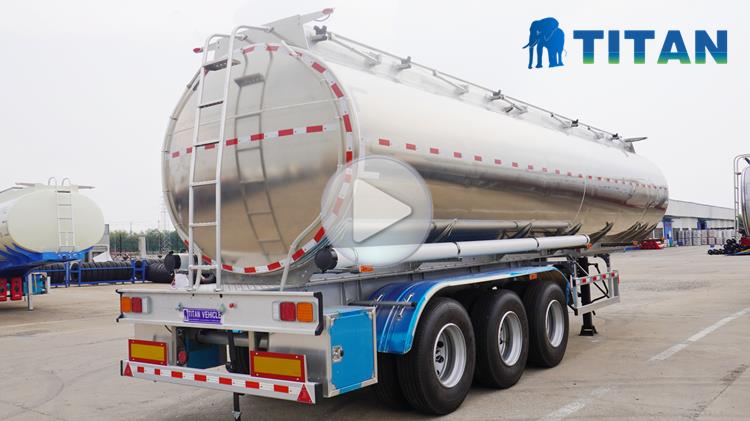

Video of Aluminum Tanker Trailer

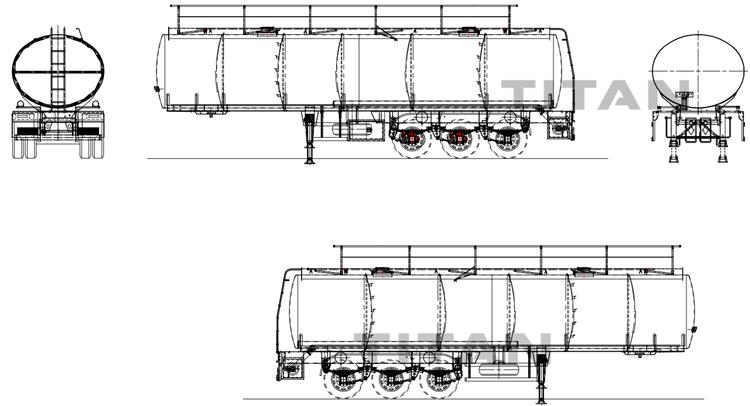

Dimension: 12000mmx2490mm x3990mm (the exact size depends on the final design.)
Total volume: 45000 liters
Tank Body Material: 5mm
End plate: 5mm
Manhole Cover: Aluminum alloy
Bottom Valve: Aluminum API Pneumatic Bottom Valve
Discharging Valve: Diameter is 3 or 4 inch
Compartments: Single Compartments
Discharging Pipe: 4 inch rubber hose,2pcs,6m/each
Cat Walk: With (common model or special design)
Main beams: Welded design or special design I beam, connected by bolts and nuts Q345 carbon steel material
Axle: 3 axles,13T, FUWA brand
Landing Gear: JOST(D200T) or China brand 28T
Kingpin: JOST 2.0 or 3.5 inch bolt-in king pin
Suspension: Mechanical suspension
Leaf Spring: 90(w)mmx13(thickness)x10layers or 10mm x12mmx12 layers
Pneumatic Braking System: WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); 45L air tank
Rim: 9.00-22.5/8.00-20/8.5-20 Chinese brand
Tire: 12.00R22.5
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.
Accessories: One standard tool box
Shipping Terms: By bulk cargo, RORO or 40HQ containers
1. Strong corrosion resistance, improves the service life
The 45000 L aluminum fuel tankers semi trailers does not rust and does not pollute the oil. Aluminum alloy and most chemical media and food such as acetone, benzene, gasoline and diesel, kerosene, glacial acetic acid, etc. Low related maintenance cost, no anti-corrosion surface metal treatment is required, the body will not rust when scratched, the appearance is durable, and it is easy to clean.
2. Good ductility improves safety and eliminates hidden dangers
The tank body is made of an aluminum alloy profile, which has a good elongation rate and high strength. Oil is flammable and explosive
Therefore, safety is an important indicator for considering 45000 L aluminum fuel tankers semi trailers. Oil products are prone to thermal expansion and contraction in extremely cold or extremely hot conditions. The use of 45000 liters aluminium fuel tanker trailer greatly improves safety.
3. Aluminum alloy has good electrical conductivity
effectively reducing the accumulation of static electricity on the tank. When hair No sparks will be generated during collision or tipping, eliminating the hidden danger of fire or explosion.

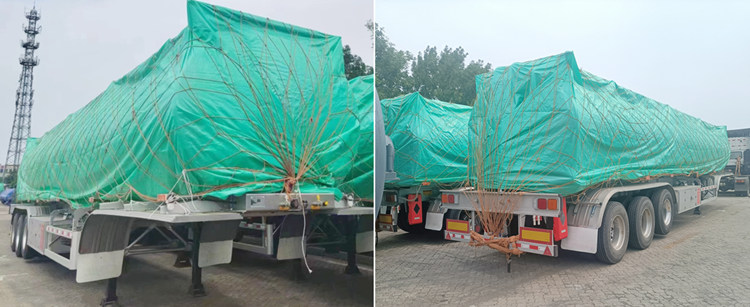

To prevent the paint of the 45000 l aluminum fuel tankers semi trailers from being corroded by seawater, we will spray a layer of wax on the surface of the 45000 l aluminum fuel tankers semi trailers before transportation. We will wrap all diesel engines of aluminum tanker trailers with rain cloth.
Through this video, you can learn about different types of fuel tanker trailers, as well as the process, testing, packaging and customer feedback, etc.
