45000 Liters Fuel Tankers Semi Trailer

Semi Tanker Trailer Price: 15500USD

The 45000 Liters fuel tank semi trailer is divided into two parts, the fuel tank part and the skeleton or driving part that supports the tank body.

The rear of the 45000 Liters fuel tank semi trailer is roughly the same, there are 2 axles and three 3 axles. Choose the tractor according to your needs. 45000 Liters fuel tank semi trailer is usually called by the brand of tractor.

Semi tanker trailer is mainly used to transport diesel, petroleum, oil, petrol, etc. It is generally used for long-distance transportation, mainly used in gas stations, factories and other places.‹Get Quotation›

Semi Tanker Trailer | Fuel Tank Semi Trailer | Heavy Fuel Tanker Semi Trailer for Sale | Fuel Tank Trailer Prices

Semi Tanker Trailer | Fuel Tank Semi Trailer | Heavy Fuel Tanker Semi Trailer for Sale | Fuel Tank Trailer Prices

Semi Tanker Trailer | Fuel Tank Semi Trailer | Heavy Fuel Tanker Semi Trailer for Sale | Fuel Tank Trailer Prices

Specification of Fuel Tanker Price：

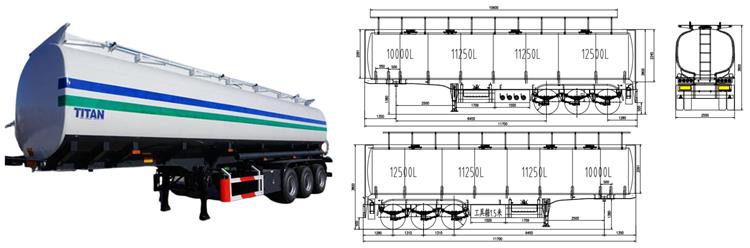

Dimension: 11000mm * 2550mm *3800mm

Tare Weight (semi trailer): About 8000-12800kg

Heavy Fuel Tanker Semi Trailer for Sale Total volume(L): 45000 liters

Tank Body Material: Q235 carbon steel

End plate: Q235 carbon steel

Heavy Fuel Tanker Semi Trailer for Sale Manhole Cover: Carton steel

Bottom Valve: Aluminum  API Pneumatic Bottom Valve

Compressor: BOHAI 10m³/12m³ or other brands

Discharging Valve: Diameter is 3 or 4 inch

Compartments: 4 Compartment

Discharging Pipe: 4 inch rubber hose,2pcs,6m/each

Cat Walk: With (common model or special design)

Main beams: Welded design or special design I beam, connected by bolts and nuts Q345 carbon steel material

Heavy Fuel Tanker Semi Trailer for Sale Axle: 3 axles,13T,FUWA

Landing Gear: JOST(D200T) or China brand 28T

Kingpin: JOST 2.0 or 3.5 inch bolt-in king pin

Fuel Tank Trailer Prices Suspension: Mechanical suspension

Leaf Spring: 90(w)mmx13(thickness)x10layers or 10mm x12mmx12 layers

Pneumatic Braking System: WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); 45L air tank

Rim: 9.00-22.5Chinese brand

Fuel Tank Trailer Prices Tire: 12.00R22.5

Fuel Tank Trailer Prices ABS: Optional

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.

Accessories: One standard tool box

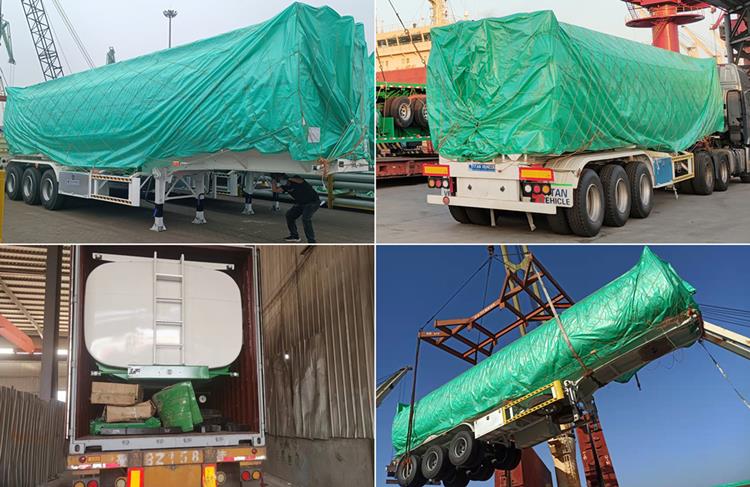

Shipping Terms: By bulk cargo, RORO or 40HQ containers

Advantage Fuel Tank Trailer Prices

1. TITAN uses Q235 low carbon alloy steel to make the tanker, the thickness of the tank is 5mm thick, which is very strong.

2. The 45000 liters fuel tank trailer price tank adopts longitudinal welding technology to minimize the number of welds. This greatly improves the robustness of the tank. Increases its service life of the fuel tanker trailer.

3. The 45000 liters fuel tanker trailer is also painted with polyurethane, which is beautiful in color and twice the cost of ordinary paint. Color will not fade within 5 years of use.

4. Discharge port: 45000 liters fuel tank trailer price can also be divided according to customer needs. The discharge port can also be changed to the discharge port of the European system according to customer requirements

5. Tank cover: TITAN uses a European standard pair of explosion-proof covers. There are breathing valve, oil and gas recovery valve and anti-overflow valve inside.

6. After the production of all fuel tank trailer price, pressure test, metal flaw detection test, and water filling test will be carried out to ensure good airtightness of the tank.

7. The TITAN is equipped with a thickened wave-proof board to reduce the impact force of the liquid on the semi tanker trailer.

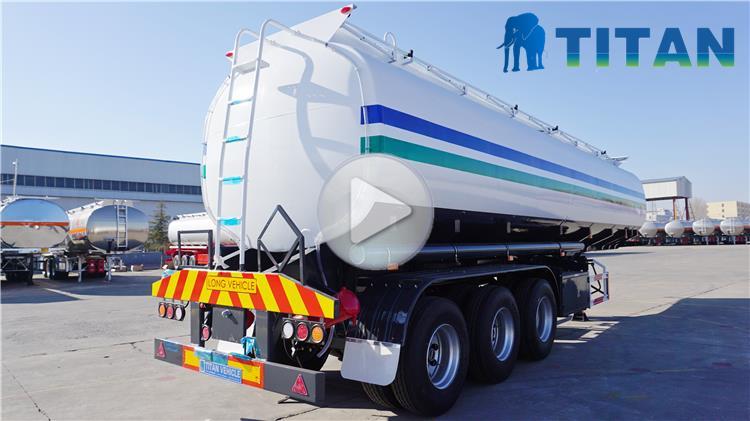

Through this video, you can learn about different types of fuel tanker trailers, as well as the process, testing, packaging and customer feedback, etc.
