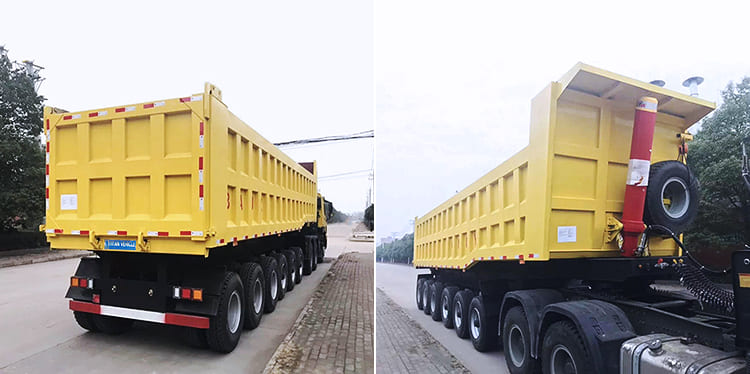

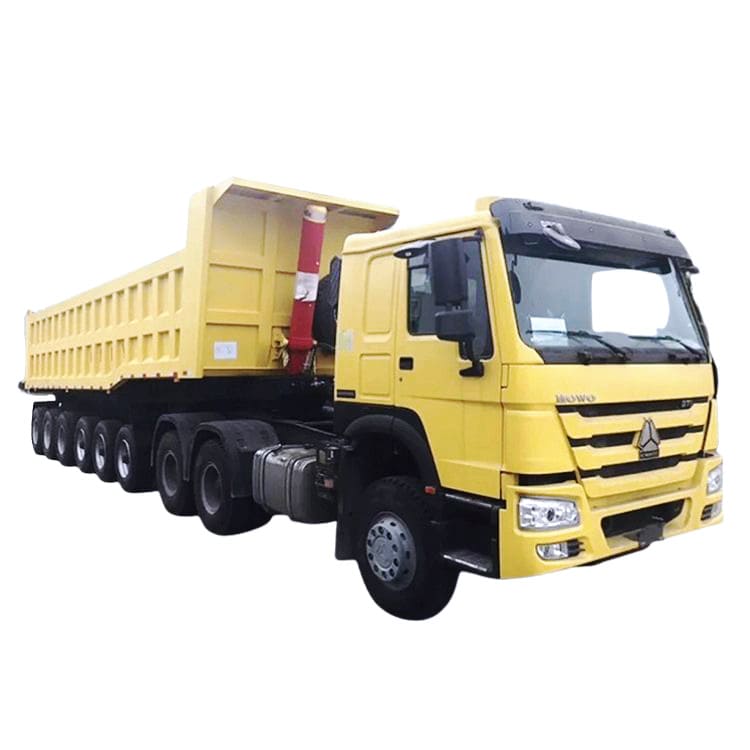

6 Axles 45 Cubic Hydraulic Dump Trailer

Product Description:

TITAN Vehicle uses advanced technology on 6 Axles 45 Cubic Hydraulic Dump Trailer,the whole trailer has reasonable structure, reliable performance, simple operation and beautiful appearance.

The accessories are all made of well-known brand, such like WABCO brake systerm and JOST landing gear, inspected and used in strict accordance with the requirements of the quality system certification documents to ensure the good quality of the trailer.

Specification:

Dimension: 9300mmx2500mm x3700mm ( inside dimension )

Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.

Bottom Platform: 4 thick checkered plate

Side wall thickness: 4mm

Total volume: 45cubic

End plate: 8mm

Lifting System: Full set of HYVA lifting cylinder

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20 or 9.00-20

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

ABS: Optional

Through these videos, you can learn about different types of semi dump trailers, as well as the process, testing, packaging and customer feedback, etc.

Please click " TITAN Dump Semi Trailer" to get detailed videos!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
