38 Tons Heavy Duty Dump Truck Trailer
38 Tons Heavy Duty Dump Truck Trailer

38 Tons Heavy Duty Dump Truck Trailer

17500 USD

Different Parameters, Different Price. Price Reference Only.



38 Tons Heavy Duty Dump Truck Trailer is a commonly used transportation machinery, suitable for the transportation of bulk and scattered goods such as coal, ores, and construction materials.



SKU: 38 Tons Heavy Duty Dump Truck Trailer
GTIN: 6975766111243
MPN: TITAN9407144
Brand: TITAN

Product Description

38 Tons Heavy Duty Dump Truck Trailer's carridge can automatically tip over a certain angle for unloading, 38 Tons Heavy Duty Dump Truck Trailer can greatly save unloading time, shorten the transportation cycle, improve production efficiency, reduce transportation costs, and indicate the loading volume. It can effectively improve the transportation efficiency of the loader and unloader to transport bulk and scattered goods.

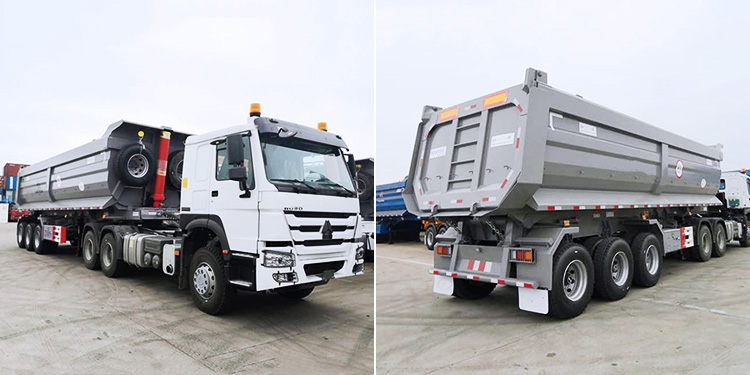

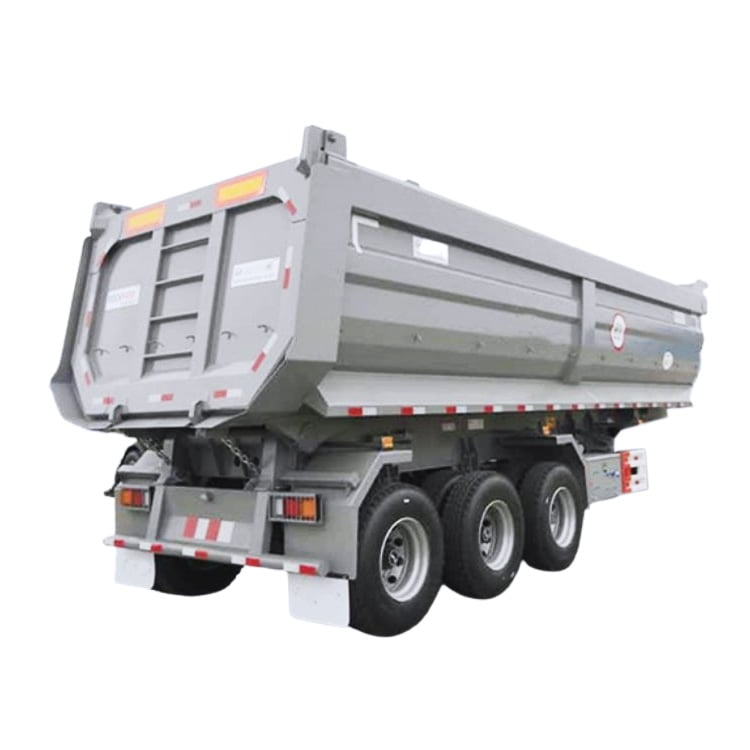

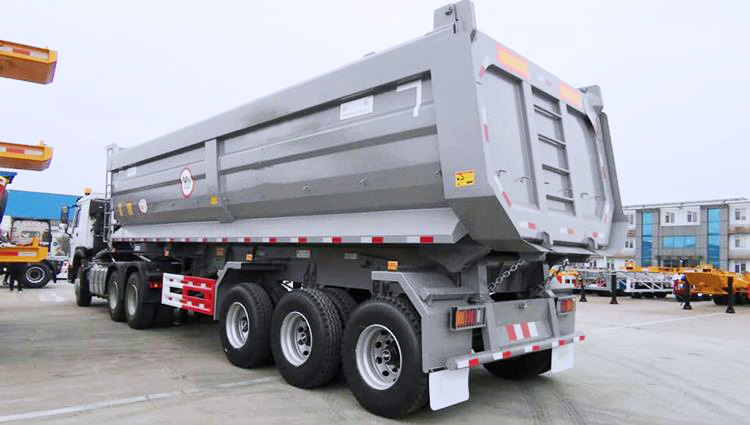

38 Tons Heavy Duty Dump Truck Trailer

38 Tons Heavy Duty Dump Truck Trailer

38 Tons Heavy Duty Dump Truck Trailer



Specification:

Dimension: 11000mmx2500mm x4000mm

Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.

Bottom Platform: 4 thick checkered plate

Side wall thickness: 4mm

Total volume(m³): 38 ton

End plate: 8mm

Lifting System: Full set of HYVA lifting cylinder

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20 or 9.00-20

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

ABS: Optional

Valve: WABCO valve

Light: LED light (especially intended for oversea markets)

Voltage: 24V

Tool box: 1 set



Through these videos, you can learn about different types of semi dump trailers, as well as the process, testing, packaging and customer feedback, etc.

tipper trailer video



Please click " TITAN Dump Semi Trailer" to get detailed videos!



Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!



Review

Johnny Ramdass from Senegal - 2022-04-02T11:04:17+0800
We operate coal mine transportation, so good transportation tools are essential for us. We buy 10 units of semi tipper trailers at TITAN every year. TITAN is our partner for 6 years. It is also a supplier of quality and service coexistence.
