Lowboy Gooseneck Trailers are a form of double drop lowboy trailer that are designed to haul all types of heavy equipment. Ease and safety of loading are the primary features.
Lowboy Gooseneck Trailers are a form of double drop lowboy trailer that are designed to haul all types of heavy equipment. Ease and safety of loading are the primary features. Loading over the rear of a trailer increases in danger as the equipment gets heavier, taller and wider. The higher weights and higher center of gravity on today’s supersized construction, agricultural, and forestry equipment demand that both the loading height and transport height be significantly lower than our drop deck flatbed trailers.

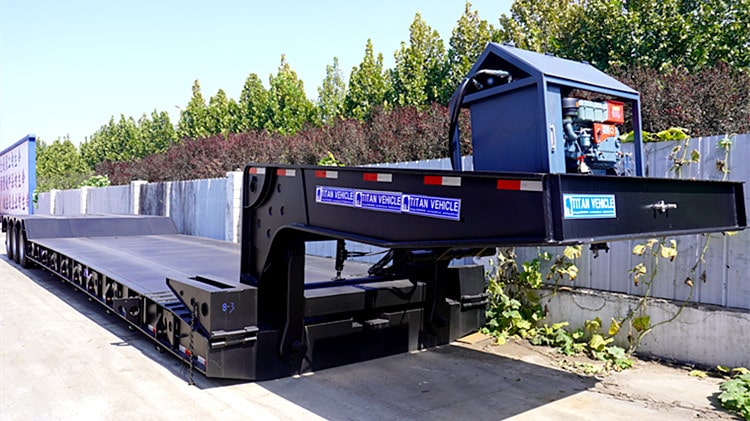

3 Line 6 Axle Lowboy Gooseneck Trailer for Sale in Ghana

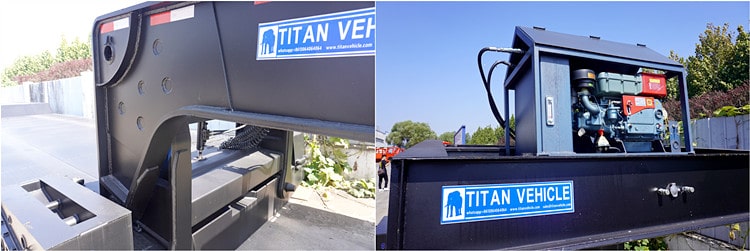

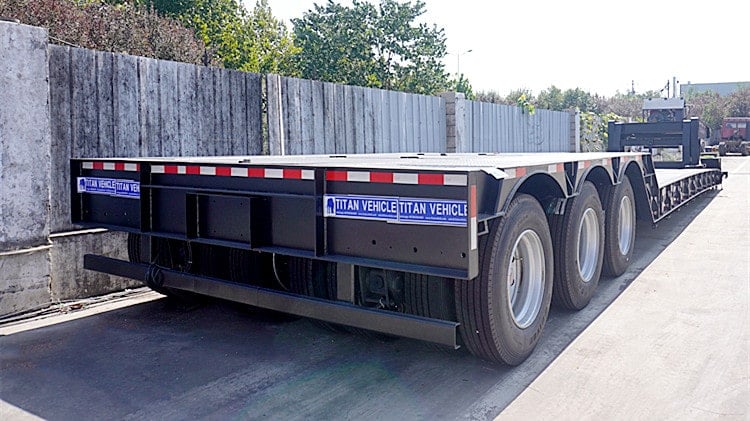

120ton Gooseneck Lowboy Trailers for Sale
120ton Lowboy Gooseneck Trailer for Sale
Dimension: 17000mm x 3000mm x 2500mm
Loading capacity(T): 50-150T
Axle: 3 line 6 axle
Tire: 24 units, 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension or air suspension
Spring leaf: 120(W)mmx16(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Tare weight: About 9.5-19T
Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.
Bottom Platform: 5mm thick, checkered plate
Hydraulic cylinder: 12KW diesel engine with hydraulic station
Ramp: spring or hydraulic type
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust
Through the video, you can know different types of 3 line 6 axle lowboy gooseneck trailer , gooseneck lowboy trailers for sale , 120ton lowboy gooseneck trailer for sale , sinotruck , aluratrailer , faymonville, etc.
