Different Parameters, Different Price. Price Reference Only.

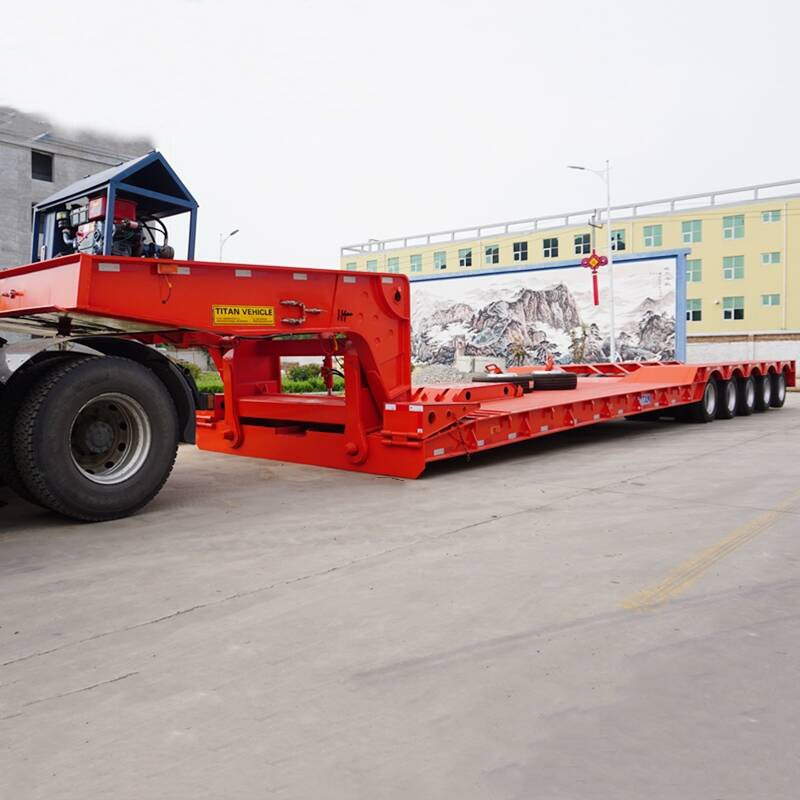

TITAN 5 line 10 axle heavy duty 180 ton removable gooseneck trailer. Detachable gooseneck cargo table is very low, so the stability and security are very good.
TITAN detachable lowboy trailer is noted for its highly robust structure steel and high loading capacity from 60 ton load capacity to 150 ton load capacity.TITAN can provide you the customize Removable Gooseneck Lowboy Trailer to meet your transport requirements.
Detachable gooseneck trailer can separate the gooseneck from the trailer, and achieve contact between the front end of the vehicle and the ground. After the cargo or equipment is loaded, the RGN trailer is restored to the original transportation state in time for transportation.
Loading method for gooseneck trailer: cargo is loaded from the front. Detachable gooseneck cargo table is very low, so the stability and security are very good.
180T Removable Goosneck Trailer For Sale
5 Line 10 Axle Detachable Trailer Price
Details of RNG Lowboy Trailer

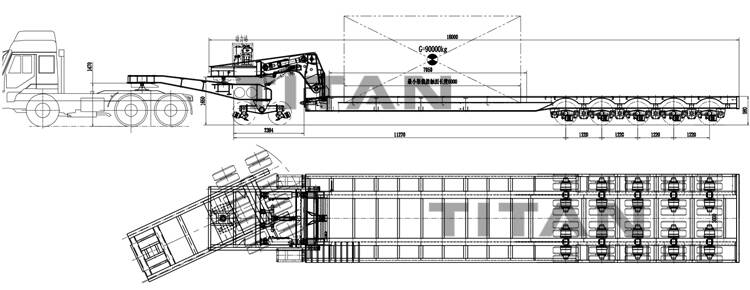

Overall dimension:18000mm*3000mm*2200mm
Loading capacity: >150 ton
Axles:10 axles
Tire: 40 units, 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension or air suspension
Spring leaf: 120(W)mmx16(Thickness)mmx10 layers
Landing gear: JOST/FUWA brand
Tare weight: About 9.5-19T
Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.
Bottom Platform: 5mm thick, checkered plate
Hydraulic cylinder: 12KW diesel engine with hydraulic station
Ramp: spring or hydraulic type
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust
1. The lower working platform height for the transport of high and voluminous loads.
2. TITAN lowboy trailer is with high tensile structure steel with tensile and durable construction.
3. Main beam adopts submerged arc welding technology, improve the loading capacity and meet load requirements on bad road condition.
4. The loading ramps are made by high strength steel, with high loading capacity, which will not happen to the deformation when carrying heavy equipment.
5. The suspension ensures its have high loading capacity, and increase its capacity to twisting forces, shock, bump.
6. World-famous brand spare part, ensure high quality and save costs.

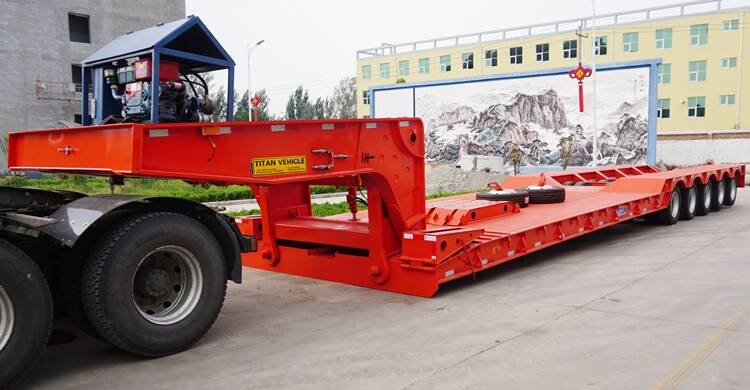

5 line 10 axle 180 ton removable gooseneck trailer

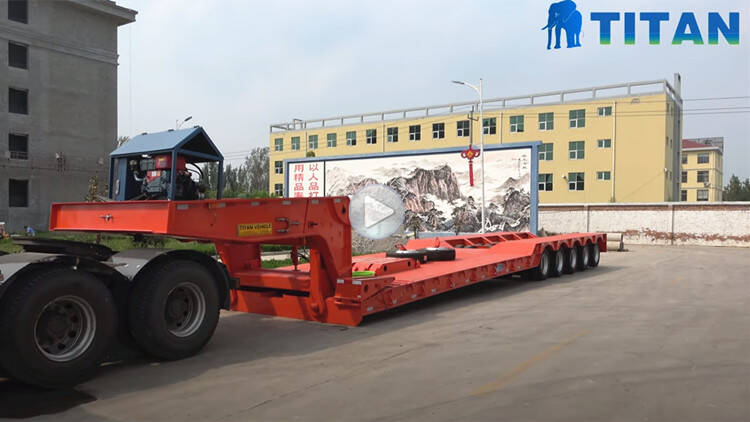

Through this video, you can learn about different types of lowboy semi trailers, as well as the process, testing, packaging and customer feedback, etc.
