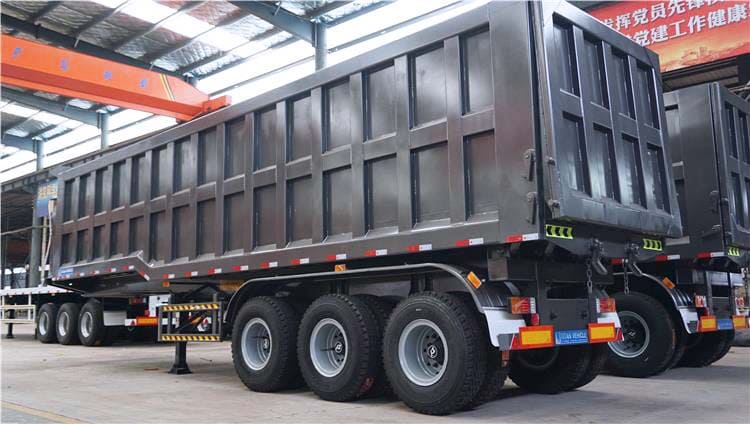

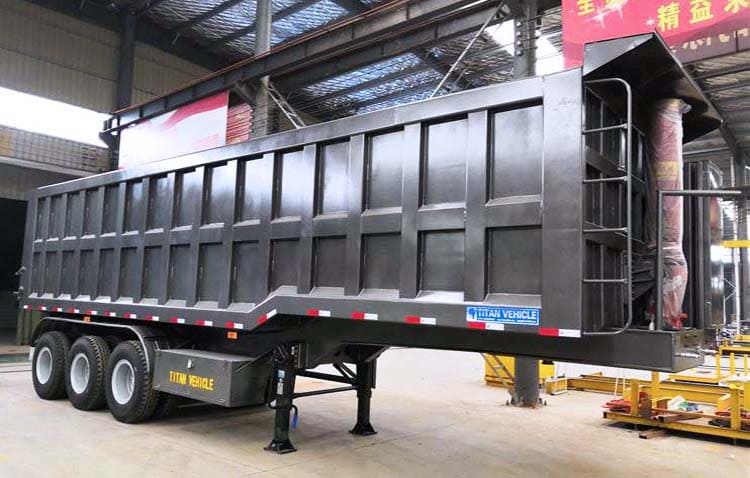

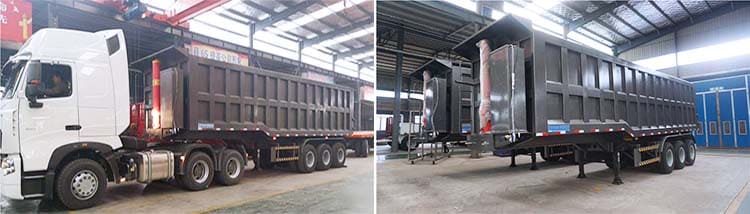

3 Axles 38 Tons End Dump Semi Trailer

Product description:

TITAN 3 Axles 38 Tons End Dump Semi Trailer can effectively transport bulk and scattered goods by loading and unloading machines; it has high strength, strong lifting force, good rigidity, toughness, strong bearing capacity, and no permanent deformation.

Specification:

Dimension: 9300mmx2500mm x3700mm (inside dimension)

Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.

Bottom Platform: 4 thick checkered plate

Side wall thickness: 4mm

Total volume(m³): 38 ton

End plate: 8mm

Lifting System: Full set of HYVA lifting cylinder

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20 or 9.00-20

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set
