Hydraulic 40CBM Tipper Trailer will be send to Ghana Tema Harbour

Hydraulic 40CBM Tipper Trailer will be send to Ghana Tema Harbour.

Ghana customer's 3 Axle 40cbm tipper trailer has been shipped.  In 2020, Customer said that a friend recommended our company, and he might also plan to buy a semi-trailer within a year. In February, the customer contacted us again and wanted to buy tri axle tipper trailer, which mainly transports sand.

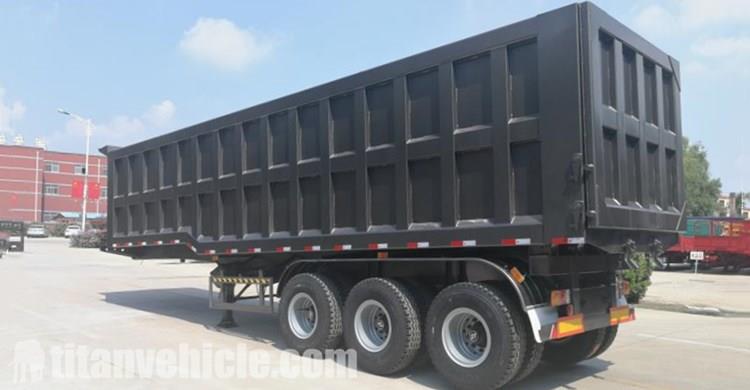

Hydraulic 40CBM Tipper Trailer for Sale In Ghana Tema HarbourHydraulic 40CBM Tipper Trailer for Sale In Ghana Tema Harbour

40cbm tipper semi trailer is suitable for the transportation of bulk cargo such as coal, ore, building materials, etc.

1. The carriage adopts side-turning and back-turning self-unloading methods, which can effectively improve the transportation efficiency of bulk cargo by the loader.

2. Both the frame and the longitudinal beam of the carriage are welded with high-quality manganese plates, and the cargo box has two types: dustpan and rectangle. It has high strength, strong lifting force, good rigidity, toughness, strong bearing capacity, and no permanent deformation.

3. Sophisticated technology: the main components are processed with advanced equipment, the longitudinal beams are fully automatic submerged arc welding, and the assembly machine is used to accurately assemble the axles and steel plate springs.

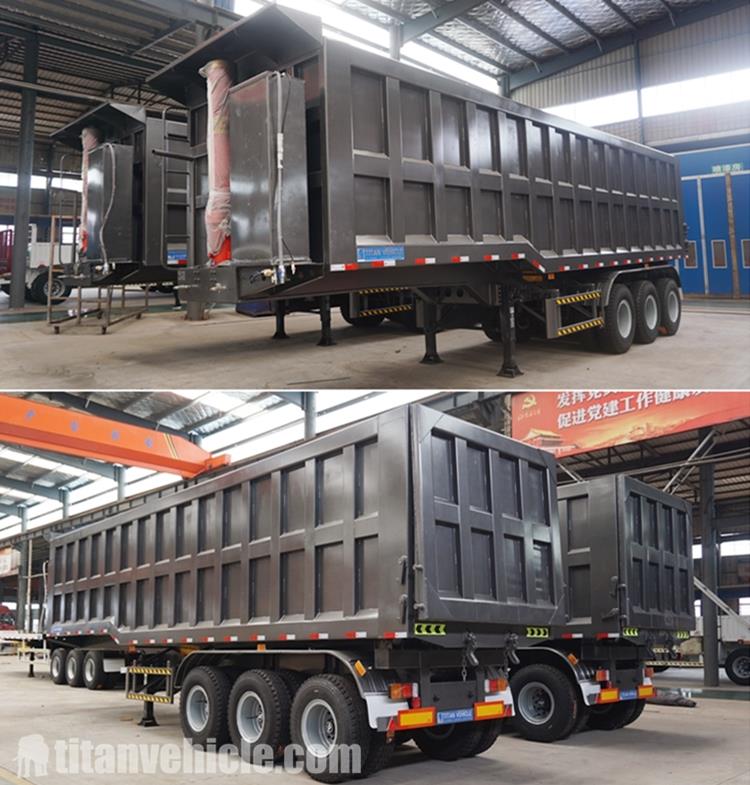

Tri Axle 40CBM Tipper Trailer for Sale PriceTri Axle 40CBM Tipper Trailer for Sale Price



Let's take a look at the common problems and solutions in the use of tipper trailer:

1. Why is the car lowered when the lift switch on the dashboard is pressed, and the car lifts when the lower switch on the dashboard is pressed

This is caused by the reverse connection of the solenoid valve that controls the lifting and lowering. There are three ways to eliminate: swapping the wires of the lifting and lowering switches on the dashboard; swapping the wires of the solenoid valve that controls the lifting and lowering; swapping the two air pipes of the distribution valve.

2. Tipper trailer does not lift

Check the 40cbm tipper trailer oil pump: Whether the rotation direction of the oil pump is correct. Extend your left hand, with your thumb facing the oil pump spline, and the rotation direction of the other fingers is the same, it is a left-handed pump, otherwise, it is a right-handed pump. Whether the oil pump is damaged. The wear of the oil pump will cause the high and low-pressure chambers of the oil pump to communicate and fail to pump oil.

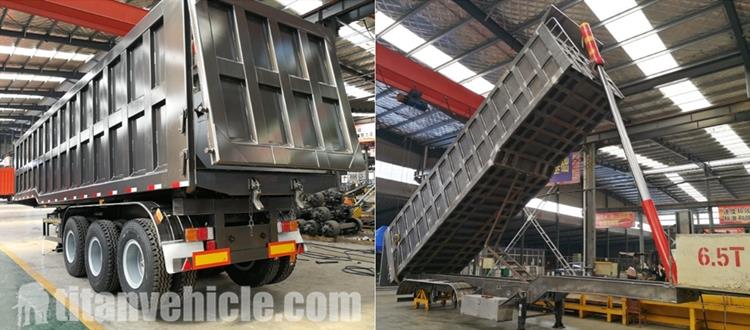

3 Axle Tip Semi Trailer for Sale Near Me3 Axle Tip Semi Trailer for Sale Near Me

Check the distribution valve: whether there is gas in the air pipe on the distribution valve. Press the lift and lower switches, and check whether the two air pipes on the distribution valve have air. If there is no gas, it means that the solenoid valve that controls the lifting and lowering is faulty, and the solenoid valve should be replaced.

3. Important hydraulic components of hydraulic lifting system

The oil pump supplies oil; the one-way valve controls the flow of oil; the distribution valve controls the lifting and lowering of the car box; the oil cylinder generates thrust. Whether the lifting speed of the tipper trailer for sale  box is adjustable? The lifting speed is not adjustable. Falling too fast is a malfunction.

4. Climbing problems during the lifting process

Sometimes during the lifting process of the Tipper trailer compartment, there will be a climbing phenomenon. This phenomenon is mostly caused by the air intake in the hydraulic system and the oil cylinder is filled with oil and gas mixture.

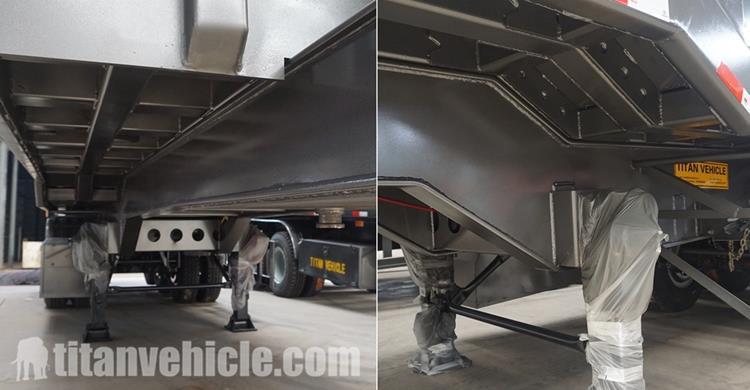

Details of Semi Tipper Trailer for SaleDetails of Semi Tipper Trailer for Sale

5. Why does the gear pump have the phenomenon of "beating teeth"

Sometimes when the power take-off takes off the power, the gear pump makes a rapid "click, click...", which is mostly caused by insufficient oil intake of the oil pump. This phenomenon occurs in the new car, which may be caused by the oil pump inlet pipe being too thin or the oil inlet pipe being deflated.

The oil inlet pipe should be thickened and the oil inlet pipe with high strength and hardness (with steel wire in the oil pipe) should be used; It may be that the oil inlet pipe is aging and collapsed, or the filter screen of the oil outlet of the oil storage tank is blocked, causing the oil to enter the oil well.

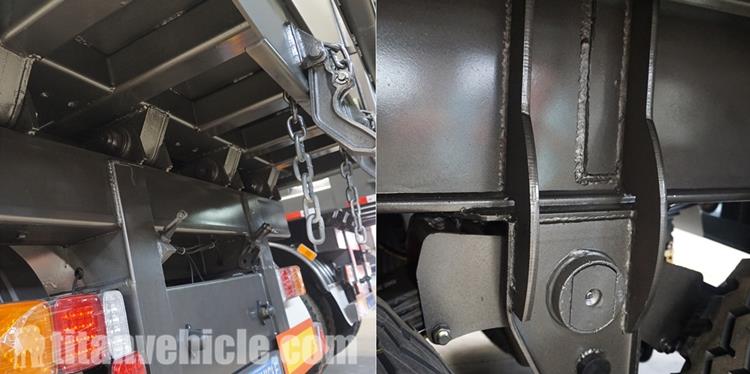

Hydraulic Semi Trailer Tipper for SaleHydraulic Semi Trailer Tipper for Sale



You can download video, you can learn about different types of semi tipper trailers, such as u shape dump semi trailer, side tilted dumper trailer, container tipper trailer, tipping chassis trailer.

And the process, testing, packaging and customer feedback, etc.

Tipper Trailers Video

This kind of semi trailer was designed with lots of advantages and features. If you want to get more information, please don't hesitate to make contact with us.
