Wind Turbine Transport Vehicles Trailer, in this design structure, the turbine blades are fixed on the adapter. The special thing about this trailer is that the adapter is customized for the blade.
In this design structure, the turbine blades are fixed on the adapter. The special thing about this trailer is that the adapter is customized for the blade.
This means that it is unlikely to be used for other functions. If you only need to transport wind turbine blades, then it is the trailer you need.

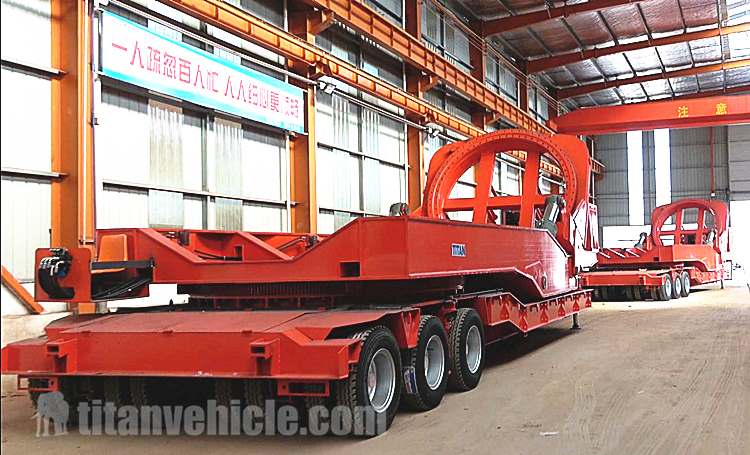

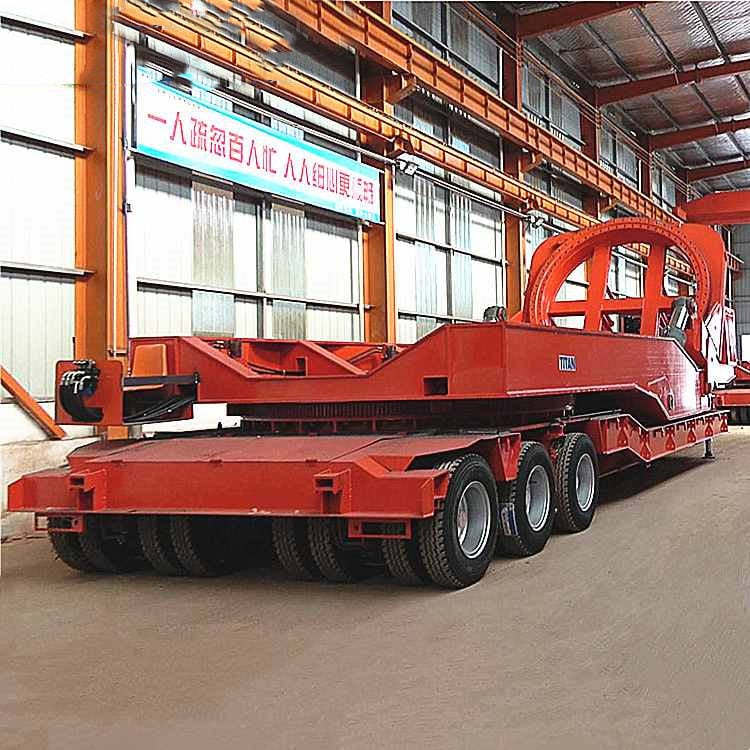

Brand: TITAN Adapter trailer for 80m wind turbine blade transportation
Dimension: 16250mm*3700mm*5000mm
Loading capacity: 23.5 Tons
Axle: 3 lines 6 axles
Max rotation angle: 360°
Hydraulic station: 40KW Four-cylinder Diesel Engine

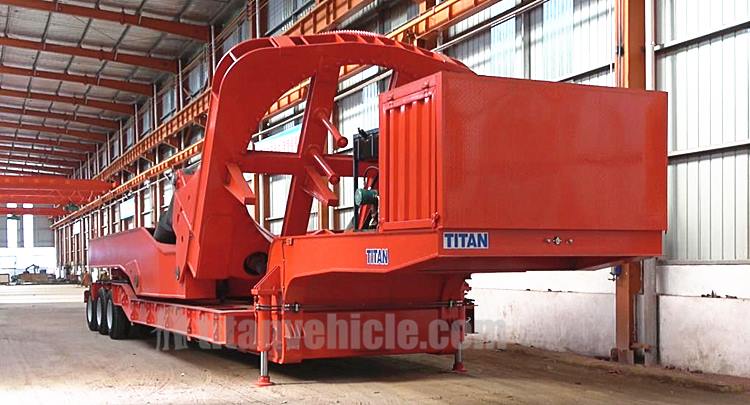

Tail: Slewing support cylinder with tooling at the tail (horizontally telescopic); with pusher
Transportable wind blade specification: 121-155 model

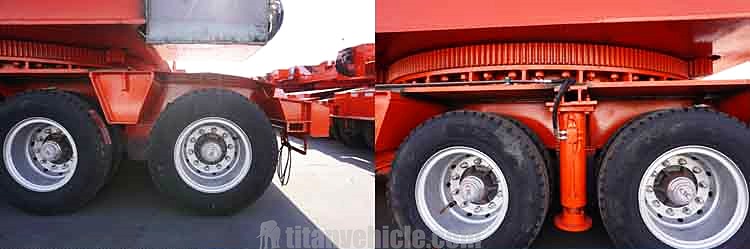

Diameter of lifting cylinder: 320mm; four-axis tire 8.25R16
1. These type of trailers are used to transport turbine blades on mountain roads and curved roads as well.
2. Because of the fact that extendable trailers are too long, when it comes to a mountain road, it is hard to steer hence the need for the special blade trailer.
3. The design is made in such a way that the blade adaptor can lift up and down making it easier for the trailer to steer easily.

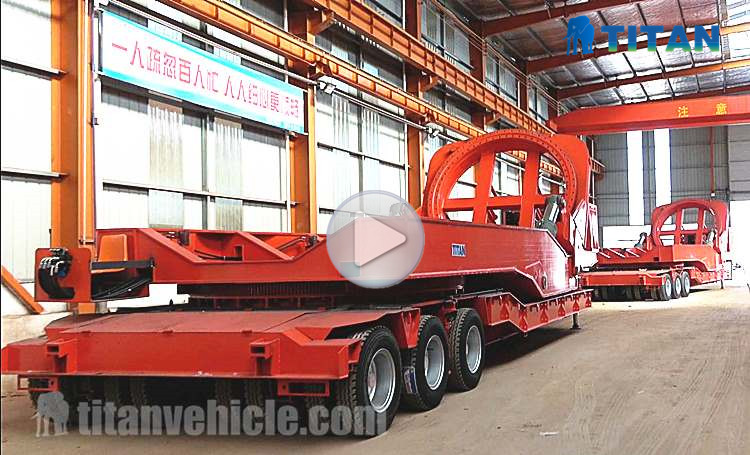

Through this video, you can learn more details about 3 line 6 axle wind turbine transport vehicles , wind turbine blade transport trailer , wind turbine trailer, etc.
If you want to know more types of wind blade trailers, please click here "Wind Blade Trailer" to watch the video!
Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
