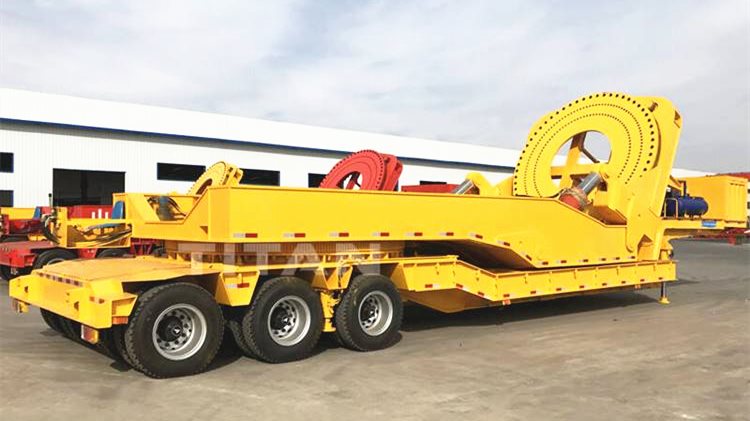

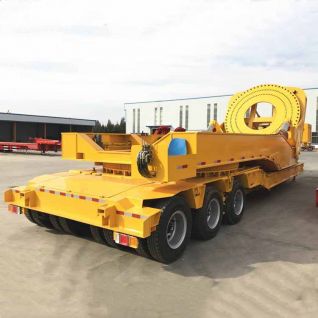

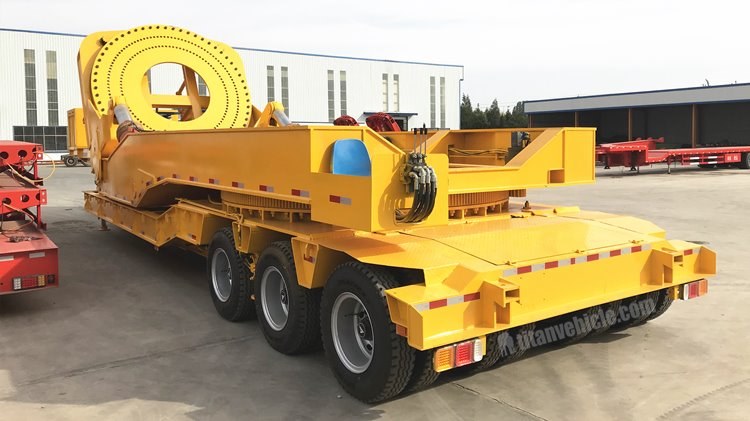

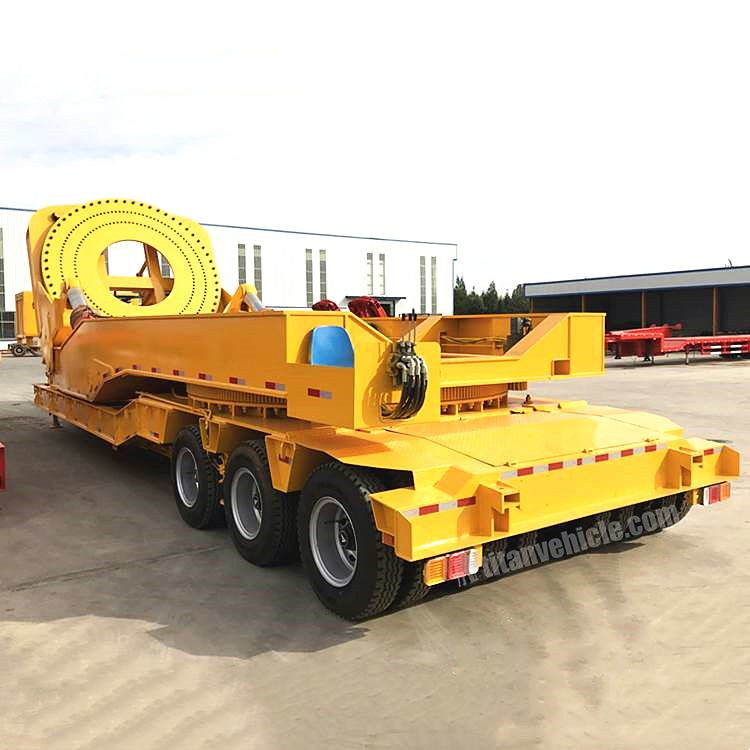

3 Line 6 Axle Wind Turbine Transportation Trailer

3 Line 6 Axle Wind Turbine Transportation Trailer Product Description:

The wind turbine transportation trailer uses hydraulic devices to control the wind turbine blades. During transportation, the wind turbine blades can raise, swing, and rotate themselves, avoiding various obstacles such as trees, mountains, and wires on the way, effectively solving the wind turbine blades in mountainous areas.

Specification:

Brand: TITAN Adapter trailer for 80m wind turbine blade transportation

Dimension: 16250mm*3700mm*5000mm

Loading capacity: 23.5 Tons

Axle: 3 lines 6 axles

Max rotation angle: 360°

Hydraulic station: 40KW Four-cylinder Diesel Engine

Tail: Slewing support cylinder with tooling at the tail (horizontally telescopic); with pusher

Transportable wind blade specification:121-155 model

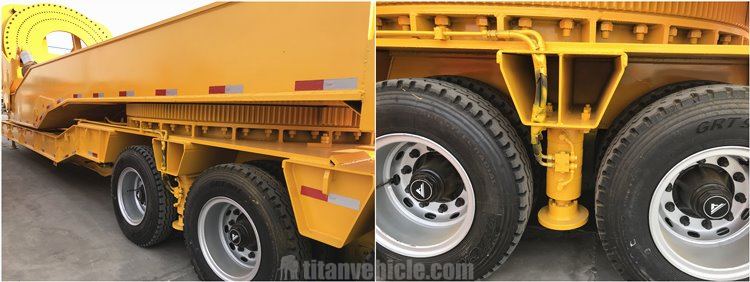

Diameter of lifting cylinder: 320mm; four-axis tire 8.25R16

Advantage:

1. These type of trailers are used to transport turbine blades on mountain roads and curved roads as well.

2. Because of the fact that extendable trailers are too long, when it comes to a mountain road, it is hard to steer hence the need for the special blade trailer.

3. The design is made in such a way that the blade adaptor can lift up and down making it easier for the trailer to steer easily.

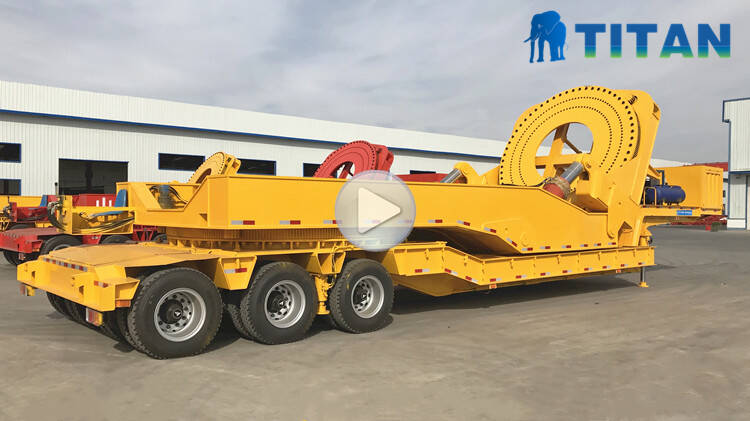

Through this video, you can learn more details about 3 line 6 axle wind turbine transportation trailer , wind turbine blade transport trailer , wind turbine blade trailer, etc.

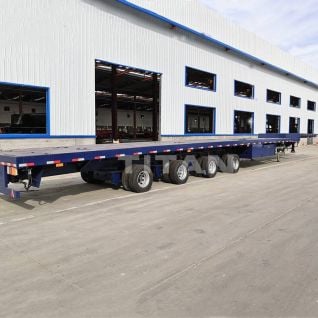

If you want to know more types of wind blade trailers, please click here "Wind Blade Trailer" to watch the video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
