Wind Turbine Tower Transport Trailer
Wind Turbine Tower Transport Trailer

Wind Turbine Tower Transport Trailer

61530 USD

This wind turbine tower transport trailer mainly consists of 2 parts, including the blade adapter and the semi trailer. This wind turbine tower transport trailer can transport very large storage tanks with a diameter of more than 5 meters.

SKU: Wind Turbine Tower Transport Trailer
GTIN: 6975766110727
MPN: TITAN9432035
Brand: TITAN

Wind Turbine Tower Transport Trailer:

Recently, clean energy sources such as wind power have become increasingly popular around the world. The field of windmill construction is also booming. TITAN mainly provides customers with wind power transportation equipment, including wind turbine tower transport trailer, wind blade trailer, windmill blade adapter, etc.. TITAN aims to provide a variety of safe and reliable transportation solutions for the wind power industry.

 The length of the wind turbine tower transport trailer can be customized according to the needs of customers. This wind turbine tower transport trailer is equipped with a steering axle. The steering axle can be either ordinary hydraulic steering or modular lifting steering.

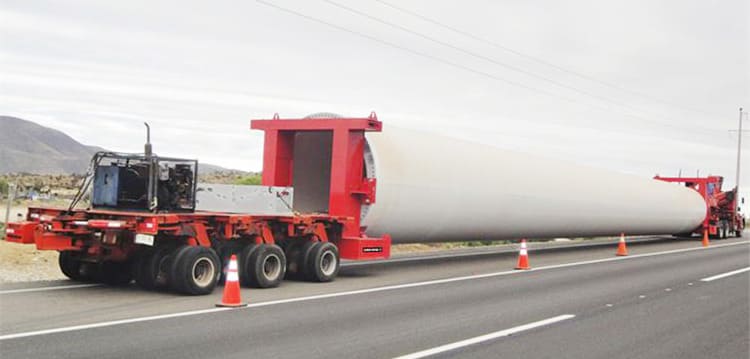

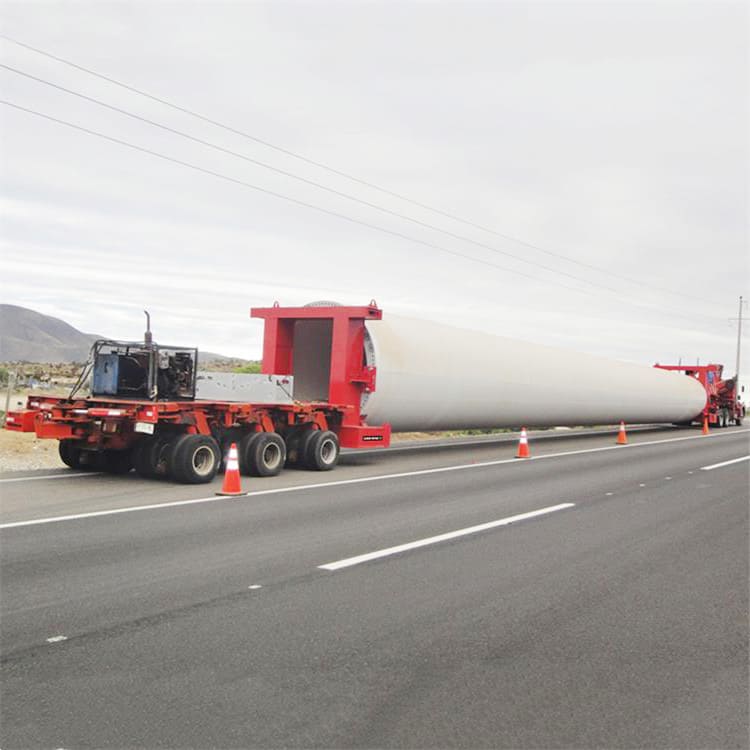

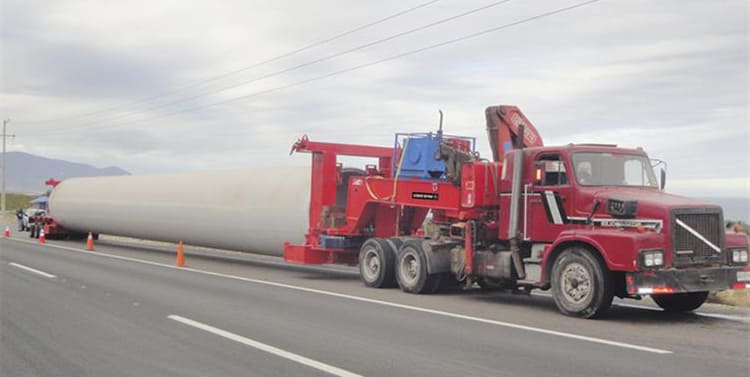

Wind Turbine Tower Transport Trailer | Transporting Wind Turbine Towers

Wind Turbine Tower Transport Trailer | Transporting Wind Turbine Towers

Wind Turbine Tower Transport Trailer | Transporting Wind Turbine Towers

Wind Turbine Tower Transport Trailer | Transporting Wind Turbine Towers

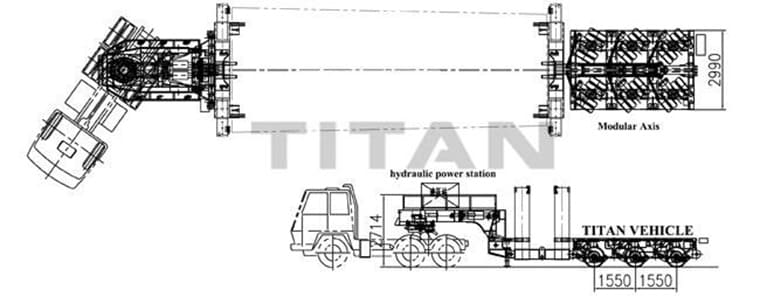

Wind Turbine Tower Transport Trailer Specification

Brand: TITAN Wind Turbine Tower Transport Trailer

Platform: With radian for different diameters tank bodies

Gooseneck: Normal or hydraulic lifting gooseneck optional

Axles: 3 axle, hydraulic steering optional

Power station: for controlling the hydraulic systems

Braking system: Double air chamber, brake valve; ABS optional

Electrical: LED light, 7 ways,24V

Painting: Blasting and clean rust,1 coat of prime painting, 2 coats of finish paint

Platform weight: 15Tons

Tire: 9.00R20*24Pcs

Axle distance: 1500mm

Loaded speed: 20km/h

Deadweight: 27000kg

Bogie distance: 580/1760mm

Tire specification: 215/75R17.5

Rim specification: 6.00 (with reinforced rim)

Steering system: Hydro-Mechanical steering

Suspension: Hydraulic suspension with three supports

Max. turn radius: 12410mm inside/ 43245mm outside



Wind Turbine Tower Transport Trailer | Transporting Wind Turbine Towers

Wind Turbine Tower Transport Trailer | Transporting Wind Turbine Towers





Please click "TITAN Wind Blade Trailer" to get detailed video!



Review

Mr.Collen from Vietnam - 2022-09-27T10:09:57+0800
I can't believe I got such a great wind turbine tower transport trailer for such a low price, the TITAN semi-trailer is very good and highly recommended.
