TITAN wind blade trailer 4 axle 50m is mainly designed for carrying the wind blades on the road. The obvious advantage is the stability of this wind blade trailer, becaus of using high strength steel material.
The TITAN wind blade trailer 4 axle 50m is designed primarily to carry wind blades, while the wind blade trailer is also perfectly suited for hauling windmill turbine blades from 45m to 80m long and longer bulky cargo.
It is worth noticing that the manufacturing process of the wind blade trailer. TITAN wind blade trailers are distinguished by their highly sturdy frame and the excellent stability of the expansion beams. High standard workmanship and welding process ensure easy adjustment of telescopic beams.
TITAN wind blade trailers are perfectly suited for hauling windmill turbine blades from 45m to 80m. High standard workmanship and welding process ensure easy adjustment of telescopic beams.
Wind Blade Trailer 4 Axle 50M for Sale in Vietnam
Wind Blade Trailer 4 Axle 50M for Sale in Vietnam
Wind Blade Trailer 4 Axle 50M for Sale in Vietnam
Wind Blade Trailer 4 Axle 50M for Sale in Vietnam
Brand: TITAN Wind Blade Trailer 4 Axle 50M
Dimension: 22,450mmX3120mmX 1580mm
Total length: 61,000mm after extension
Braking system: WABCO emergency valve
King pin: 3.5 inch high tensile steel bolted type
Landing gear: JOST C200
Loading capacity: 90 Ton
Hydraulic power station: Diesel engine
Axle: 4 axle
Suspension: Hydraulic suspension
Tyre: 16 units, Triangle brand

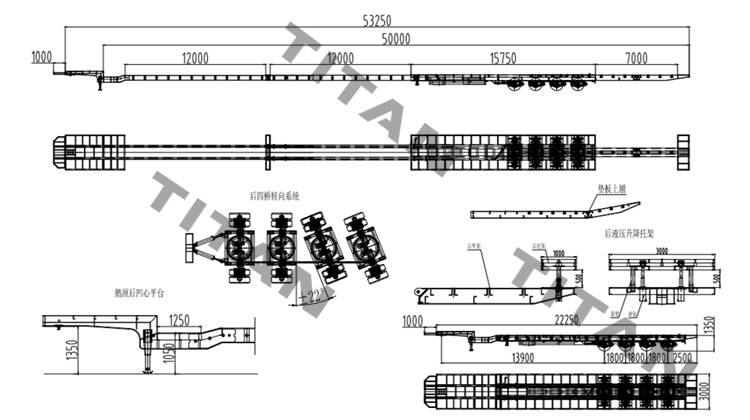

Drawing of Wind Blade Trailer 4 Axle 50M
1. The length of the wind blade trailer 4 axle 50m can be extended to 50m front and rear, and it is used to transport special wind blades on the road. Its loading capacity can reach an astonishing 90 tons.
2. This wind blade trailer is characterized by a highly sturdy frame and stable extension beams.
3. The suspensions that Titan can provide you installed on the wind blade trailer are: mechanical spring suspension, air suspension or hydraulic suspension.
Wind Blade Trailer Display Video:
