Tri axle grain trailers for sale is used throughout the grain and harvesting industry to load and transport grains across the country. These grain transport trailer can be used for several different things, and you may want to use one of these trailers even if you do not work in the agricultural industry.

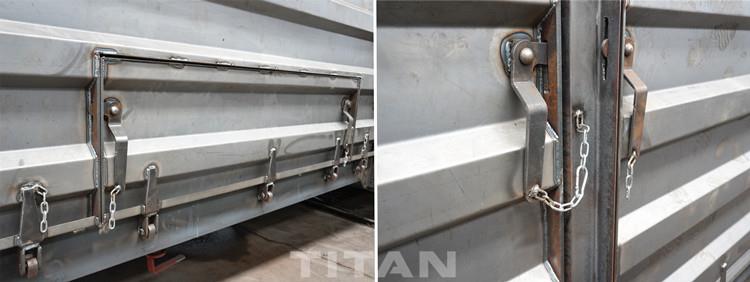

The small door of the triaxle with board trailer facilitates the loading and unloading of grain. You can close the door at any time if you are only supposed to deliver a certain amount, and you can lock the hatch in place.

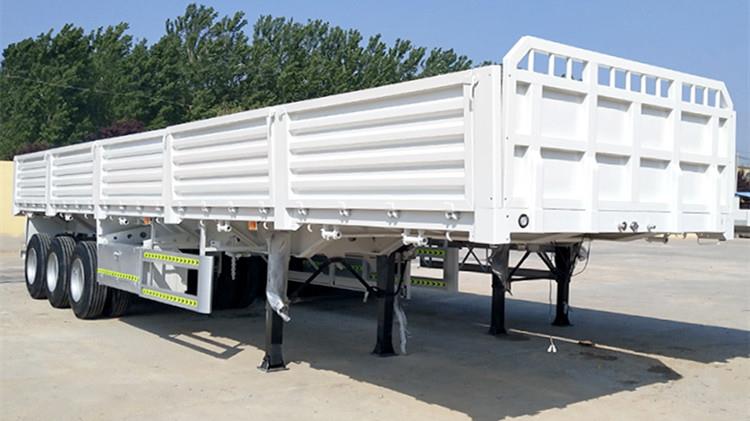

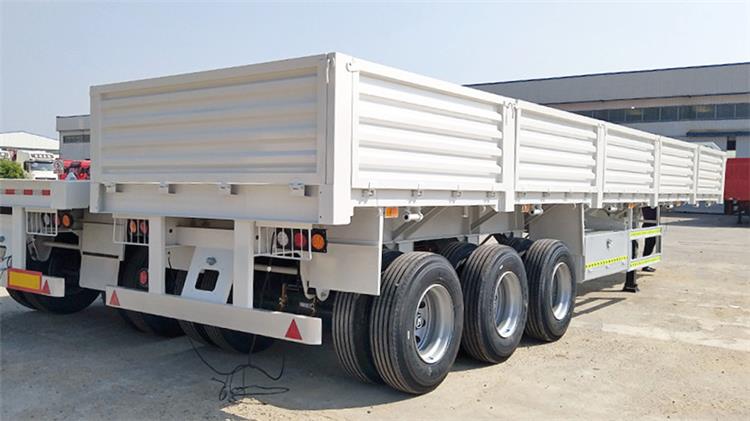

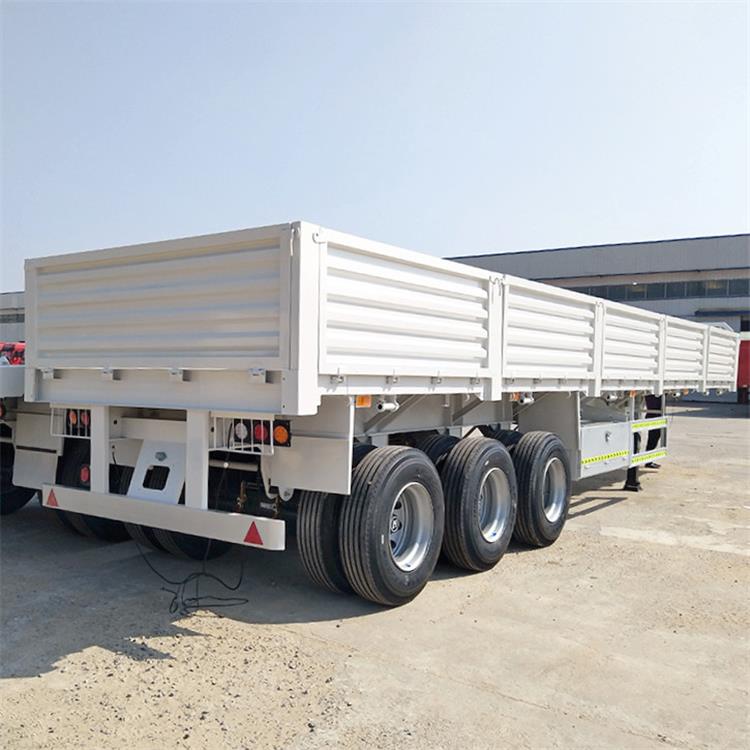

Triaxle with Board | Tri Axle Grain Transport Trailer for Sale
Triaxle with Board | Tri Axle Grain Transport Trailer for Sale
Tare Weight: About 7.6T

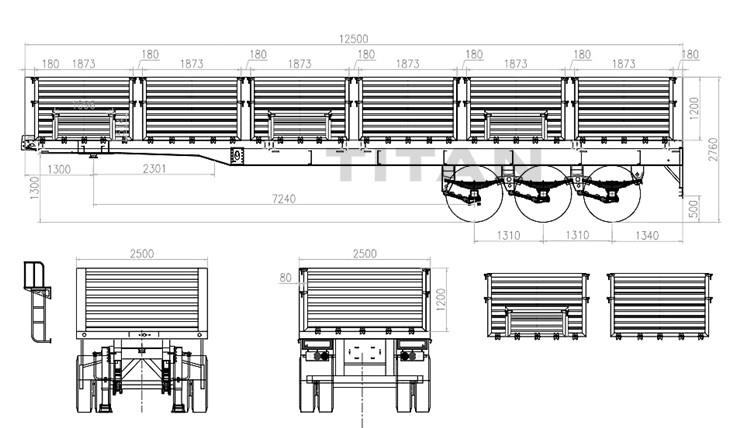

Dimension(mm): 12500x2500x2760mm
Trailer Sides: 1200mm
Loading capacity(ton): ≤60T
Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

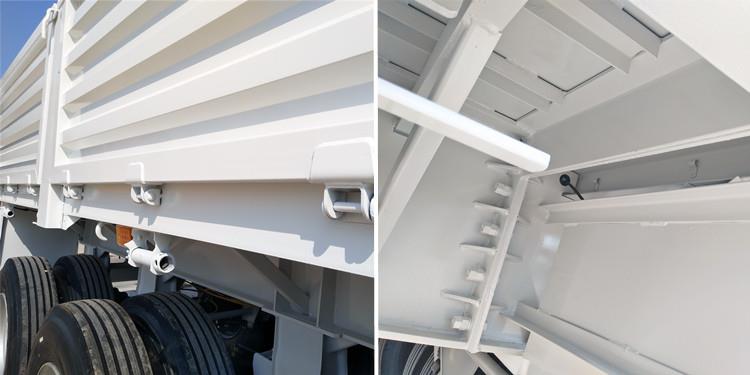

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Bottom Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
1. The main beam should pay attention to whether the thickness is an international standard. The international standard for the main beam of a tri axle grain trailers for sale is 14/8/16 mm. The steel plate in the middle of the beam is made of Q345B manganese steel, the thickness is 8mm. Many unreliable suppliers will use 6mm main beam to save costs. But the carrying capacity was reduced by 26%.
The international standard thickness of the middle part of the beam must be 8mm.
2. Bottom floor, many tri axle grain trailers for sale are also used to transport bulk cargo and other items. The bottom plate of the grain transport trailer passes the international standard 3mm thick checkered plate. If it is replaced with a 2mm thick pattern plate or a 2.5mm bottom plate. Cost can be reduced by $ 700.

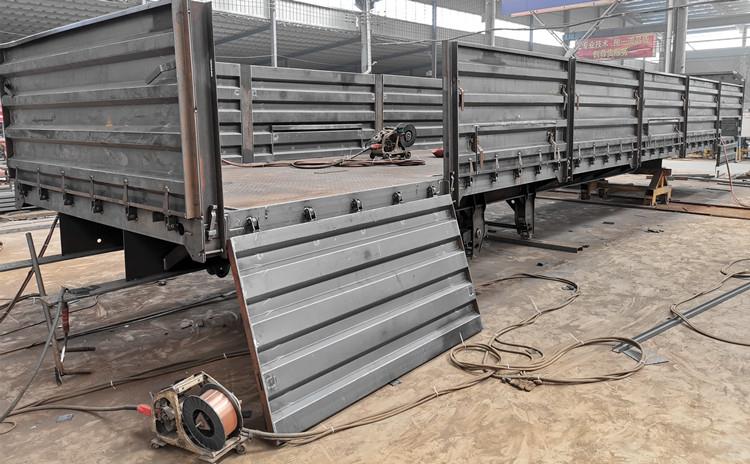

3. Side door. The common height of side door is 600mm, 800mm, 1000mm. The side door adopts vertical corrugated structure. The door frame is a 40x60mm rectangular steel tube.
Many customers use container shipment, which has low transportation cost and short transportation time. But the bad thing is that the rear of the grain transport trailer needs to be composed.

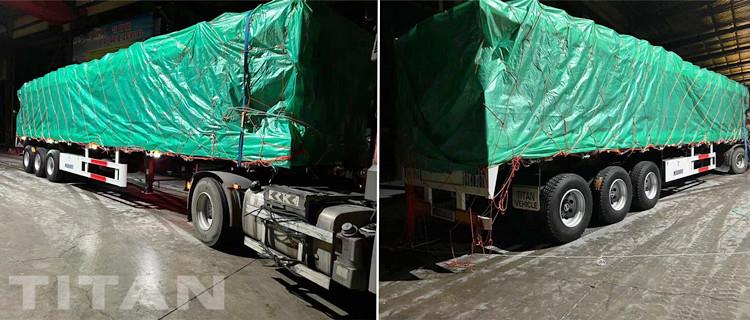

Some customers are bulk freighter or ro-ro ships. Tri axle grain trailers for sale will spray wax and cover the tarpaulin when the triaxle with board trailer use bulk freighter.
