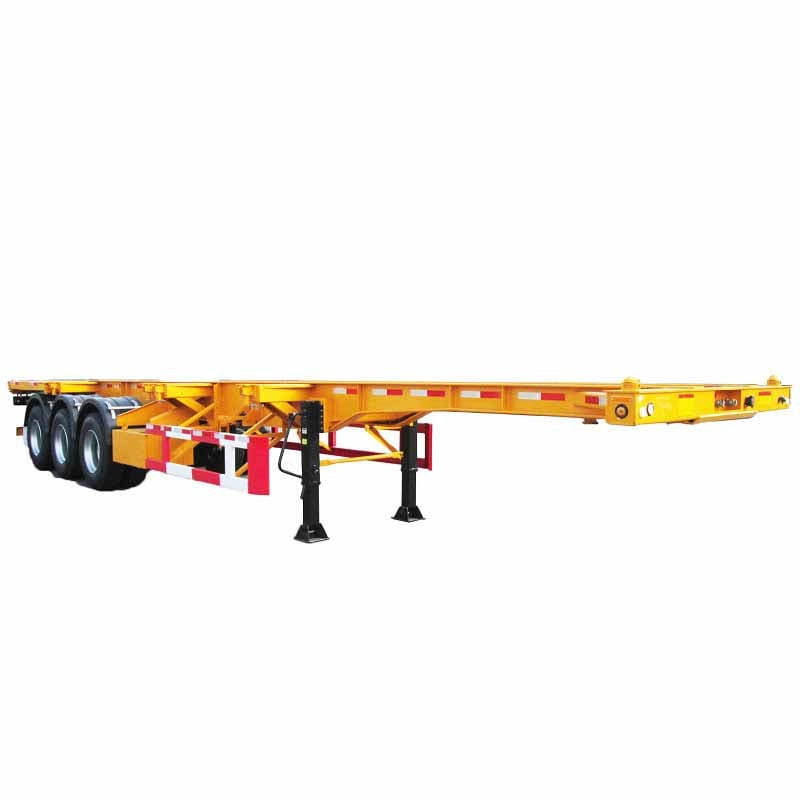

Tri Axle Skeletal Trailer for Sale
Tri Axle Skeletal Trailer for Sale

Tri Axle Skeletal Trailer for Sale

6700 USD

Different Parameters, Different Price. Price Reference Only.



Tri Axle Skeletal Trailer for Sale is specially designed to carry various cargo containers. You can choose to use your road trailer to transport one 20/40/45ft container, or two 20 foot containers at one time.

SKU: Tri Axle Skeletal Trailer for Sale
GTIN: 6975766113919
MPN: TITAN9401015
Brand: TITAN

Tri axle skeletal trailer Product description:

Tri Axle Skeletal Trailer for Sale is specially designed to carry various cargo containers. You can choose to use your road trailer to transport one 20/40/45ft container, or two 20 foot containers at one time. The only difference that your choice makes is the number of locks required for specific transportation applications.

The 40 Foot Tri Axle Chassis main beam is a welded structure that has been sent through submerged arc welding process. The whole bodywork is shot-peened to receive an anti-corrosive cost.

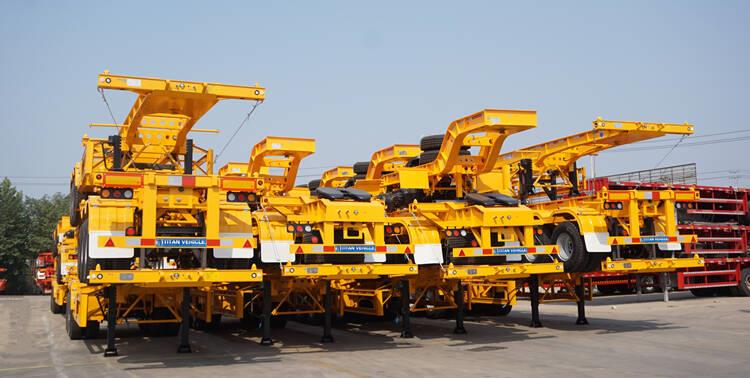

Tri Axle Skeletal Trailer for Sale

Tri Axle Skeletal Trailer for Sale in Nigeria

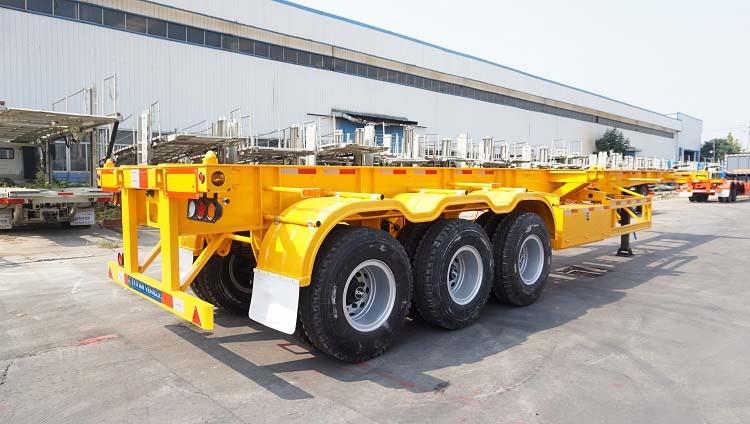

Tri Axle Skeletal Trailer for Sale



Tri axle skeletal trailer Specifications:

Dimension(mm): 12400x2500x1500mm

Loading capacity(ton): ≤60T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand

Tire: 13 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension or Air suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Shipping Terms: Transported by the bulk carrier in an RORO or 40ft container
