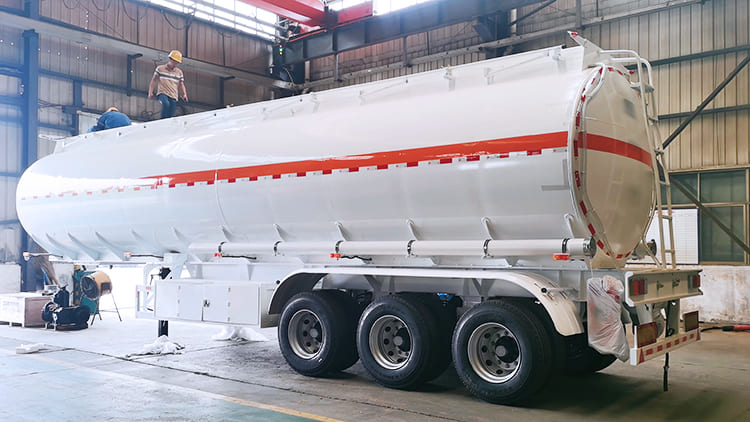

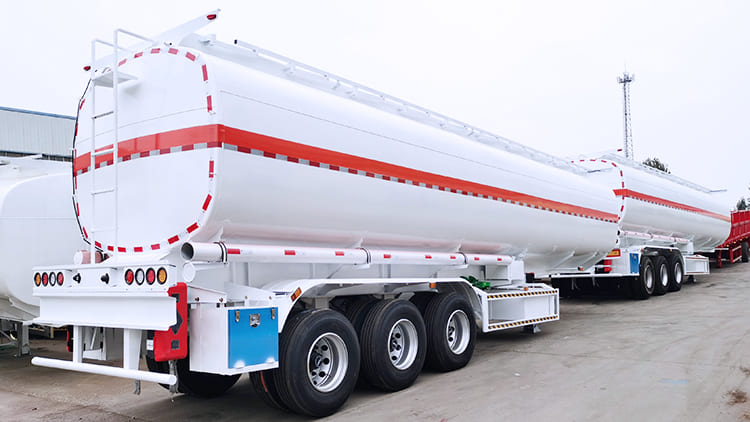

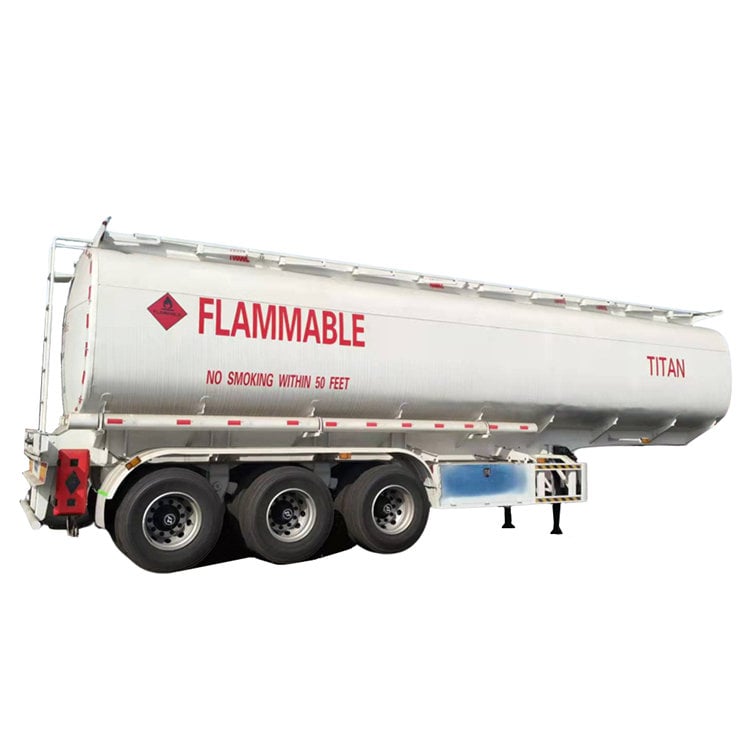

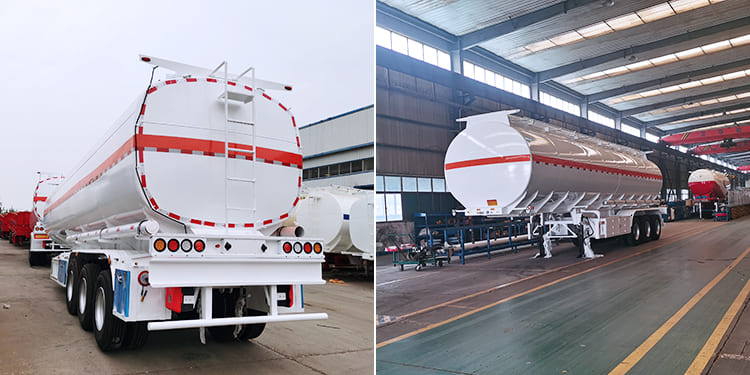

Tri Axle 45000 Liters Semi Fuel Tank Truck Trailer

Product Description:

Tri Axle 45000 Liters Semi Fuel Tank Truck Trailer's most important part is its tank body. Most of the materials are welded with low-carbon steel material. There are vertical and horizontal baffles all around. The interior is equipped with a baffle, and when the capacity is not large, the interior is a single chamber; if there is a lot of oil to be loaded, the entire tank needs to be divided into several independent single compartments with baffles. It can be divided into 2-7 comparments.

Specification：

Overall dimension：11500mm * 2500mm *3700mm

Transport： fuel, petrol, oil

Tank body material: carbon steel

Axles：3 axles

Suspension： Heavy duty mechanical suspension

Tire：12 units

Discharging Pipe : 2 pcs, 6m/each

King pin：90#

Landing gear： JOST

Brake system: WABCO

Electrical system: 24V, LED lights

Advantage:

1. The tank body is automatically welded by an advanced large-scale special welding machine.

2. With safety devices: the manhole is an explosion-proof large cover. The bottom outlet of the tank is equipped with an emergency shut-off valve.

3. The TITAN tanker body is longitudinally welded. Ensure the safety of the tanker and increase the service life.

4. Water filled test equipment Water tank: To ensure the high sealed of tank body and avoid the leaks oil.

6. The waved board reduces the impact of the liquid on the tanker.

7. Advanced paint system and polyurethane paint. Appearance is beautiful, use time is above 5 years.

8. We adopt famous brand parts for our tank trailer, it saves costs & ensures long-time service.

Through this video, you can learn about different types of fuel tanker trailers, as well as the process, testing, packaging and customer feedback, etc.

Please click " TITAN Fuel Tanker Trailer" to get detailed videos!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
