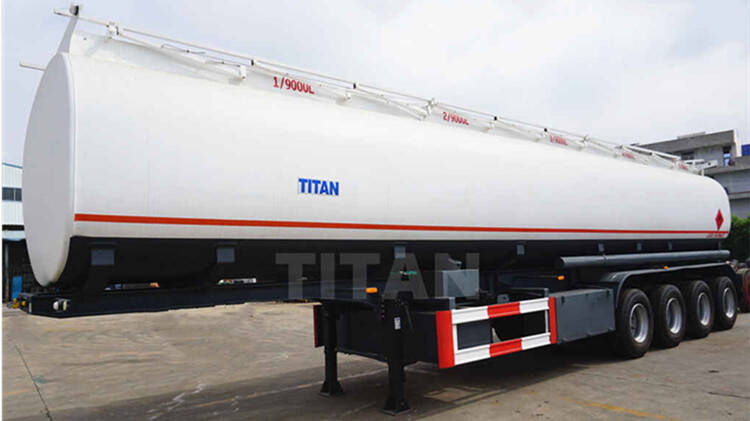

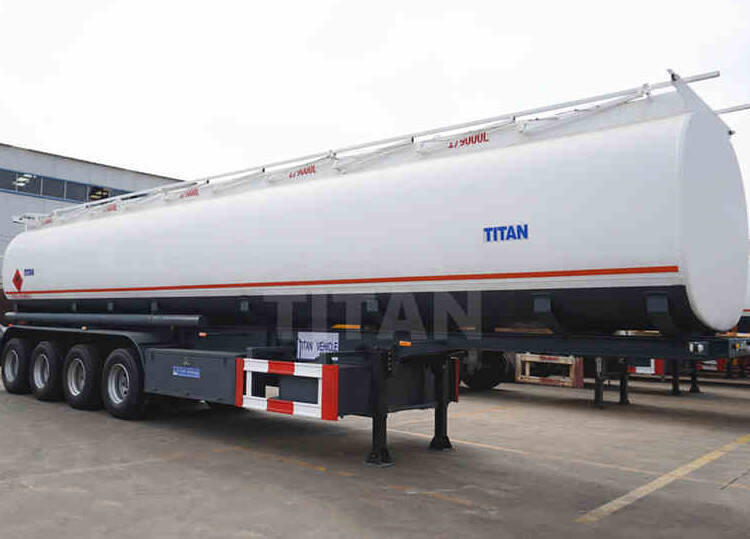

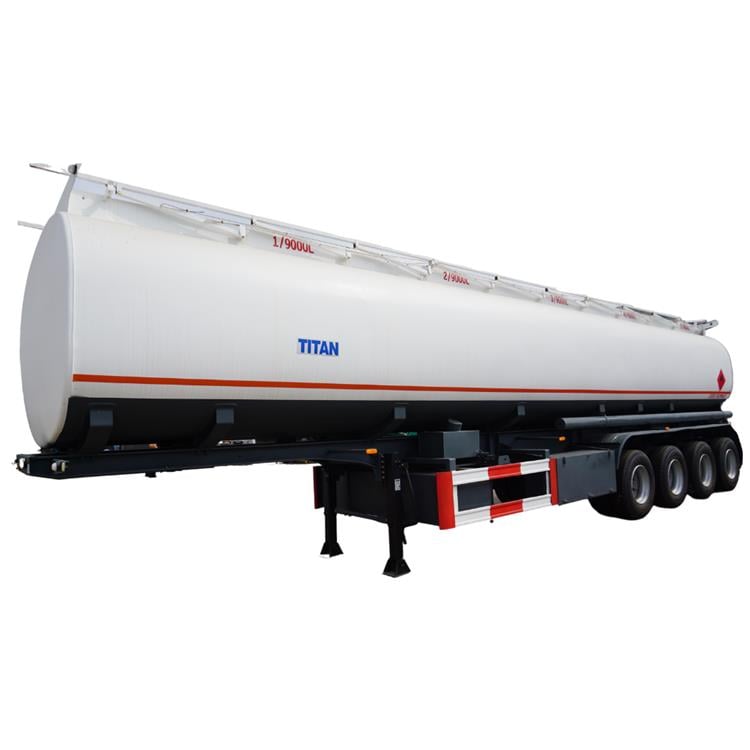

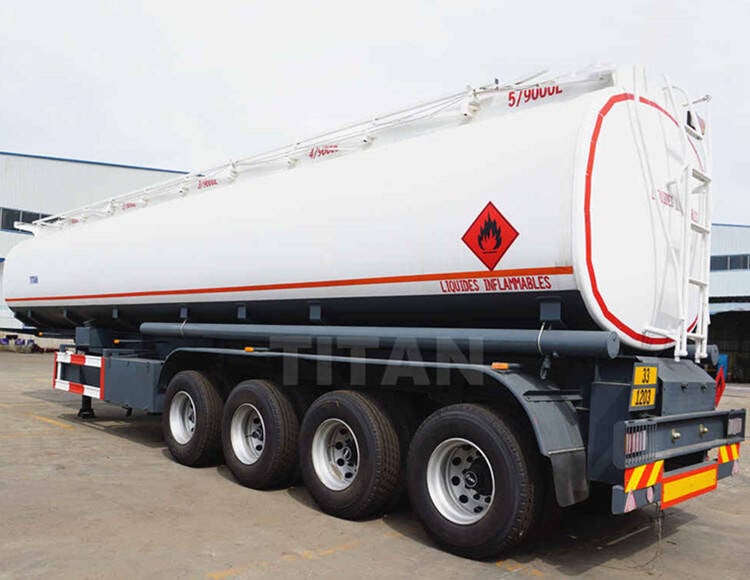

4 Axle 50000 Liter Fuel Tanker Trailer
4 Axle 50000 Liter Fuel Tanker Trailer

4 Axle 50000 Liter Fuel Tanker Trailer

14000 USD

TITAN's fuel tanker truck has the best design. Because of the road conditions, we have used the most suitable tires, which have good shock absorption and ensure driving safety. They are very suitable for export to Africa.

SKU: TITAN9408260
GTIN: 6975766116460
MPN: TITAN9408260
Brand: TITAN

Product Description:

The design of the fuel tanker truck is very excellent. Because of the road conditions, we use the most suitable tires, which have a good shock absorption effect and ensure driving safety and comfort. The fuel tanker is a kind of vehicle for transporting liquid and gas fuels on the road. of motor vehicles. It is mainly used for the transportation and storage of petroleum derivatives such as gasoline, diesel oil, crude oil, lubricating oil and coal tar. Generally, the capacity is relatively large, and it is divided into thermal insulation or non-thermal insulation, pressure-resistant or non-pressure-resistant.

Titan uses Q345 high strength steel to produce the fuel tank trailer,which is the best material to fuel tank trailer, the thickness is 5 mm,and we use more advanced longitudinal welding technology to reduce the weld seam and make the tank stronger.



4 axle 50000 liters fuel tanker truck trailers for sale

4 axle 50000 liters fuel tanker truck trailers for sale



4 axle 50000 liters fuel tanker truck trailers for sale

4 axle 50000 liters fuel tanker truck trailers for sale



4 axle 50000 liters fuel tanker truck trailers for sale

4 axle 50000 liters fuel tanker truck trailers for sale



Specification:

Shape: Round

Dimension: 11500mm * 2500mm *3700mm

Tare Weight (semi trailer): About 8000-12800kg

Total volume(m³): 25-60m³

Tank Body Material: 5mm or 6mm/Q235 carbon steel

End plate: 5mm or 6mm/Q235 carbon steel

Manhole Cover: Carton steel

Bottom Valve: Aluminum  API Pneumatic Bottom Valve

Discharging Valve: Diameter is 3 or 4 inch

Compartments: Optional

Discharging Pipe: 4 inch rubber hose,2pcs,6m/each

Cat Walk: With (common model or special design)

Main beams: Welded design or special design I beam, connected by bolts and nuts Q345 carbon steel material

Axle: 4 axles,12T/13T/16T,BPW/ FUWA/ TITAN brand

Landing Gear: JOST(D200T) or China brand 28T

Kingpin: JOST 2.0 or 3.5 inch bolt-in king pin

Suspension: Air Suspension

Leaf Spring: 90(w)mmx13(thickness)x10layers or 10mm x12mmx12 layers

Rim: 9.00-22.5/8.00-20/8.5-20 Chinese brand

Tire: 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand can be optional

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.

Accessories: One standard tool box

Shipping Terms: By bulk cargo, RORO or 40HQ containers



Advantage:

1. With safety devices: the manhole is an explosion-proof large cover. The bottom outlet of the tank is equipped with an emergency shut-off valve.

2. The tank body is automatically welded by an advanced large-scale special welding machine.

3. The TITAN tanker body is longitudinally welded. Ensure the safety of the tanker and increase the service life.

4. Water filled test equipment Water tank: To ensure the high sealed of tank body and avoid the leaks oil.

5.There are ladders at the front and rear of the vehicle, and there are guardrails and anti-skid plates above the walking platform to ensure the safety of the staff.



Through this video, you can learn about different types of fuel tanker trailers, as well as the process, testing, packaging and customer feedback, etc.

TITAN fuel tanker trailer

Please click "TITAN Fuel Tanker Trailer" to get detailed videos!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
