Side Tipper Trailer

Side Tipper Trailer Description:

Side tipper trailer is another type of dump truck, and it allows goods to be unloaded from the side. The main types of cargo transported by this semi-trailer are building materials, such as stone, sand, etc.

The quality of the side tipper trailer is very important to the safety of driving. Therefore, when buying a vehicle, do not try to be cheap. Pay more attention to the structure of the product, workmanship and the quality of parts, so as to choose a more durable trailer.

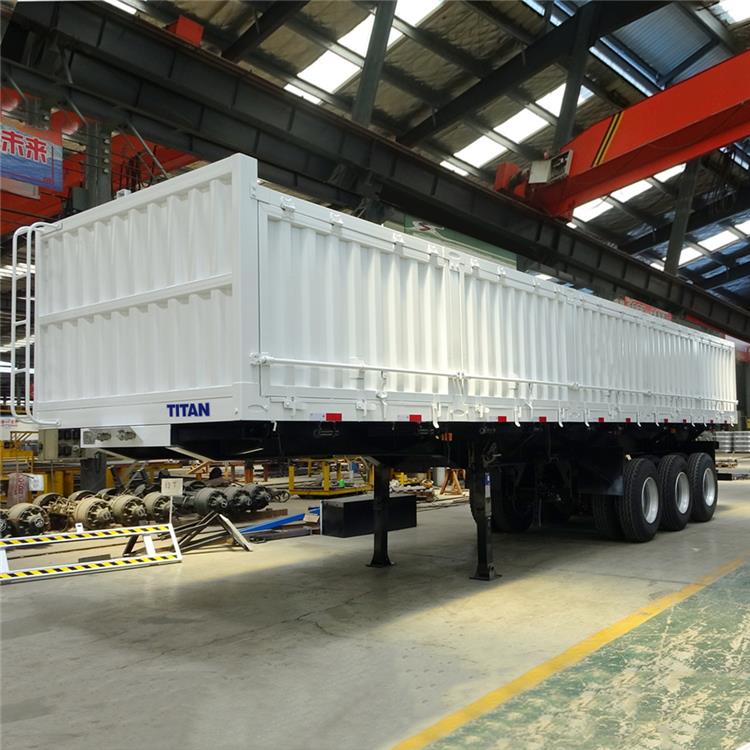

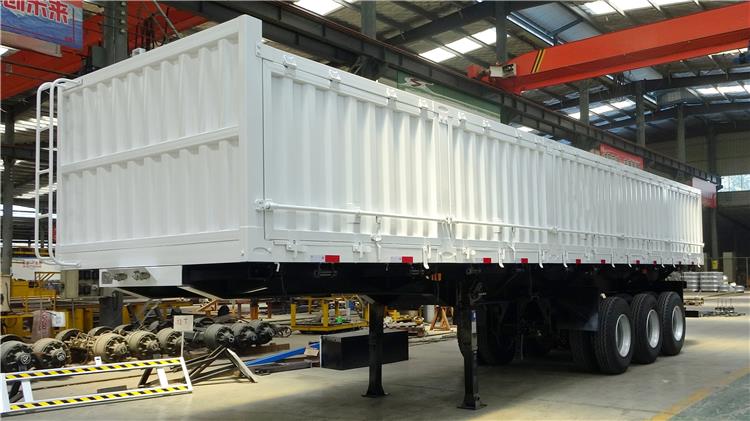

Tri Axle 40 Ton Side Tipper Trailer for Sale In Congo - Cheap Side Tipper Trailers

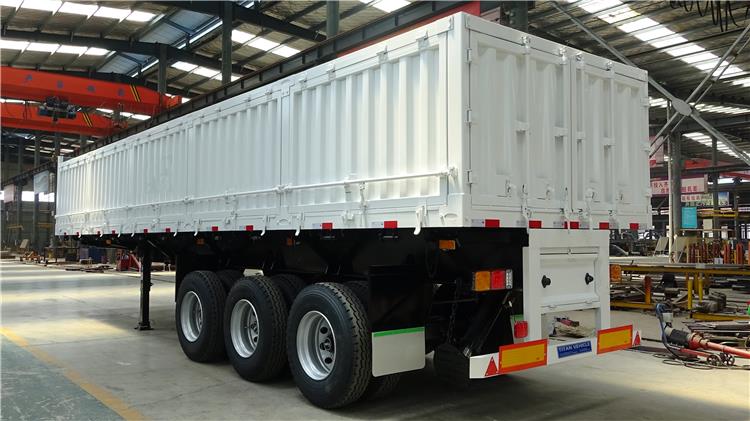

Tri Axle 40 Ton Side Tipper Trailer for Sale In Congo - Cheap Side Tipper Trailers

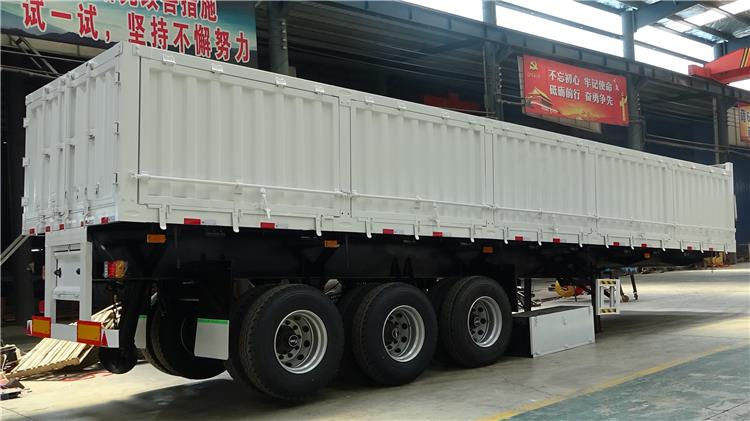

Tri Axle 40 Ton Side Tipper Trailer for Sale In Congo - Cheap Side Tipper Trailers

Specification:

Dimension: 11000mmx2500mmx3200mm

Lifting System: Lifting cylinder 5x130 bore, a shift cylinder

Axle: 3 axle 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20 or 9.00-20

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 16mm, Material: T700 steel.

ABS: Optional

Valve: WABCO valve

Light: LED light (especially intended for overseas markets)

Voltage: 24V

Accessories: One standard tool box, one rocker handle, one Shaft wrench

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of topcoats.

Through these videos, you can learn about different types of tipper semi trailer, as well as the process, testing, packaging and customer feedback, etc.

Please click " TITAN Tipper Semi Trailer" to get detailed videos!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
