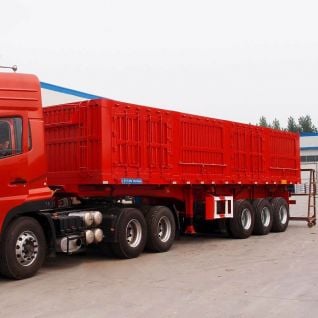

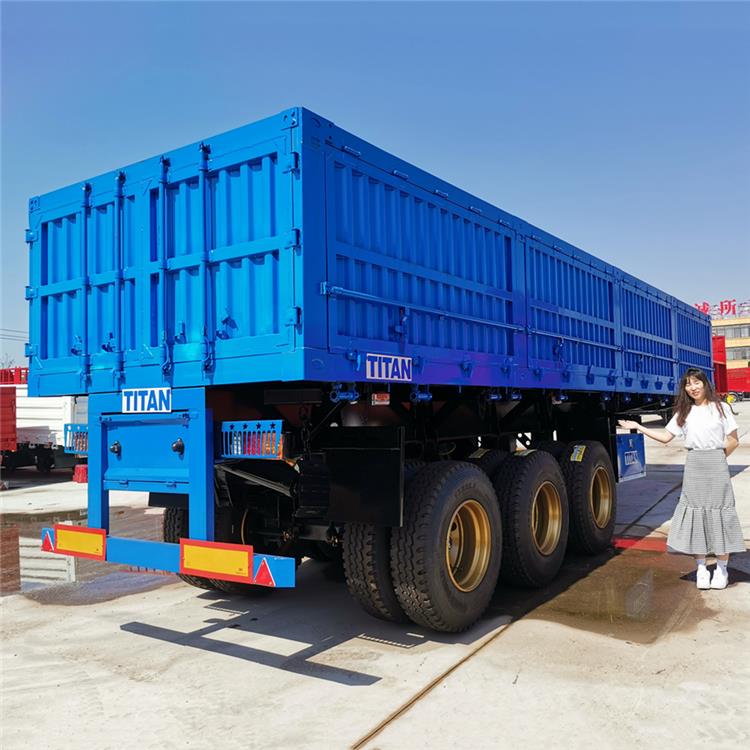

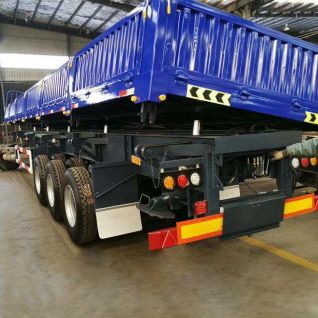

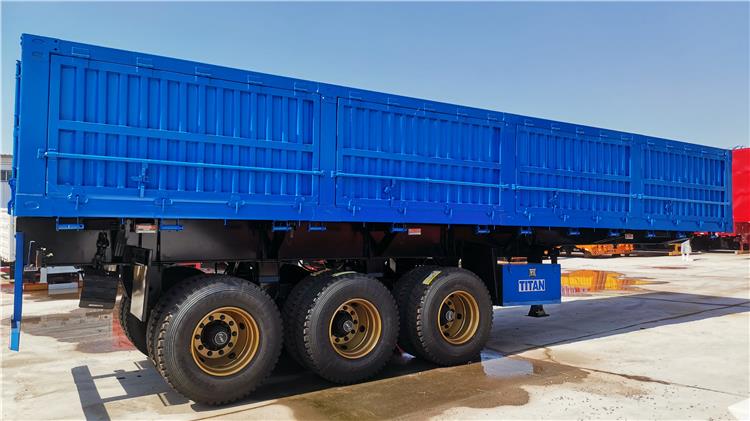

3 Axle Dropside Side Tipper Trailer

Video of Dropside Side Tipper Trailer for Sale





Product description:

Tipper semi trailer can be used in many other fields such as construction, agriculture, etc. They have different shapes and types, which are divided into Side Dump Trailer and rear tipping trailer. you can use side dump trailer to help save space. The load capacity of the side dump trailer may be greater than that of the rear tractor tipper trailer.

Side Dump Trailer for sale suitable for large workplaces, Side Tipper Trailer maximum carrying capacity can reach 80-100tons. Dropside side tipper trailer for sale is another type of dump truck, and it allows goods to be unloaded from the side. The main types of cargo transported by this semi-trailer are building materials, such as stone, sand, etc.

3 Axle Dropside Side Tipper Trailer for Sale In Kenya - Jiji Trailer

34 Ton Dropside Side Tipper Trailer with Best Price

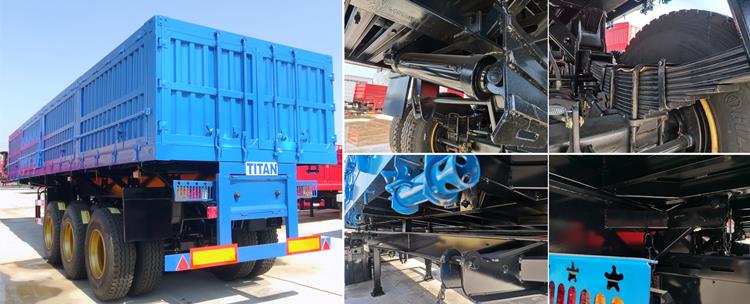

Details of Tri Axle Side Tipper Trailer

Specification:

Dimension: 11000mmx2500mmx3200mm

Lifting System: Lifting cylinder 5x130 bore, a shift cylinder

Axle: 3 axle 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20 or 9.00-20

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 16mm, Material: T700 steel.

ABS: Optional

Valve: WABCO valve

Light: LED light (especially intended for overseas markets)

Voltage: 24V

Accessories: One standard tool box, one rocker handle, one Shaft wrench

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of topcoats.

Please click " TITAN Tipper Semi Trailer" to get detailed videos!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
