Tower Blade Trailers for Sale

Tower Blade Trailers for Sale：

TITAN Designed tower blade trailers for sale is made of high-strength steel hg60. Makes this tower blade trailers for sale very strong and not easy to deform.

TITAN can provide a variety of transportation solutions for a wide range of power industries. Titan also produces tower blade trailers for sale, windmill blade trailer, wind blade trailer, wind blade adapter.

This tower blade trailer has no length transportation restrictions, and this tower blade trailer can be customized according to customer needs

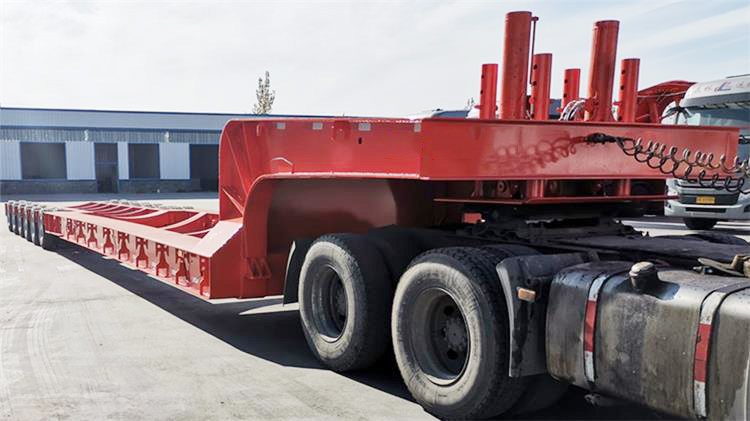

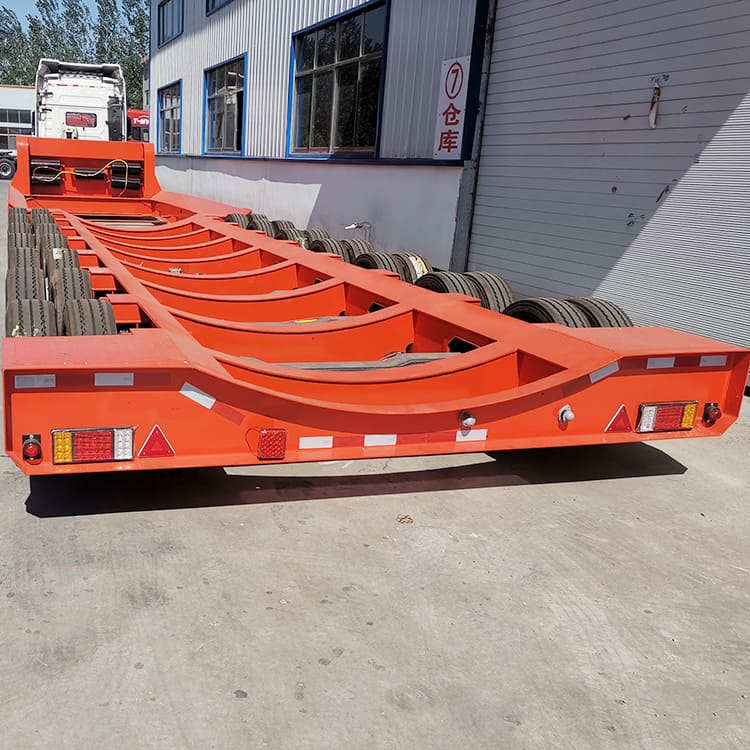

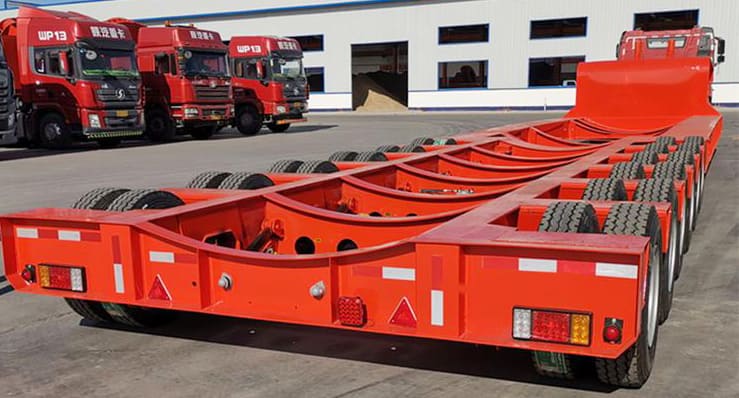

Tower Blade Trailers for Sale in Kazakhstan

Tower Blade Trailers for Sale in Kazakhstan

Tower Blade Trailers for Sale Specification：

Gooseneck: Normal or hydraulic lifting gooseneck optional

Axles: 6 axle, hydraulic steering optional

Power station: for controlling the hydraulic systems

Braking system: Double air chamber, brake valve; ABS optional

Electrical: LED light, 7 ways,24V

Painting: Blasting and clean rust,1 coat of prime painting, 2 coats of finish paint

Platform weight: 15Tons

Tire: 9.00R20*

Loaded speed: 20km/h

Deadweight: 27000kg

Max. turn radius: 12410mm inside/ 43245mm outside

Axle distance: 1500mm

Bogie distance: 580/1760mm

Tire specification: 215/75R17.5

Rim specification: 6.00 (with reinforced rim)

Steering system: Hydro-Mechanical steering

Suspension: Hydraulic suspension with three supports

Brake system: Dual-line circuit

TITAN Tower Blade Trailers for Sale Advantage:

1. The shape of this tower blade trailers for sale is a curved platform low bed trailer. .Width and length can be customized according to different needs of customers.

2.The platform height can be made very low. 350mm-900mm from the ground.

3.The axles of this tower blade trailers for sale can be normal or steered, and the modular hydraulic lift bed trailer is optional.

Please click "TITAN Wind Blade Trailer" to get detailed video!
