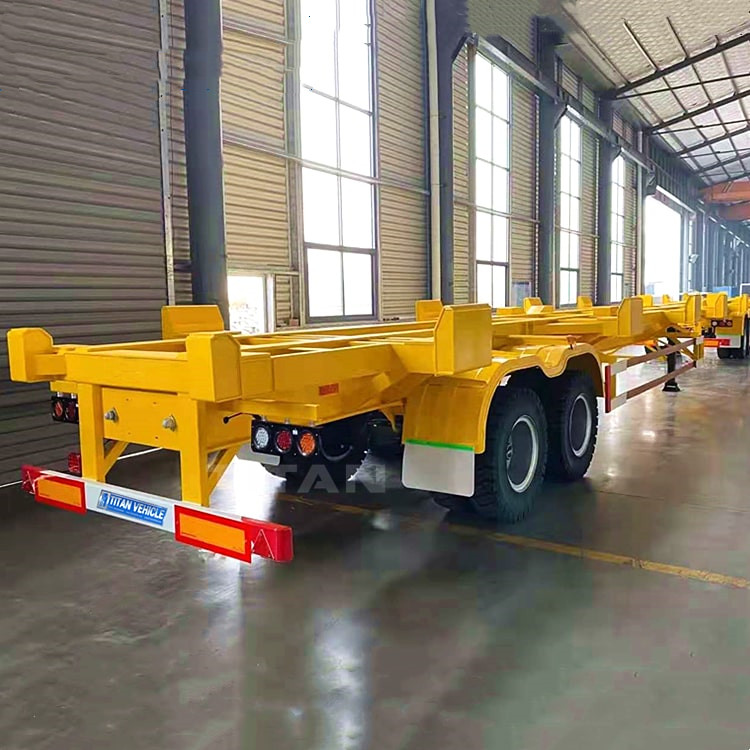

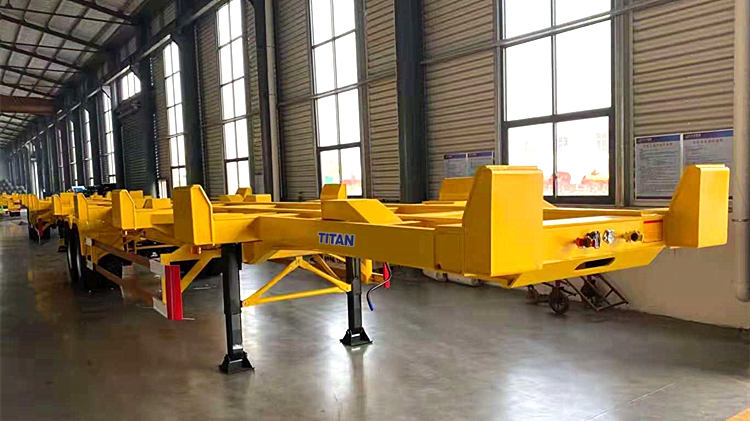

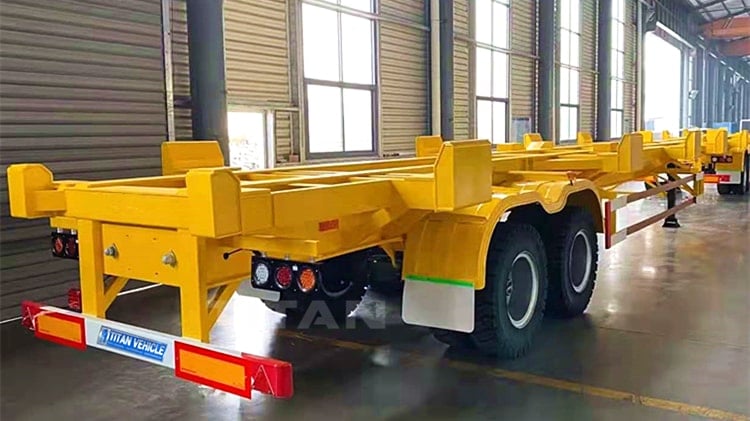

Terminal port trailers are used for safe transportation of containers at ports and terminals. Transportation is made safe with the help of the trailer’s gravity pop-up system, that secures containers during transportation. They are generally produced for the transport of 50-70 ton loads, though they can be adapted according to our customers’ requirements, so that you receive a customized solution that best fits your needs. Terminal trailers with 50-60 ton capacity are manufactured as one axle trailers, while terminal trailers with 65-70 ton capacity are manufactured as two axle trailers, with either spring or rocker arm suspension.
Dimension(mm): 12400x2500x1500mm
Loading capacity(ton): ≤60T

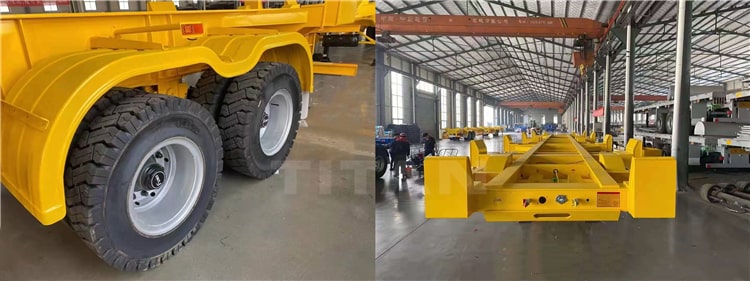

Axles: 2 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand
Tire: 8 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension or Air suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Shipping Terms: Transported by the bulk carrier in an RORO or 40ft container
