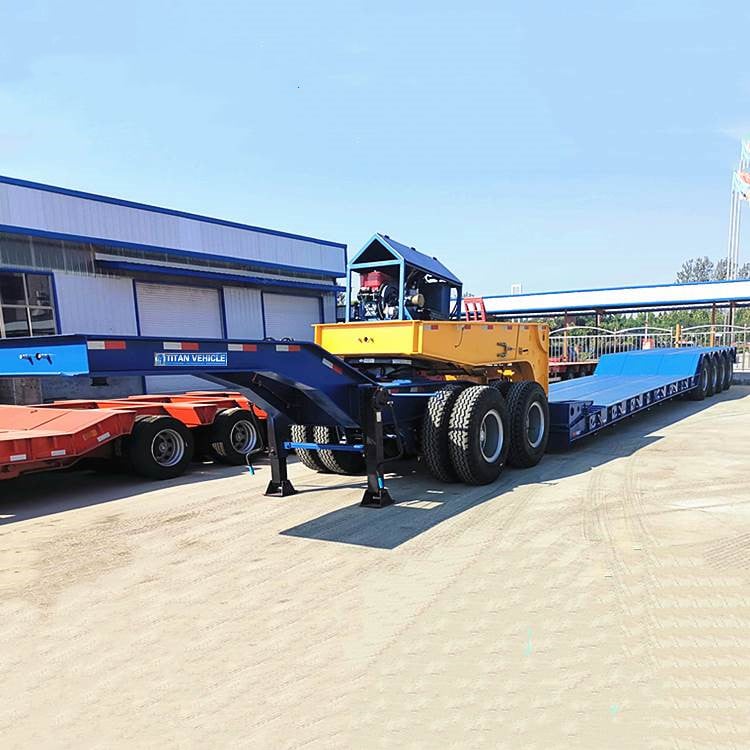

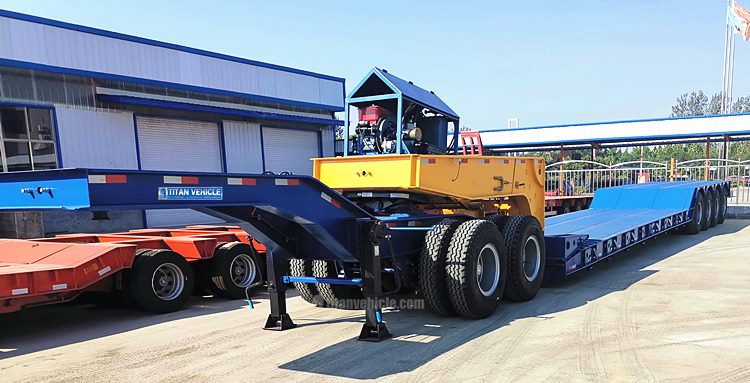

150 Ton Lowboy Equipment Trailer with Dolly

150 Ton Lowboy Equipment Trailer with Dolly Product Description:

Lowboy Equipment Trailer is convenient for heavy loads transportation. There are many kinds of lowboy equipment trailers TITAN can make, such as 2/3/4 axle 60/80/120/150ton lowboy trailers. Gooseneck is an important part of the lowboy equipment trailers.

The gooseneck part is composed of a traction pin, a lifting hydraulic cylinder, a pin shaft connected with the cargo platform, an eccentric block for fixing the position of the gooseneck, and a gooseneck. The gooseneck part is connected to the cargo platform by articulation, and a pair of lifting hydraulic cylinders are installed between the gooseneck and the cargo platform, which are driven by the hydraulic cylinder to realize the raising and lowering of the cargo platform.

Specification:

Dimension: 17900mm * 2500+250*2mm *2200mm(platform 800mm)

Loading capacity(T): 50-150T

Axle: 4 axle withh 2 axle dolly; 13T/16T, FUWA / BPW / TITAN Brand

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension or air suspension

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Tare weight: About 9.5-19T

Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.

Bottom Platform: 5mm thick, checkered plate

Hydraulic cylinder: 12KW diesel engine with hydraulic station

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust

Through the video you can learn more about the 150ton lowboy equipment trailer , lowboy trailer manufacturers , lowboy heavy haul trailer etc.
