80Ton Hydraulic Gooseneck Trailer

80Ton Hydraulic Gooseneck Trailer Product Description:

Some models of hydraulic gooseneck trailer frame are equipped with a hydraulic motor to drive the coiling machine, which is full of chains and live wire ropes. When the construction machinery and mining machinery that it transports have a small climbing ability, the winding yard machine can be used for auxiliary traction to increase the loading speed.

80Ton Hydraulic Gooseneck Trailer for Sale in Zimbabwe

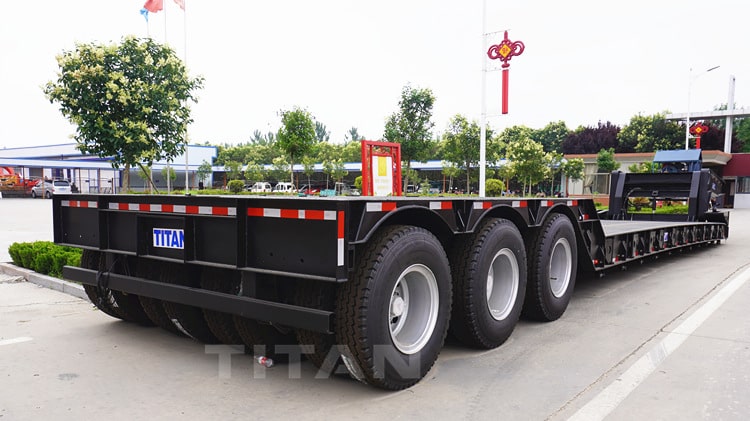

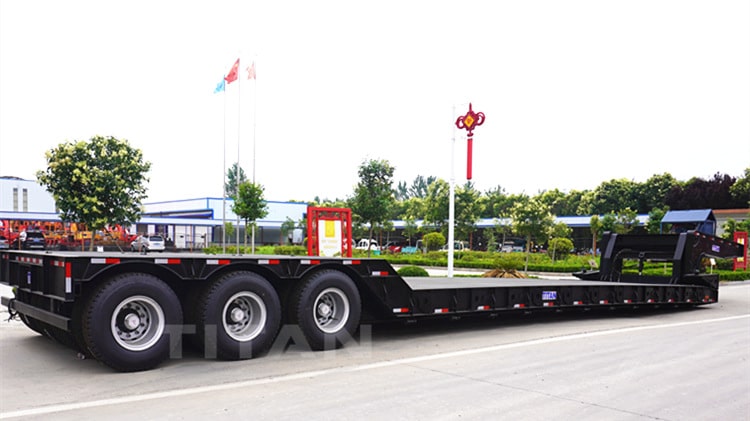

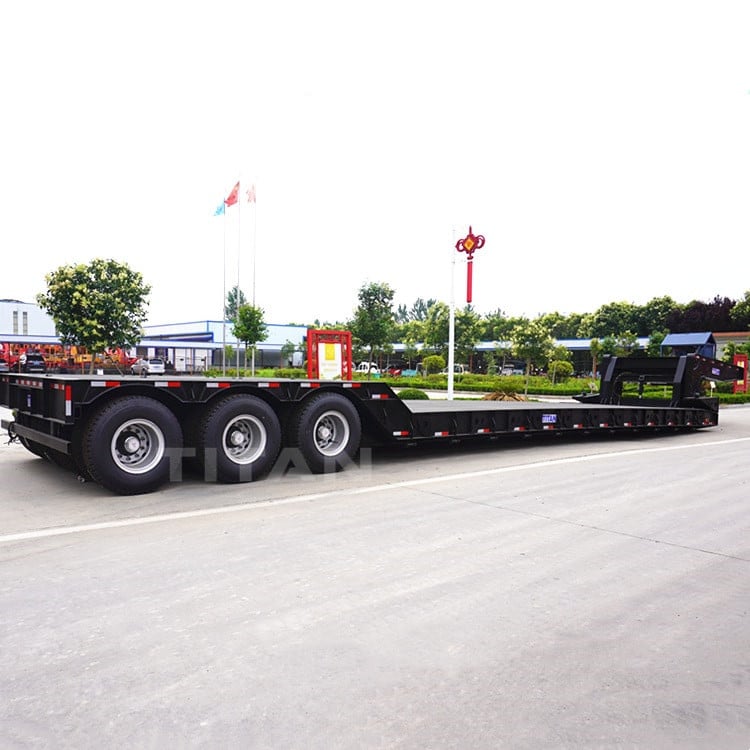

Hydraulic Detachable Gooseneck Trailer

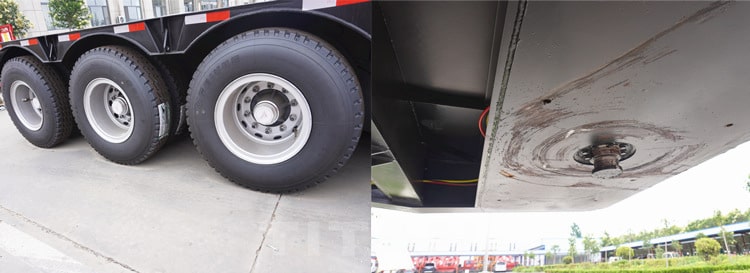

Hydraulic Detachable Gooseneck Trailer Details

Specification:

Dimension: 15800mm x 3000mm x 2500mm

Loading capacity(T): 50-150T

Axle: 3 axle

Tire: 12 units, 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension or air suspension

Spring leaf: 120(W)mmx16(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Tare weight: About 9.5-19T

Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.

Bottom Platform: 5mm thick, checkered plate

Hydraulic cylinder: 12KW diesel engine with hydraulic station

Ramp: spring or hydraulic type

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust

Through the video, you can know different types of hydraulic gooseneck trailer , hydraulic detachable gooseneck , 80ton hydraulic gooseneck trailer for sale.
