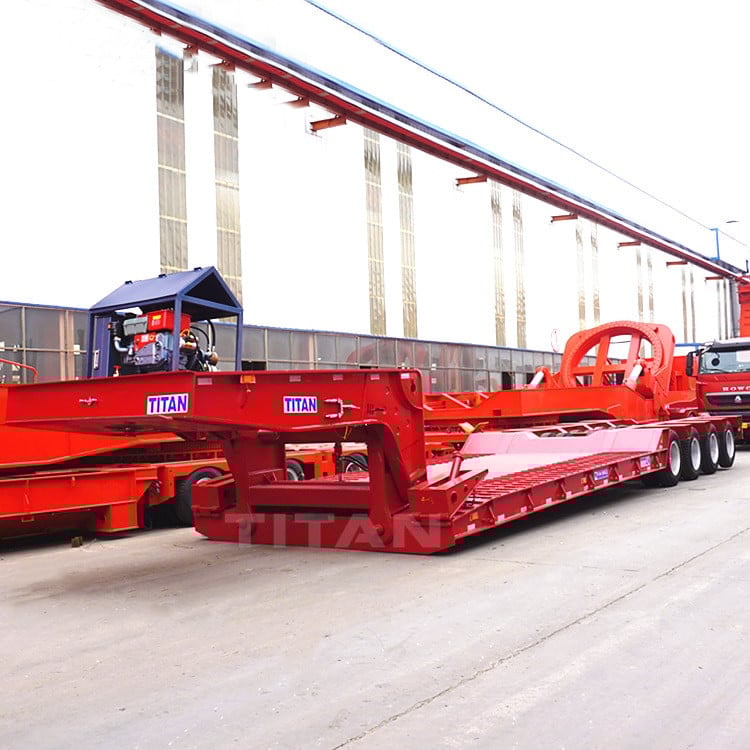

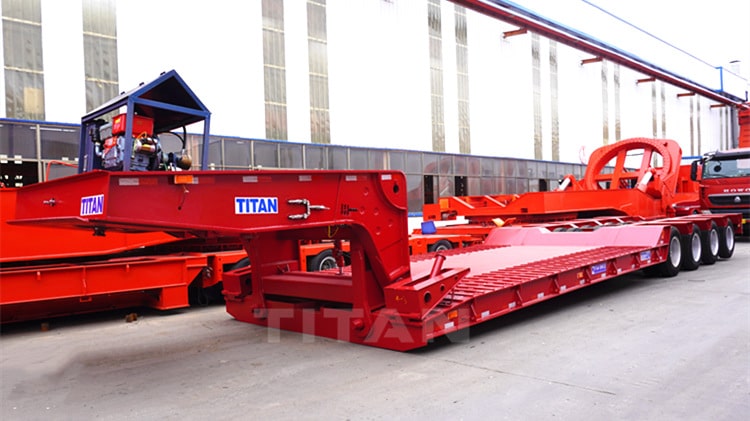

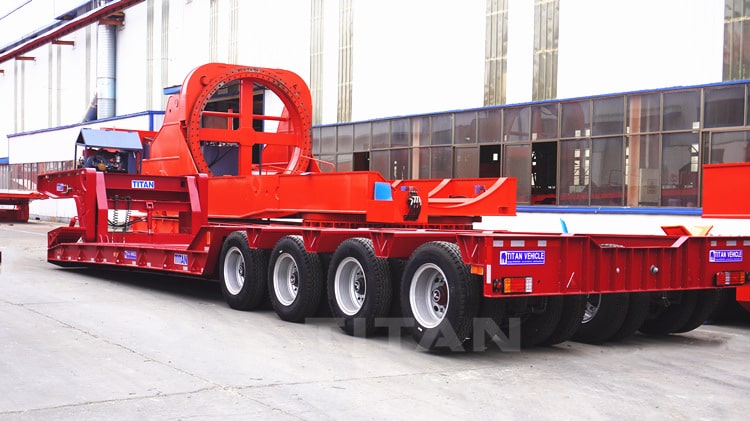

4 Line 8 Axle Hydraulic Detachable Gooseneck Trailer

4 Line 8 Axle Hydraulic Detachable Gooseneck Trailer Product Description:

Detachable gooseneck allows the front of the trailer to detach. After the front of the gooseneck has been detached, a large piece of equipment like a tractor or excavator can be driven directly onto the trailer. After the equipment is loaded, the gooseneck is reattached and the equipment can be secured in place. This simplifies the process of loading and unloading.

4 Line 8 Axle Hydraulic Detachable Gooseneck Trailer

Detacahble Gooseneck Trailer

Details of Hydraulic Detachable Gooseneck Trailer

Specification:

Dimension: 17000mm x 3000mm x 2500mm

Loading capacity(T): 50-150T

Axle: 4 line 8 axle

Tire: 32 units, 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension or air suspension

Spring leaf: 120(W)mmx16(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Tare weight: About 9.5-19T

Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.

Bottom Platform: 5mm thick, checkered plate

Hydraulic cylinder: 12KW diesel engine with hydraulic station

Ramp: spring or hydraulic type

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust

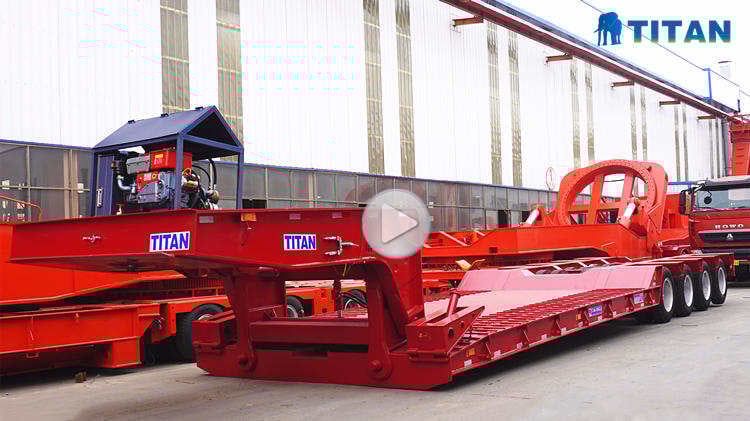

Through the video, you can know different types of hydraulic detachable gooseneck , detacahble gooseneck trailer , 4 line 8 axle hydraulic detachable gooseneck trailer for sale.

Please click "TITAN Removable Gooseneck Trailer" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
