Different Parameters, Different Price. Price Reference Only.
The gooseneck of the 3 line 6 axle detachable gooseneck trailer usually consists of four parts: the traction system, the force transmission system, the alignment adjustment system and the locking system.
The gooseneck of the detachable gooseneck trailer usually consists of four parts: the traction system, the force transmission system, the alignment adjustment system and the locking system. The locking methods of the detachable gooseneck and the front end of the detacahble gooseneck trailers include traction saddle locking, pin locking and cam locking, etc.; the horizontal alignment of the gooseneck and the front end of the semi-trailer includes pin alignment, guide groove alignment, and vertical alignment with mechanical adjustment, Winch adjustment, air pressure adjustment and hydraulic adjustment. Detachable gooseneck and semi-trailer The front-end load transfer methods mainly include hook, orifice and orange. There are two locking control methods: manual control and pneumatic control.
Dimension: 17000mm x 3000mm x 2500mm
Loading capacity(T): 50-150T
Axle: 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20 or 900*22.5
Tire: 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension or air suspension
Spring leaf: 120(W)mmx16(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Tare weight: About 9.5-19T
Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.
Bottom Platform: 5mm thick, checkered plate
Hydraulic cylinder: 12KW diesel engine with hydraulic station
Ramp: spring or hydraulic type
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust
Shipping terms: Transported by the bulk carrier in an RORO or 40HQ container

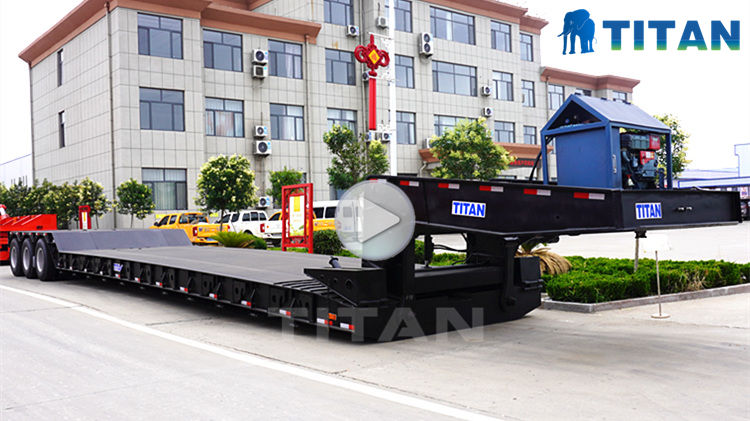

Through the video, you can know different types of detachable gooseneck trailer , 60/80ton detachable gooseneck trailer for sale , 3 axle detachable gooseneck trailer for sale in Tanzania , detachable trailer.
Please click "TITAN Removable Gooseneck Trailer" to get detailed video!
Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
