Different Parameters, Different Price. Price Reference Only.
TITAN Hydraulic 40 Cubic Heavy Duty Dump Trailers have different load capacities: 24 cubics, 30 cubics, 35 cubics, 45 cubics, We can customize the dump trailer according to your special need.
The Hydraulic 40 Cubic Heavy Duty Dump Trailers could bear the bad road conditions. We reinforce the sides with high tensile strengthening rip and the channel steel reinforced enclosure shape design.
The sides are welding molding which increasing the loading capacity. The Hydraulic 40 Cubic Heavy Duty Dump Trailers could be used for nearly 10 years. TITAN Hydraulic 40 Cubic Heavy Duty Dump Trailers has different load capacities: 24 cubics, 30 cubics, 35 cubics, 45 cubics, We can customize the dump trailer according to your special need.

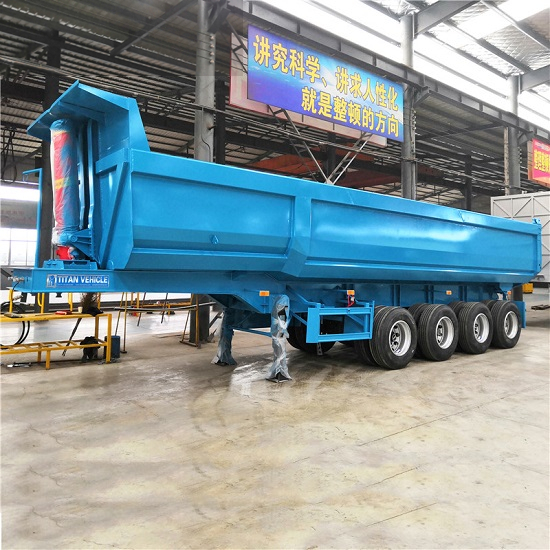

40 Cubic Heavy Duty Dump Trailers for Sale in Mauritius
4 axle Heavy Duty Dump Trailers for Sale
Dimension: 9300mmx2500mm x3700mm ( inside dimension )
Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.
Bottom Platform: 4 thick checkered plate
Side wall thickness: 4mm
Total volume(m³): 40m³
End plate: 8mm
Lifting System: Full set of HYVA lifting cylinder
Axle: 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20 or 9.00-20
Tire: 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Toolbox: 1 set
Through these videos, you can learn about different types of semi tipper trailers, as well as the process, testing, packaging and customer feedback, etc.
