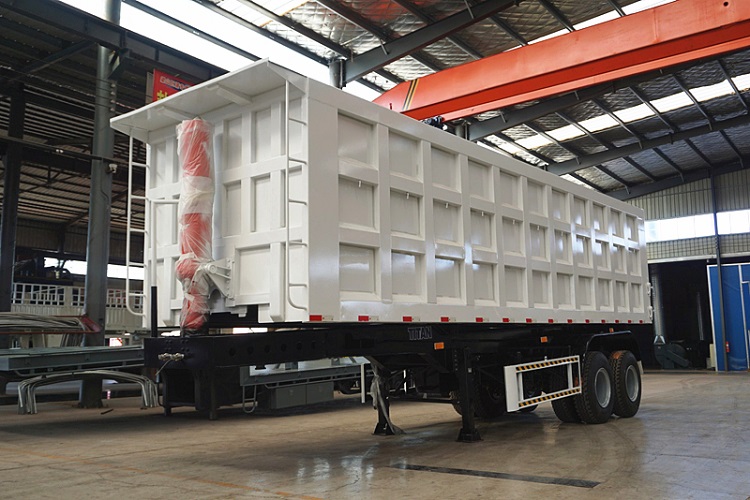

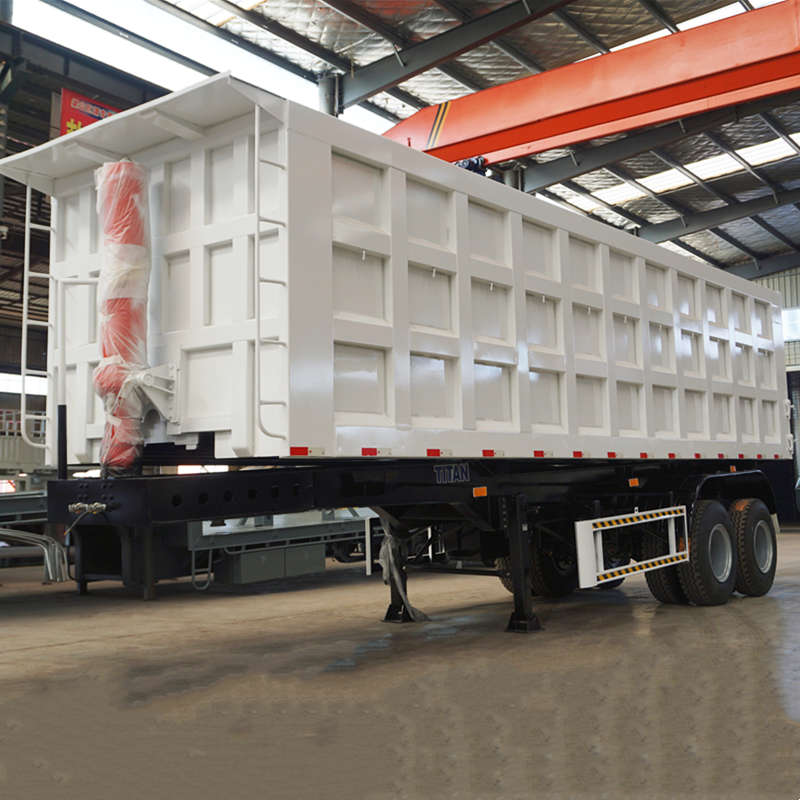

2 axle hydraulic tipper trailer

Product Description：

TITAN dump trailers adopt high strength steel to make it durable when loading the sand or small stones or rocks. And the loading capacity is 40t, 60t, 80t. TITAN produces hydraulic tipper trailer, Longitudinal beam material T700, Double wheel (12 R 22,5) 8 units. Capacity: 22 cbm. Tare weight: 80000 kg. Fuwa or BPW axles. WABCO brakes. HYVA hydraulic cylinder, Rear door with automatic opening with a double hinge.

TITAN Tippers equipped with reliable hydraulic HYVA cylinder. We can customize the tipper trailers according to your special needs, like U shape dump, end dump, side tipper, and container tippers including skeleton and flatbeds trailers.

We use well-known brand axles, FUWA, BPW. It’s with high performance, and reliable to use.

2 axle 25m3 tipper trailer hydraulic tipping trailer dump trailer hydraulic tipper trailer

TITAN hydraulic dump trailer 2 axle for sale

Advantages- TITAN hydraulic dump trailer 2 axle

Volume and Loading capacity of trailer can custom made to meet customer needs

Frame body Q345B high strength structure steel.

Well-known brand axles, suspension systems, high performance, and reliable to use, to ensure the good performance of the vehicle.

TITAN hydraulic tipping trailer are equipped with HYVA cylinder, which is more reliable and more safety

Full braking and electrical systems at home and abroad in accordance with ISO standard, optional ABS system, braking, lighting is absolutely safe and reliable.

Specification -TITAN Tipping semi trailers 2 axles

Brand: hydraulic dump trailer

Overall dimensions (mm): 8000*2500*1600 MM

Body dimensions (mm): 7300*2370*1600 MM

Chassis: Heavy duty and extra durability designed I beam

Axle: 2 Axles, 13 tons TITAN Brand

Hydraulic system: HYVA hydraulic cylinder

Suspension: Mechanical suspension

Kingpin: 3.5’’ bolt - in king pin 90

Landing gear: JOST

Braking system: WABCO

Tire: 12R22.5

Spare tire carrier: one set of the spare tire including a carrier

Accessories: One standard toolbox , one rocker handle, one Shaft wrench

Through these videos, you can learn about different types of semi tipper trailers, as well as the process, testing, packaging and customer feedback, etc.

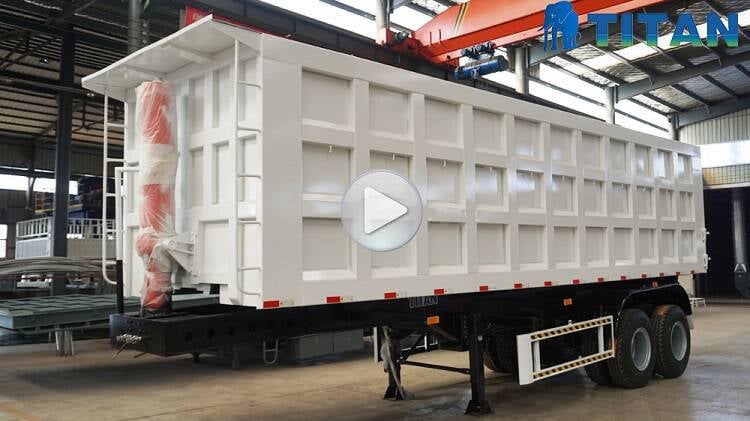

2 Axle End Tipper Semi Trailer details display video

Please click " TITAN Tipper Semi Trailer" to get detailed videos!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing
