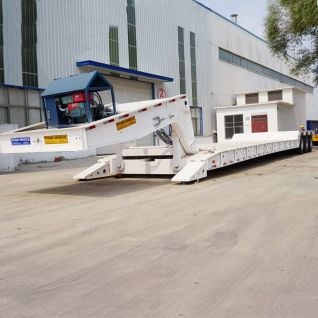

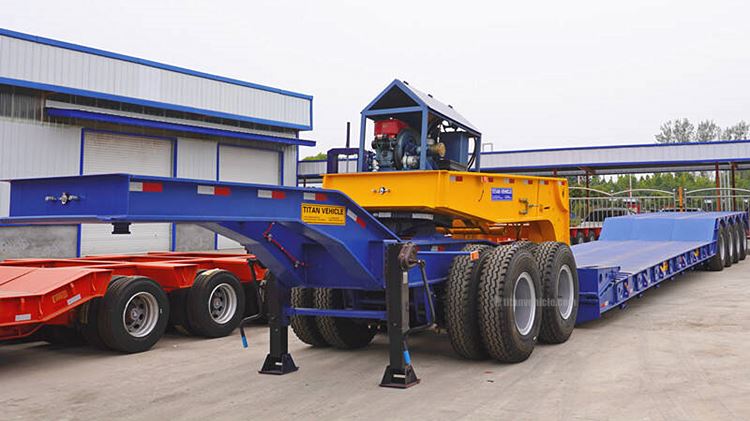

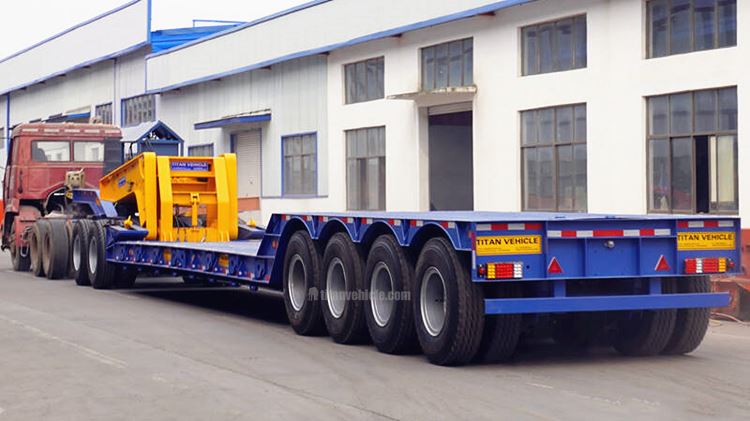

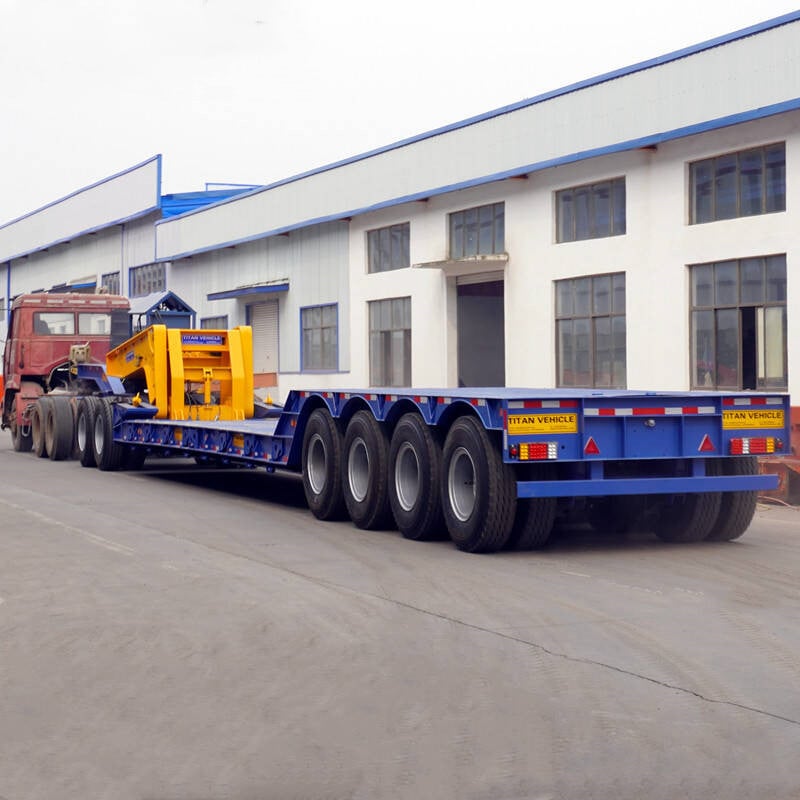

4 Axle Front Loading Low Loader Trailer

4 Axle Front Loading Low Loader Trailer Product Description:

Gooseneck trailers or front loading low loader trailers are not as common as bumper trailers. Detachable gooseneck trailers are also very extensive, suitable for the transportation of various mechanical equipment, large objects, road construction equipment, large tanks, power station equipment and various steel materials. The series semi-trailers have flat, concave beam and tire exposed structures. The longitudinal beams are straight or goosenecked. The frame is stepped and the longitudinal beam section is I-shaped. It has the characteristics of high rigidity and high strength.

Specification:

Dimension: 17000mm x 3000mm x 2500mm

Loading capacity(T): 50-150T

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20 or 900*22.5

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension or air suspension

Spring leaf: 120(W)mmx16(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Tare weight: About 9.5-19T

Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.

Bottom Platform: 5mm thick, checkered plate

Hydraulic cylinder: 12KW diesel engine with hydraulic station

Ramp: spring or hydraulic type

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust

Shipping terms: Transported by the bulk carrier in an RORO or 40HQ container

Through the video, you can know different types of 4 axle front loading low loader trailer , front loading low loader , front loading low bed trailer, etc.

Please click "TITAN Removable Gooseneck Trailer" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
