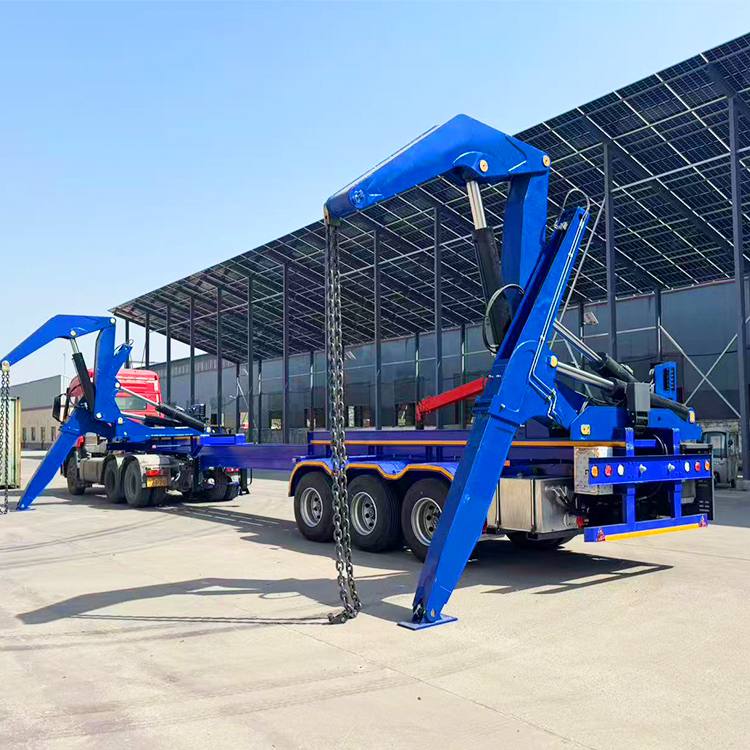

Extendable Sideloader Trailer

Video of Extendable Sideloader Trailer

Description of Extendable Sideloader Trailer

Our extendable sideloader trailer for sale in Guyana utilizes an advanced hydraulic pull out structure for the longitudinal beams, allowing for flexible adjustment of the chassis length to meet actual transportation needs. Whether it's a single 20 foot or 40 foot standard container, or a non standard length container, the Steelbro sideloader for sale can precisely position and quickly load and unload it, completely solving the problems of uneven force distribution and limited transfer capabilities inherent in traditional fixed chassis sideloaders when handling different container types.

Our extendable sideloader trailer for sale in Guyana combines heavy duty lifting capacity with high speed transportation capabilities, eliminating reliance on port gantry cranes or large crawler cranes. In cross regional transportation, mining distribution centers, and temporary logistics hubs, a single person and a single vehicle can independently complete the entire process of container lifting, placement, and transfer, significantly increasing the turnover efficiency of the Steelbro sideloader for sale and reducing overall operation and maintenance costs.

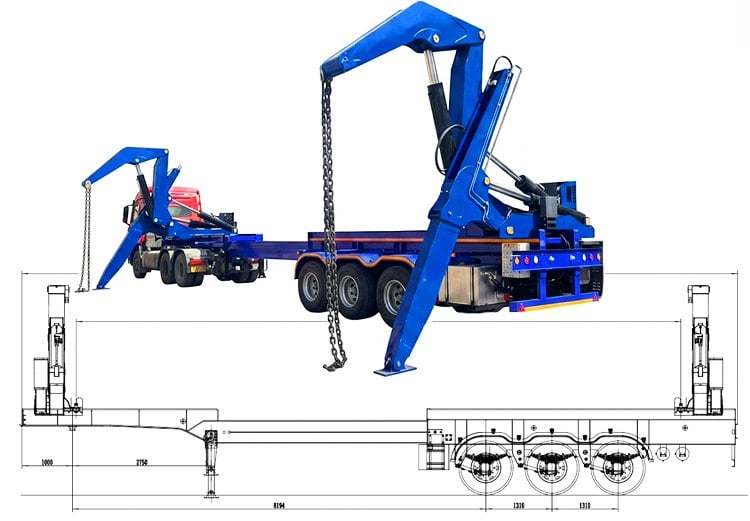

Extendable Sideloader Trailer for Sale in Guyana

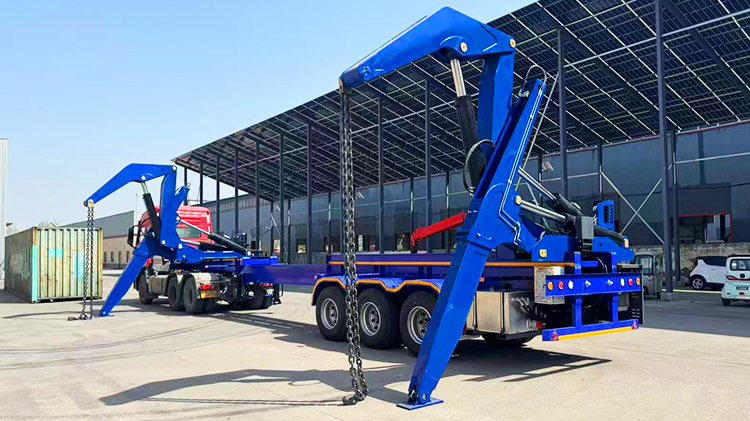

Extendable Sideloader Trailer for Sale in Guyana

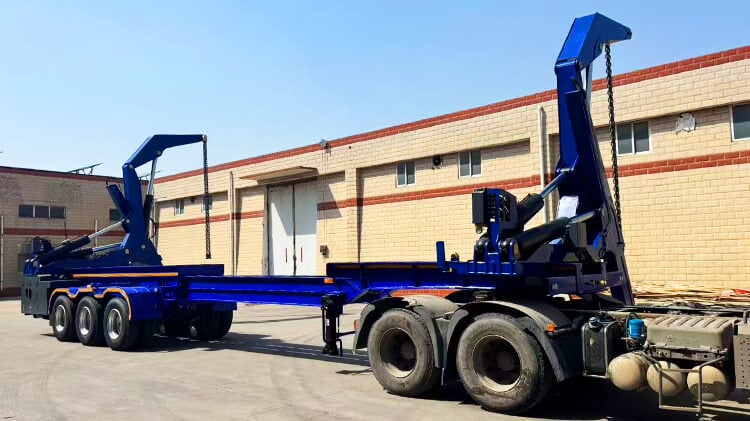

Extendable Sideloader Trailer for Sale in Guyana

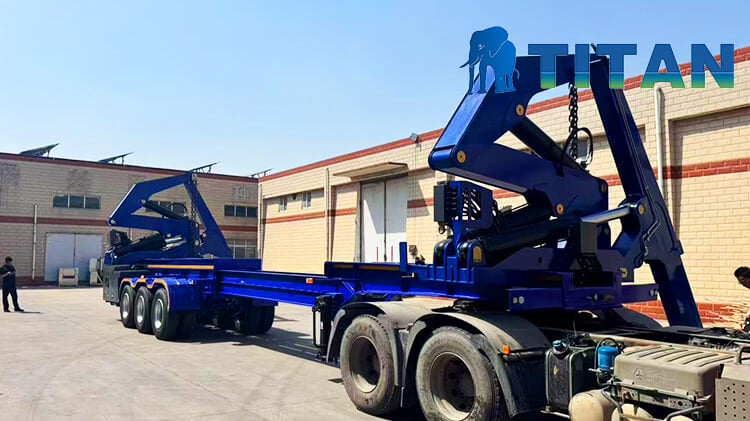

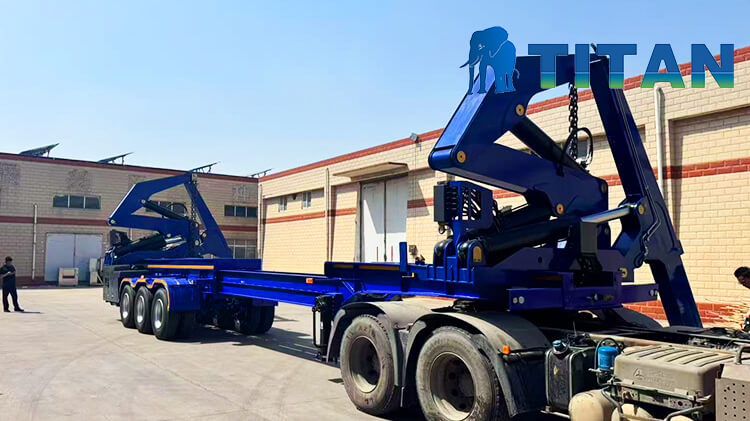

Extendable Sideloader Trailer for Sale in Guyana

Specification of Extendable Sideloader Trailer

Loading capacity: 45 Ton

Load: 20 ft and 40 ft container

Power source: Diesel engine

Remote control: 1 unit

Chains: 2 chains+4 hooks

Dimensions: 14400*2500*4200mm

Axles: 3 axle*13 ton;16 tons brake lining

Tires: 12 pcs,12R22.5

Landing gear: FUWA

Braking system: WABCO Emergency valve

Suspension: Mechanical Suspension

Kingpin: 2 inch and 3.5 inch

Advantages of Extendable Sideloader Trailer

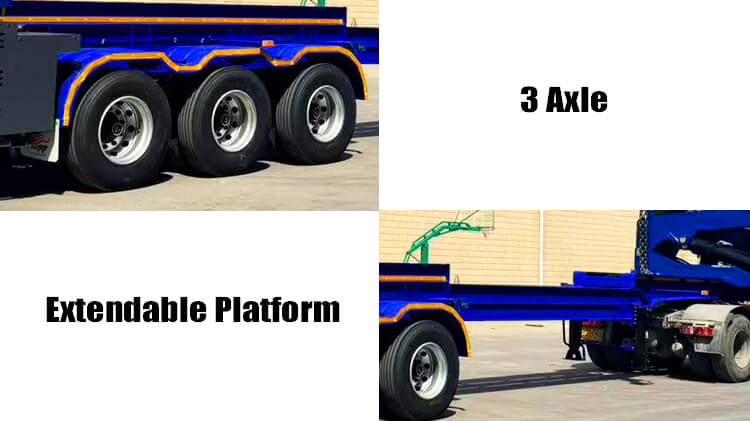

1. The chassis longitudinal beams of this extendable sideloader trailer for sale in Guyana are constructed from high strength alloy steel, equipped with wear resistant sliders and a high precision locking pin system. Even under extended and stretched conditions, the frame maintains extremely high bending and torsional rigidity, ensuring that the Steelbro sideloader trailer for sale can stably support heavy containers of varying weights without deformation even after long term, frequent extension and retraction.

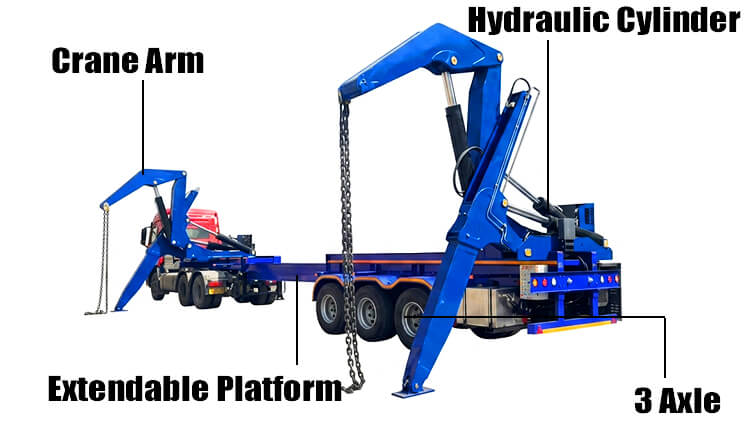

2. This extendable sideloader trailer for sale in Guyana features two sets of high load bearing hydraulic booms at the front and rear, with a compact structure and large lifting torque. It is equipped with thickened alloy anti slip lifting chains and ISO compliant dedicated container corner locks, ensuring excellent synchronization between the two booms during lifting, achieving smooth lifting and impact free tipping of containers even under tilted or uneven loading conditions.

3. This extendable sideloader trailer for sale in Guyana is equipped with heavy duty landing gear that extends outwards and firmly supports the ground during lifting operations, creating a wide and stable support plane. The landing gear features a special anti tipping structure that effectively disperses lateral overturning moments, ensuring stability and safety even on soft, uneven ground, improving the safety and ground adaptability of the Steelbro sideloader trailer for sale.

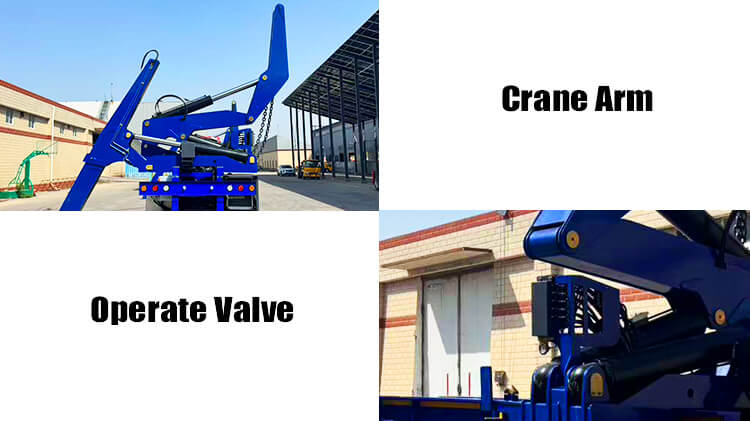

4. This extendable sideloader trailer for sale in Guyana system supports dual operation modes: wireless handheld remote control and a mechanical electronic control panel on the side of the vehicle. Operators can stand in a safe area with the best visibility and perform micron level precise control of the lifting, lateral movement, and extension of the Steelbro sideloader trailer for sale's boom, significantly reducing labor intensity while ensuring on site operational safety.
