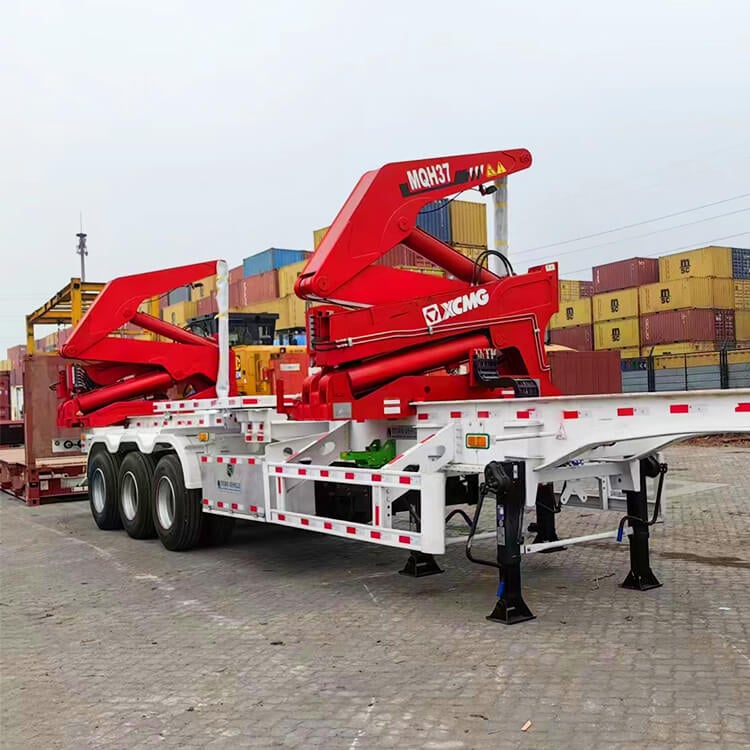

37 ton Container Side Lifter Left

Video of Container Side Lifter

Description of Container Side Lifter

Our 37 ton container side lifter for sale in Guyana eliminates reliance on large lifting equipment, enabling low cost operations. It integrates container lifting with self loading and unloading capabilities, completely solving the pain point of lacking gantry cranes or heavy duty cranes at target sites. Whether for internal transfers within industrial and mining enterprises, rural logistics points, or temporary container yards, only one driver is needed to independently complete loading and unloading, significantly reducing the cost per operation compared to renting cranes.

Our 37 ton container side lifter for sale in Guyana offers exceptional independent operational flexibility, greatly reducing container dwell time. The entire process, from arrival to the smooth landing of the container, takes only a few minutes, significantly shortening the time goods spend at logistics nodes and providing reliable assurance for efficient connection between trunk transportation and last mile delivery.

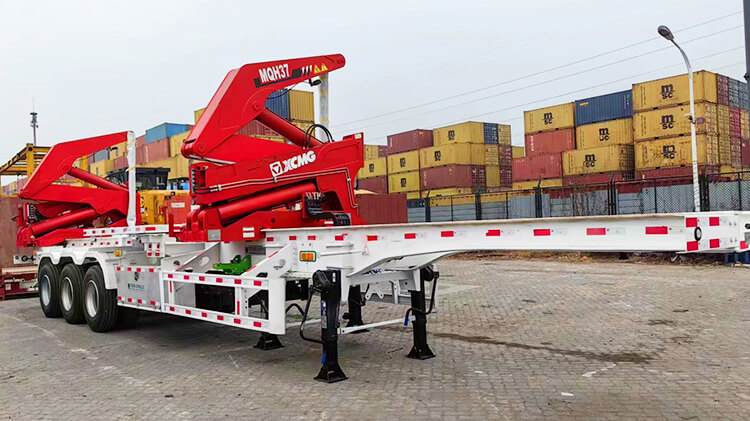

37 ton Container Side Lifter for Sale in Guyana

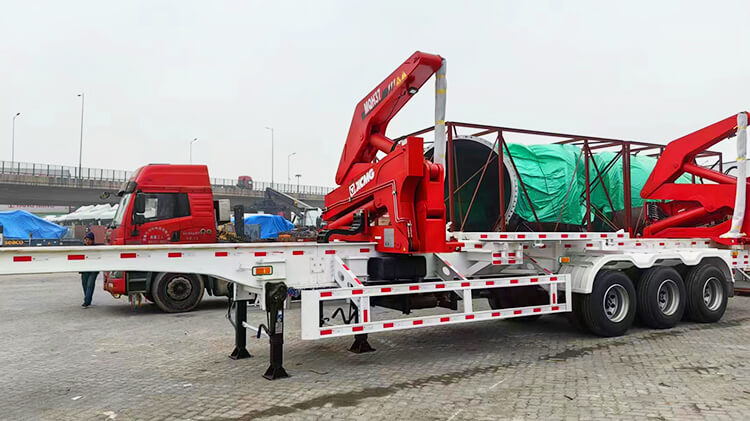

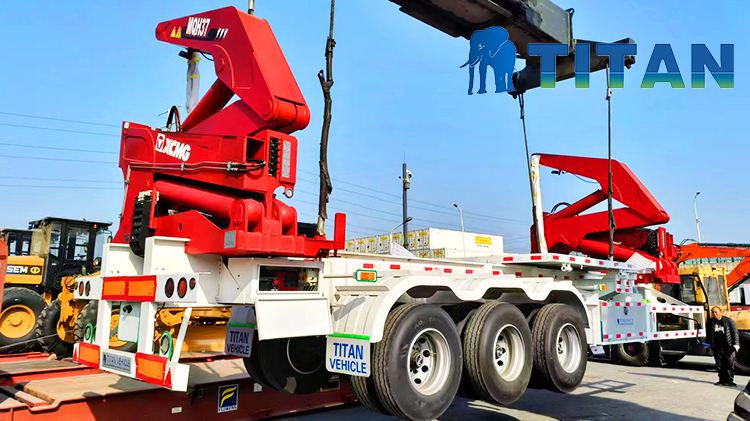

37 ton Container Side Lifter Trailer for Sale in Guyana

37 ton Container Side Lifter Trailer for Sale in Guyana

37 ton Container Side Lifter Trailer for Sale in Guyana

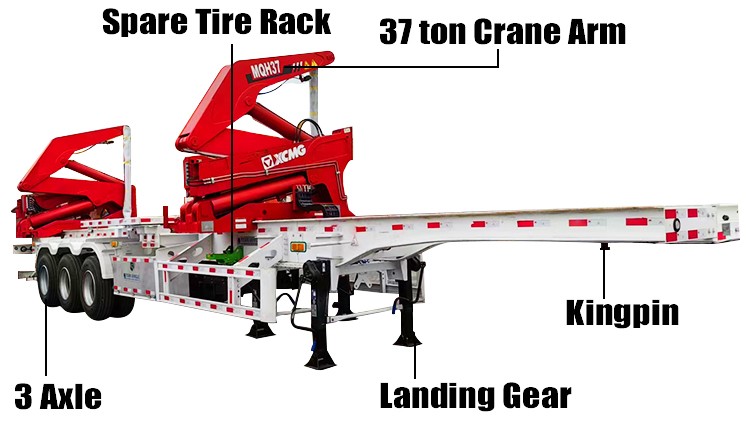

Specification of Container Side Lifter

Loading capacity: 37 Ton

Load: 20 ft and 40 ft container

Power source: Diesel engine

Remote control: 1 unit

Chains: 2 chains+4 hooks

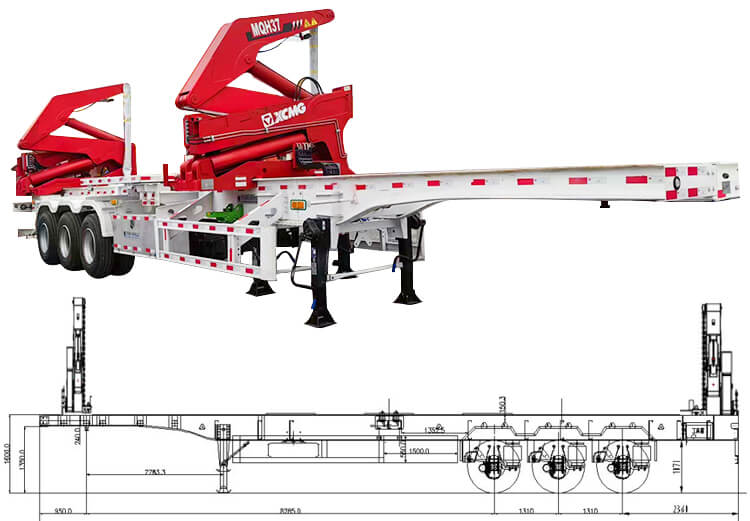

Dimension: 14100*2500*4200mm

Axles: 3 axle*13 ton;16 tons brake lining

Tires: 12 pcs,12R22.5

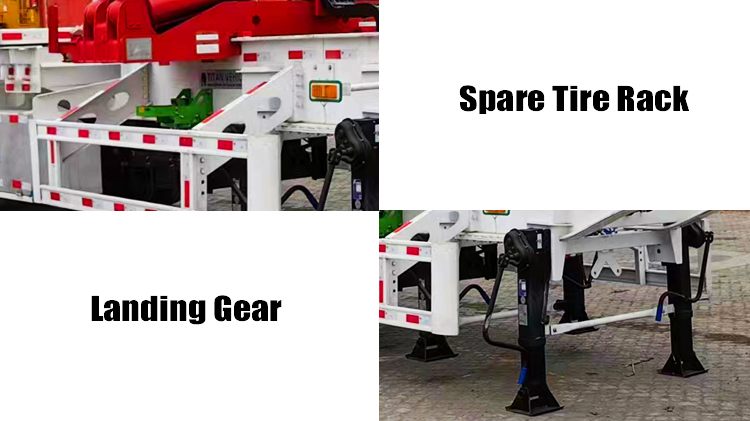

Landing gear: FUWA

Braking system: WABCO Emergency valve

Suspension: Mechanical Suspension

Kingpin: 2 inch and 3.5 inch

Advantages of Container Side Lifter

1. This 37 ton sidelifter container trailer for sale in Guyana utilizes a high strength steel tensile frame, ensuring durability and fatigue resistance. The frame and side lift main beams are constructed entirely of high grade, high strength special steel, welded using automated continuous welding. Key structural components have undergone stress concentration analysis and localized thickening and reinforcement, effectively preventing frame metal fatigue and deformation even after frequent full load lifting and harsh road conditions, significantly extending its service life beyond comparable products.

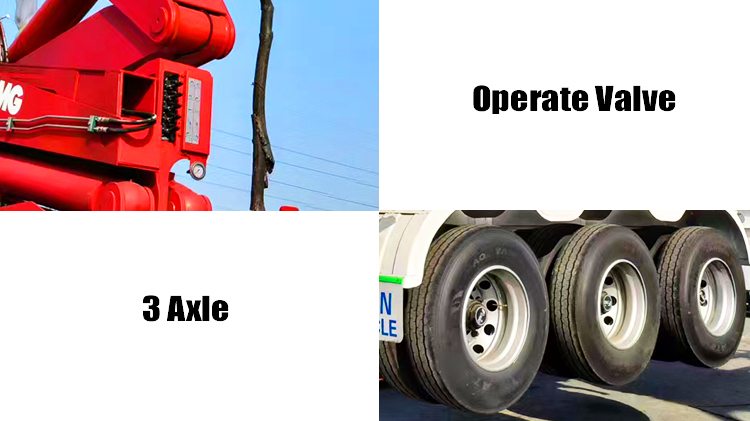

2. This 37 ton sidelifter container trailer for sale in Guyana is equipped with two high load bearing hydraulic booms, ensuring stable and sway free lifting. The hydraulic booms possess a powerful lifting capacity ranging from 37 to 45 tons. Equipped with a high precision synchronous hydraulic control valve group, the lifting and lowering movements of the dual arms remain highly synchronized, maintaining excellent stability even during off center loading or heavy container lifting, eliminating safety hazards caused by violent container shaking.

3. This 37 ton sidelifter container trailer for sale in Guyana incorporates a dual redundant control system of wireless handheld remote control and vehicle side robotic arm control, supporting stepless speed adjustment and micro motion alignment, ensuring safe and practical operation. Operators can remotely direct operations from an optimal observation point several meters away from the lifting area, easily completing the entire process of container locking, lifting, lateral movement, and positioning by a single person. This significantly reduces labor intensity and greatly improves on site operational safety.

4. This 37 ton sidelifter container trailer for sale in Guyana utilizes a fully anti corrosion coating and a highly adaptable chassis suitable for various terrains, easily resisting the corrosive effects of intense heat, humidity, salt spray, and high dust levels in mining areas. The chassis features a 3 axle heavy duty design and reinforced leaf spring suspension, coupled with anti slip and wear resistant heavy duty radial tires, ensuring the trailer can easily traverse unpaved roads, mining access roads, and complex hilly terrain.
