60 Ton Stake Semi Trailer

Product Description:

Stake semi trailer was popular by logistics companies as its multipurpose application. It uses to load a wide range of products and materials, like sand, bags, poultry, and some bulk cargo.

TITAN 60 ton stake trailer deeply loved by foreign customers due to main material used high quality steel-Q345. It has high-strength,strong and sturdy features, stability and safety when operating in harsh road conditions.

In addition, the trailer accessories and configuration all adopt international famous brand and China famous brand, this makes the trailer not only increase long serivce life but aslo improve operating efficiency and save maintenance costs.

China Stake Semi Trailer 60 Ton for Sale in Zambia - TITAN Vehicle

China Stake Semi Trailer 60 Ton for Sale in Zambia - TITAN Vehicle

Specifications:

Tare Weight: About 8.7T

Dimension(mm): 12500x2500x3350mm

Trailer Sides: 1800mm

Loading capacity(ton): ≤60T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand

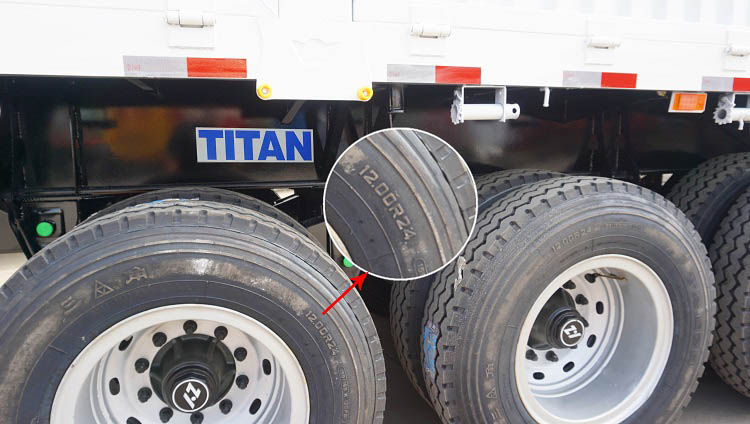

Tire: 12 units, 12.00R24

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical, Bogie, Airbag suspension(China brand or BPW brand)

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Bottom Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Advantages:

1. TITAN Vehicle adopts high strength steel material to manufacture the side wall semi trailer, it can make the sidewall trailer have a higher loading capacity and a longer service life.

2. TITAN Vehicle uses automatic arc-submerging welding method to weld the main beam, so the main beam is more stronger and more durable.

3. The cross beam and the side beam are enhanced, the down plate of the main beam and the bottom plate are all reinforced, it can ensure there is no curling during the using procedure.

4. The distance between two tilted supports is less than 50 centimeters, it can help the main beam have a better loading capacity.

5. Hight quality side wall, make sure the stable and safety of the loads.

Welcome to leave your inquiry!

We will provide quotation and more details, drawings, pictures, videos for you!
