80 Ton Detachable Lowboy Trailer for Sale
80 Ton Detachable Lowboy Trailer for Sale

80 Ton Detachable Lowboy Trailer for Sale

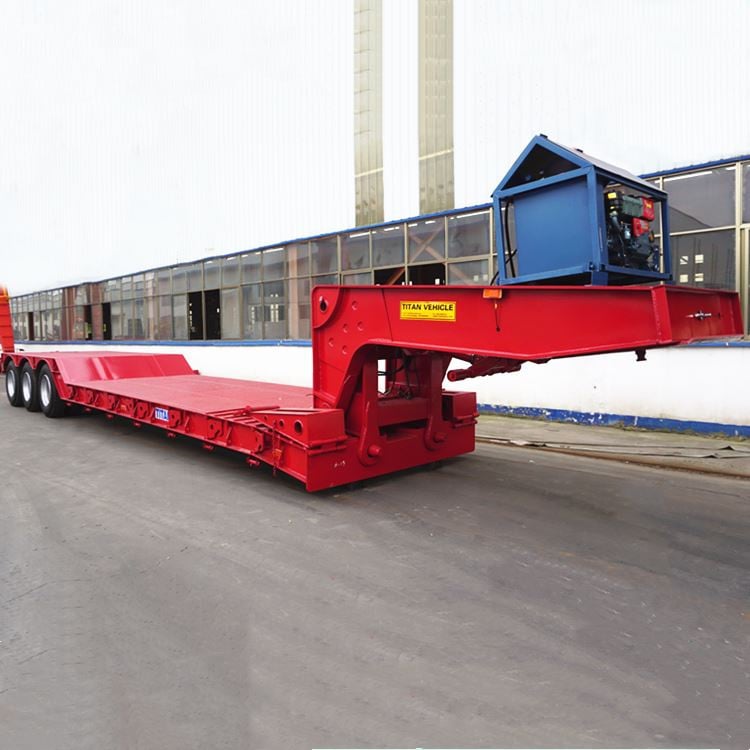

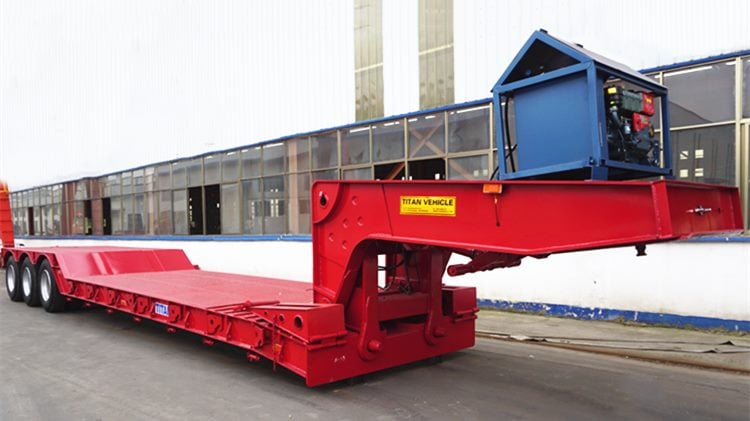

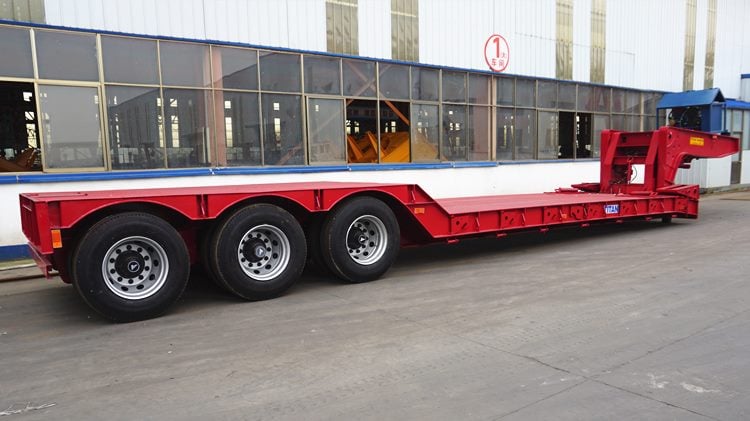

TITAN 80 Ton Lowboy Trailer for Sale. Our line up of lowboy trailers ranges from 50 to 150 ton capacities in two and three axle models with both spring ride and air ride.

80 Ton Lowboy Trailer for Sale Product Description:

TITAN 80 ton lowboy trailer for transport excavator and construction equipment, large machinery transportation. With our increased cylinder stroke you can raise the trailer chassis as high as possible off the ground depending on the truck fifth wheel height. We can make the 2/3/4 axles lowboy trailers, with the capacity of 60/80/100/120 ton.

80 Ton Lowboy Trailer for Sale

80 Ton Lowboy Trailer for Sale

80 Ton Lowboy Trailer for Sale

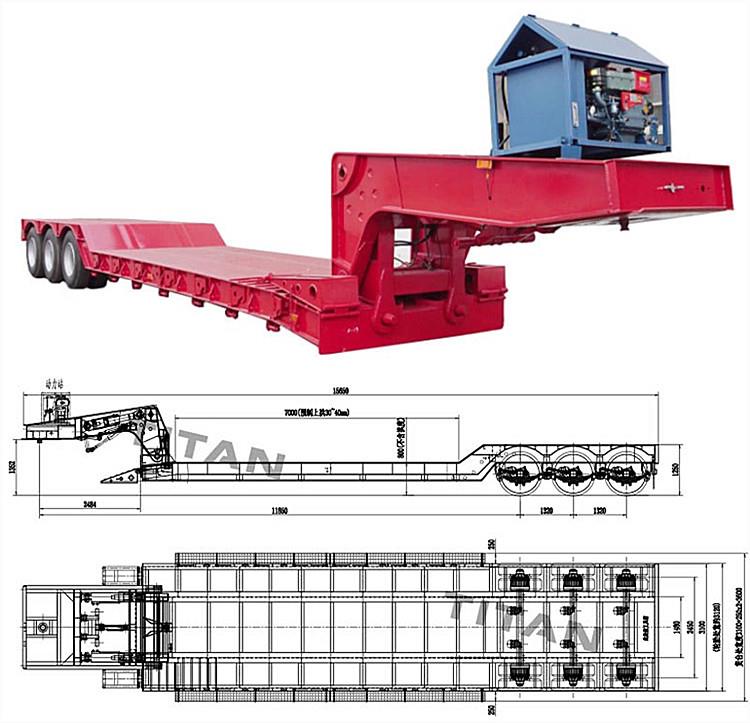

Specification:

Dimension: 15800mm x 3000mm x 2500mm

Loading capacity(T): 50-150T

Axle: 3 axles, 13T/16T, FUWA / BPW / TITAN Brand

Tire: 12 units, 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension or air suspension

Spring leaf: 120(W)mmx16(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Tare weight: About 9.5-19T

Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.

Bottom Platform: 5mm thick, checkered plate

Hydraulic cylinder: 12KW diesel engine with hydraulic station

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust



If you want to know more details about the trailer, please click here "Removable Gooseneck Trailer" to watch the video!
