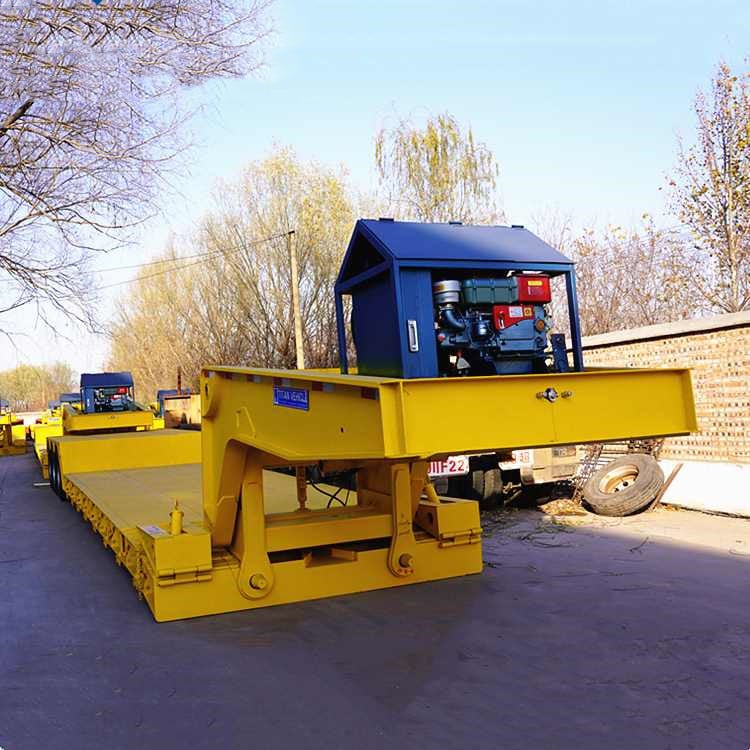

60ton Detachable Gooseneck Trailer

60ton Detachable Gooseneck Trailer Product Description:

The mechanically detachable gooseneck trailer frame is similar to the semi-trailer body frame, and both are symmetrical with respect to the longitudinal vertical center plane. And indirectly contact with the ground (supported by the ground). The front end of the gooseneck is connected with the traction saddle of the tractor through a traction pin. The relationship between the tractor and the gooseneck is that the tractor can rotate around the blood axis relative to the gooseneck. After being separated from the towing saddle, the tractor can be driven away from the semi-trailer.

Specification:

Dimension: 15800mm x 3000mm x 2500mm

Loading capacity(T): 50-150T

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20 or 900*22.5

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension or air suspension

Spring leaf: 120(W)mmx16(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Tare weight: About 9.5-19T

Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.

Bottom Platform: 5mm thick, checkered plate

Hydraulic cylinder: 12KW diesel engine with hydraulic station

Ramp: spring or hydraulic type

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust

Shipping terms: Transported by the bulk carrier in an RORO or 40HQ container

Through the video, you can know different types of 60ton detachable gooseneck trailer , 3 axle detachable gooseneck , detachable gooseneck trailer for sale, etc.

Please click "TITAN Removable Gooseneck Trailer" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
