40ft Side Loader Trailer

40ft Side Loader Trailer Video



40ft Side Loader Trailer Price:46000 USD

The 40ft sideloader trailer is a highly specialized container transport device. Its core feature is the presence of hydraulic lifting arms at the front and rear of the chassis, enabling self-loading and unloading of containers. The sideloader for sale is primarily used in areas lacking large lifting equipment, perfectly solving the problem of remote areas, small factories, or temporary storage yards lacking heavy-duty loading and unloading machinery such as reach stackers or gantry cranes.

40ft Side Loader Trailer for Sale In Guyana

40ft Side Loader Trailer for Sale In Guyana

40ft Side Loader Trailer for Sale In Guyana

Specification of Side Loader Trailer

Crane: CN Hammar Brand

Loading capacity: 37 Ton

Load: 20 ft and 40 ft container

Power source: Diesel engine

Remote control: 1 unit

Chains: 2 chains+4 hooks

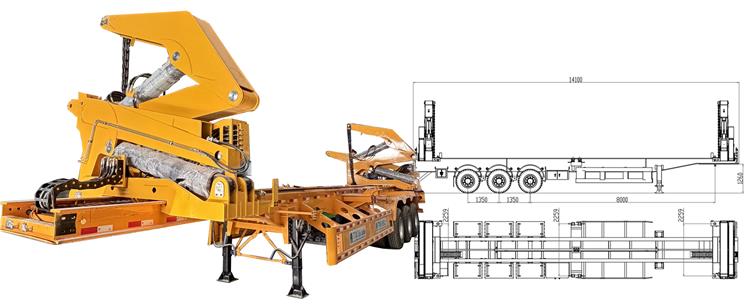

Dimension: 14100*2500*4200mm

Axles: 3 axle*13 ton;16 tons brake lining

Tires: 12 pcs,12R22.5

Landing gear: FUWA

Braking system: WABCO Emergency valve

Suspension: Mechanical Suspension

Kingpin: 2 inch and 3.5 inch

Advantage of Side Loader Trailer

The sideloader trailer allows for rapid container transfers (such as trailer-to-trailer or trailer-to-train) between rail yards, ports, or truck fleets. It only needs to be parked parallel to the container to be lifted or the accompanying vehicle to begin operations, making it ideal for space-constrained logistics parks. The standard rated lifting capacity of a sideloader trailer is typically 37 tons, with some reinforced models reaching 40 tons or even 45 tons, easily handling fully loaded heavy containers.

A skilled operator can typically complete the loading and unloading of a 40-foot container in minutes. A dual-speed system (fast when empty, slow when loaded) further enhances operational efficiency. The side loader for sale boasts exceptional safety and stability.

It utilizes wireless remote control, allowing the operator to maintain optimal visibility and control the entire system, while a manual multi-way valve remains as an emergency backup. The side loader's lifting cylinders are equipped with balance valves and two-way hydraulic locks, ensuring the load remains safely suspended even in the event of a hydraulic line rupture, preventing the container from falling out of control. The side loader trailer's wide hydraulic outriggers not only adapt to uneven terrain but also provide exceptional anti-tipping stability under load.
