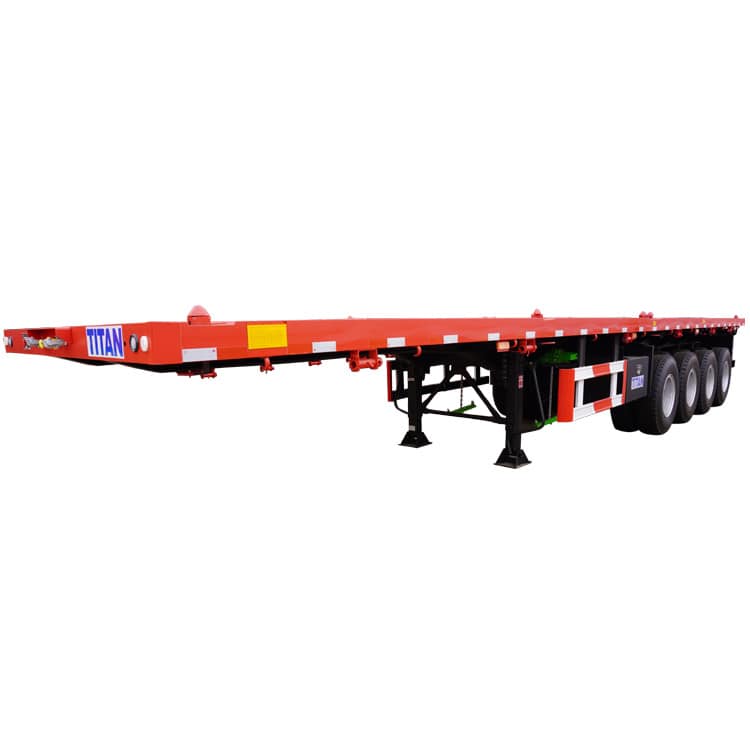

40 Ft Flatbed Semi Trailer

40 Ft Flatbed Semi Trailer Description：

The 40 ft flatbed semi trailer is mainly composed of container locks, main frame, axles, tires, suspension, light circuit system, “ABS” braking system, tool box, support device and side and rear lower protection devices, safety accessories and signs, etc.

TITAN use the reinforced suspension on 40 ft flatbed semi trailer, 70mm center balance pin. In the front and rear of the suspension, left and right are reinforced.

40 Ft Flatbed Semi Trailers for Sale in Tanzania dar es salaam

40 Ft Flatbed Semi Trailers for Sale in Tanzania dar es salaam

40 Ft Flatbed Semi Trailers for Sale in Tanzania dar es salaam

40 Ft Flatbed Semi Trailer Specification:

Model: 4 axle flatbed semi trailer

Dimension(mm): 12500x2500x1550mm

Loading capacity(ton): ≤60T

Axles: 4 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand

Tire: 16 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

40 Ft Flatbed Semi Trailer Advantage:

1. TITAN Vehicle adopts high strength steel material to manufacture the flatbed trailer, it can make the flatbed trailer have a higher loading capacity and a longer service life.

2. Also the trailers floor is checker plate, this will keep the other bulk cargo more stable.

3. Durable mechanical widened spring suspension, make sure the stability and safety.

4. polyurethane paint, the vehicle is more beautiful, effective protection of the body against rust, extend the life of the vehicle.

5. Hight Quality container locks, make sure the stable and safety of the loads.
