Different Parameters, Different Price. Price Reference Only.

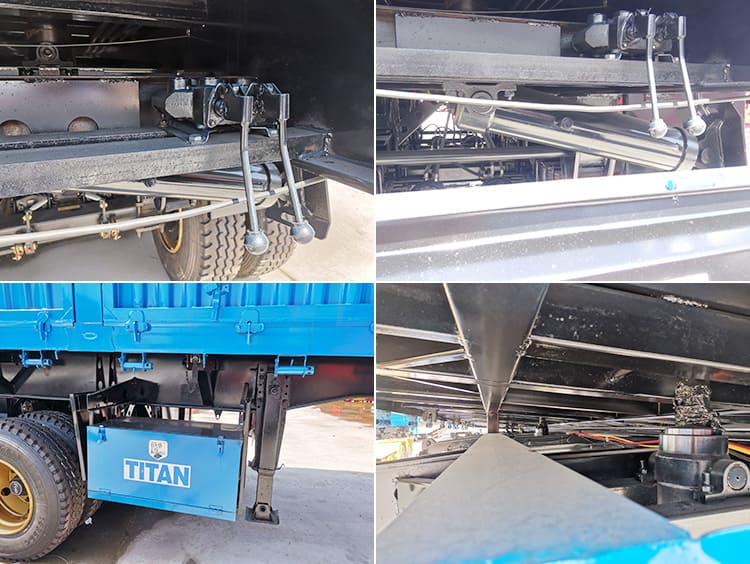

The fence of the 40 ton side tipper trailers can be selected in the form of matts or vertical stripes, and there are double insurances of door strike plate and lock rod under the fence.
TITAN use the 13 ton axle but the 16 ton 220 mm width brake pads on the 40 ton side tipper trailers which can improve the brake performance 20 %
40 Ton side tipper trailers is using polyurethane paint, the vehicle is more beautiful, has a strong adhesion, long-term use of non-fading, non-fading paint, effective protection of the body against rust, prevent acid and alkali corrosion, extend the life of the vehicle.
40 Ton Side Tipper Trailer for Sale with Designs in Tanzania Dodoma
40 Ton Side Tipper Trailer for Sale with Designs in Tanzania Dodoma
40 Ton Side Tipper Trailer for Sale with Designs in Tanzania Dodoma
40 Ton Side Tipper Trailer for Sale with Designs in Tanzania Dodoma
Dimension: 11000mmx2500mmx3200mm
Lifting System: Lifting cylinder 5x130 bore, a shift cylinder
Axle: 3 axle 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20 or 9.00-20
Tire: 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 16mm, Material: T700 steel.
ABS: Optional
Valve: WABCO valve
Light: LED light (especially intended for overseas markets)
Voltage: 24V
Accessories: One standard tool box, one rocker handle, one Shaft wrench
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of topcoats.
40 Ton Side Tipper Trailer Video
Through these videos, you can learn about different types of tipper semi trailer, as well as the process, testing, packaging and customer feedback, etc.
