4 Axle Detachable Gooseneck Trailer makes your equipment shipping easier. With an removable gooseneck semi trailer you can hold heavy equipment lower to the ground and avoid issues with height permits and constraints.
Benefit of the removable gooseneck semi trailer is the "detachable" gooseneck. This allows the front of the trailer to detach. After the front of the gooseneck has been detached, a large piece of equipment like a tractor or excavator can be driven directly onto the trailer. After the equipment is loaded, the gooseneck is reattached and the equipment can be secured in place. This simplifies the process of loading and unloading.
With an removable gooseneck semi trailer, because it drops in the middle, you have more height to work with and can fit larger pieces of equipment on the trailer. The drop in the middle is known as the “well”. The well usually spans about 29 feet (customized) across. When you place a piece of equipment in the well you can legally take loads up to 12 feet (customized) tall making it ideal for large equipment and oversized loads. With an removable gooseneck semi trailer you can hold heavy equipment lower to the ground and avoid issues with height permits and constraints.

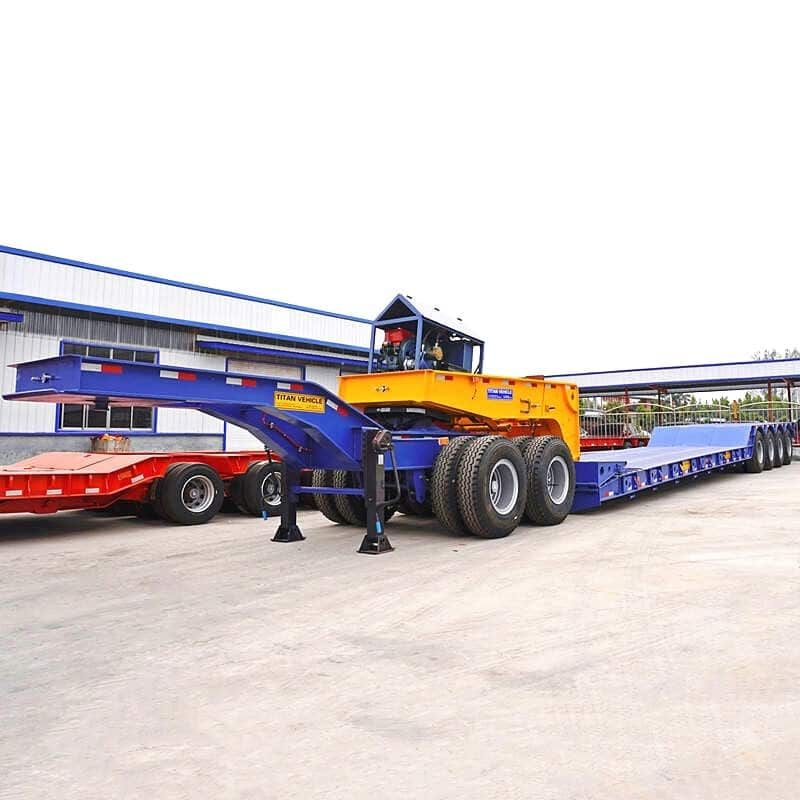

4 Axle Detachable Gooseneck Trailer for Sale

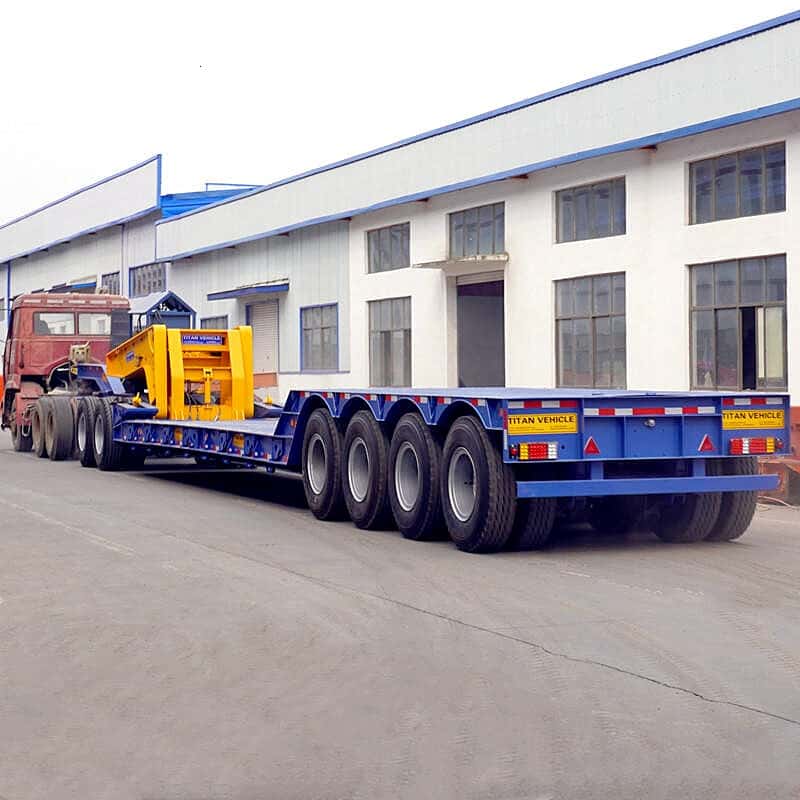

4 Axle Detachable Gooseneck Trailer for Sale

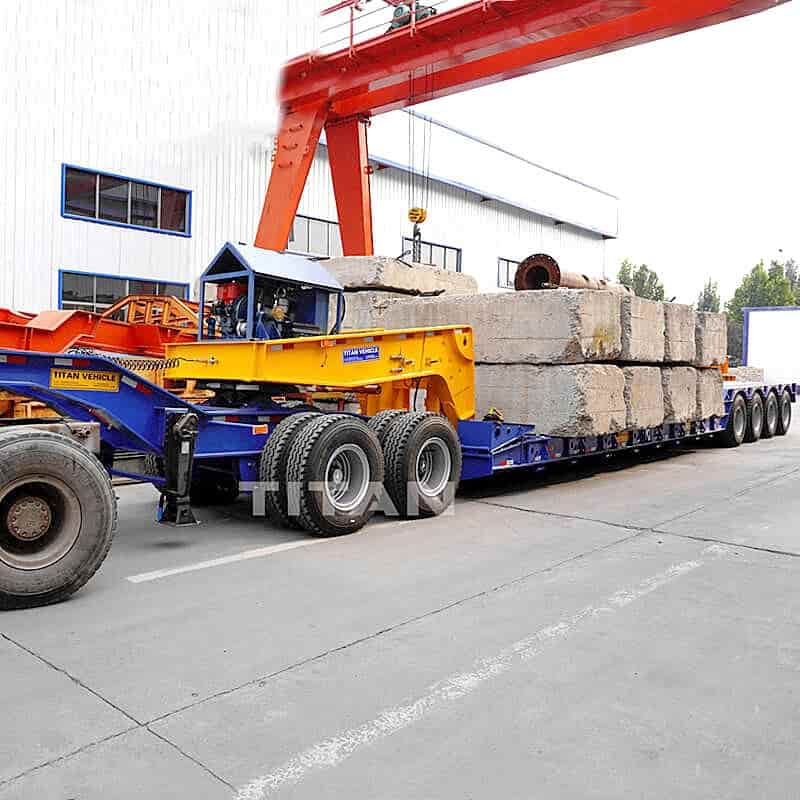

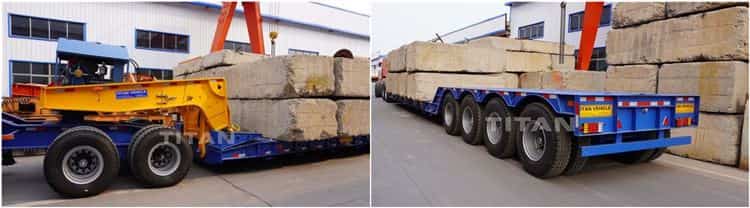

150ton Detachable Gooseneck Trailer for Sale

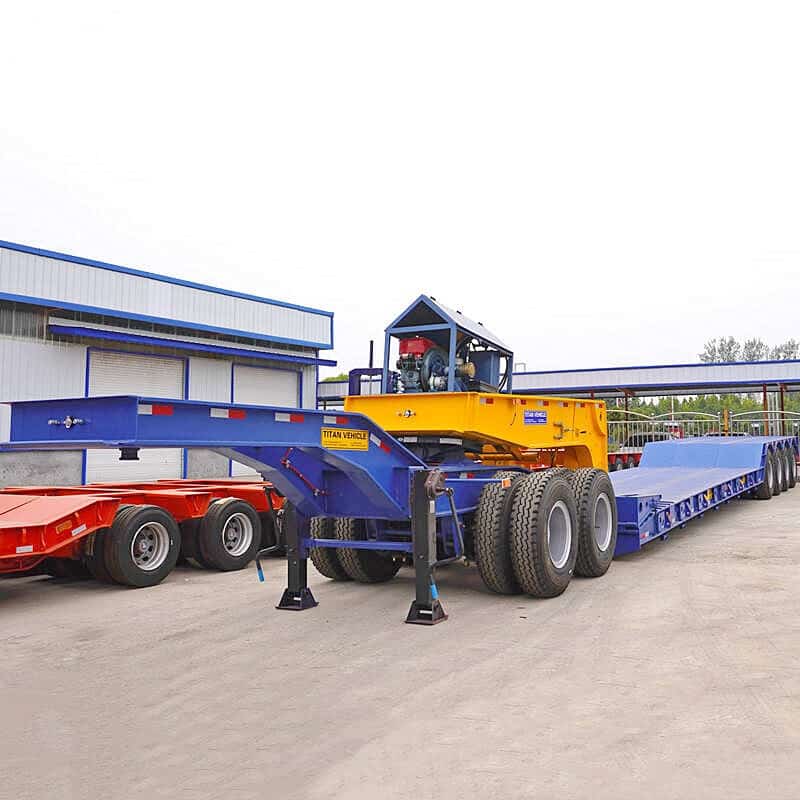

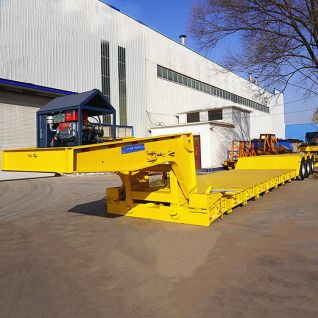

Hydraulic Detachable Gooseneck Lowboy Trailer Details

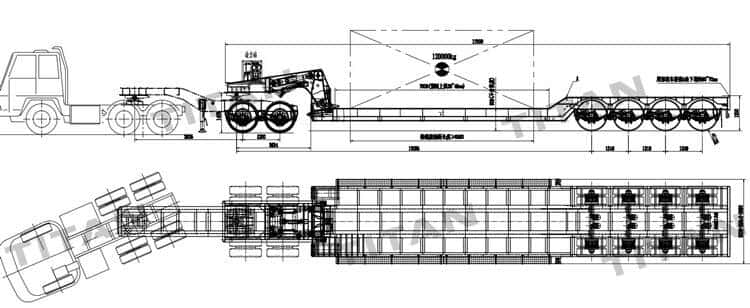

Overall dimension:17900mm * 2500+250*2mm *2200mm(platform 800mm)
Loading capacity: 150 ton
Axles:4 axles with 2 axles dolly
Tire: 16 units, 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension or air suspension
Spring leaf: 120(W)mmx16(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Tare weight: About 9.5-19T
Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.
Bottom Platform: 5mm thick, checkered plate
Hydraulic cylinder: 12KW diesel engine with hydraulic station
Ramp: spring or hydraulic type
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust
