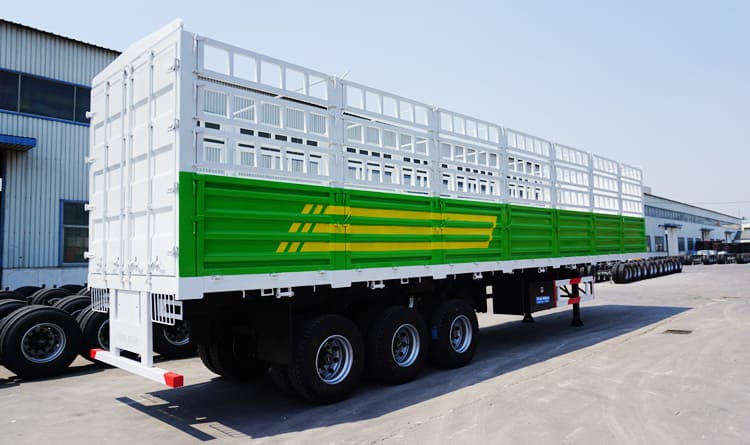

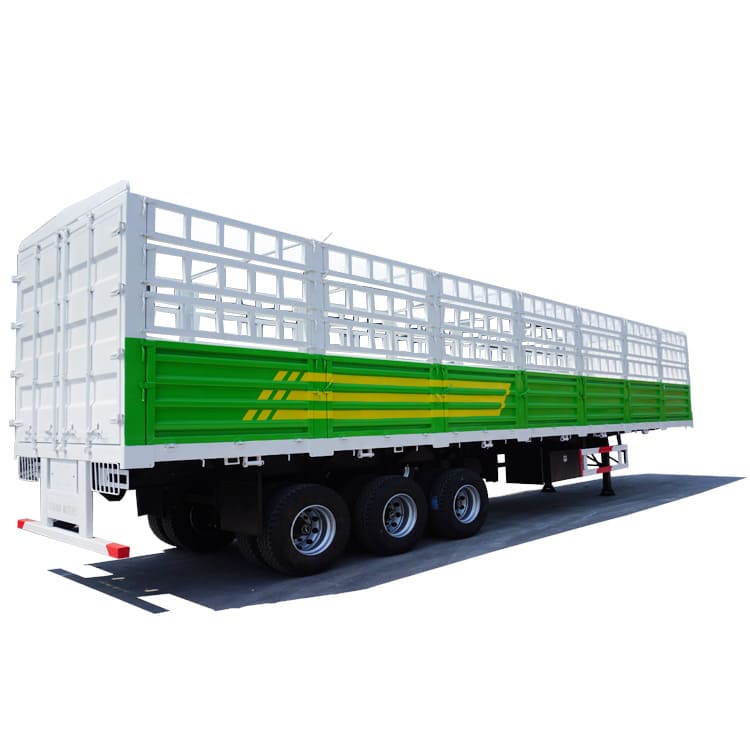

3 Axle Fence Semi Trailer

3 Axle Fence Semi Trailer Description:

3 Axle Fence Semi Trailer use the reinforced suspension on our trailer, 70mm center balance pin. 3 Axles fence cargo semi bhachu trailer's suspension front and rear, left and right are reinforced.

TITAN optional Jost landing gear which is a world recognized famous brand accessory with a better bearing capacity and long service life.

3 Axle Fence Semi Trailer for Sale with Lower Price Near Me in Kenya Reitz

3 Axle Fence Semi Trailer for Sale with Lower Price Near Me in Kenya Reitz

3 Axle Fence Semi Trailer for Sale with Lower Price Near Me in Kenya Reitz

3 Axle Fence Semi Trailer Specification:

Dimension(mm): 13000x2600x3420mm

Trailer Sides: 1800mm

Loading capacity(ton): ≤60T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Bottom Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Through this video, you can learn about different types of fence semi-trailers, as well as the process, testing, packaging and customer feedback, etc.

Please click "TITAN Fence Trailer" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
