3 Axles 40 Tons Semi Grain Trailer
3 Axles 40 Tons Semi Grain Trailer

3 Axles 40 Tons Semi Grain Trailer

10000 USD

Different Parameters, Different Price. Price Reference Only.



3 Axles 40 Tons Semi Grain Trailer is a trailer pulled by a semi tractor and used to haul bulk commodity products, such as grain.

SKU: 3 Axles 40 Tons Semi Grain Trailer
GTIN: 06975766110291
MPN: TITAN9201018
Brand: TITAN

3 Axles 40 Tons Semi Grain Trailer Description:

TITAN also produces have the 2 axles, 3 axles, 4 axles semi grain trailers. The color could be painted as your request. 3 Axles 40 tons semi grain trailer adopts polyurethane paint with high adhesion, high chromogenic, beautiful color, and the cost is twice that of ordinary paint. The paint will not come off after five years.

3 Axles 40 Tons Semi Grain Trailer

3 Axles 40 Tons Semi Grain Trailer for Sale in Kenya Mombasa

3 Axles 40 Tons Semi Grain Trailer

3 Axles 40 Tons Semi Grain Trailer for Sale in Kenya Mombasa

3 Axles 40 Tons Semi Grain Trailer

3 Axles 40 Tons Semi Grain Trailer for Sale in Kenya Mombasa

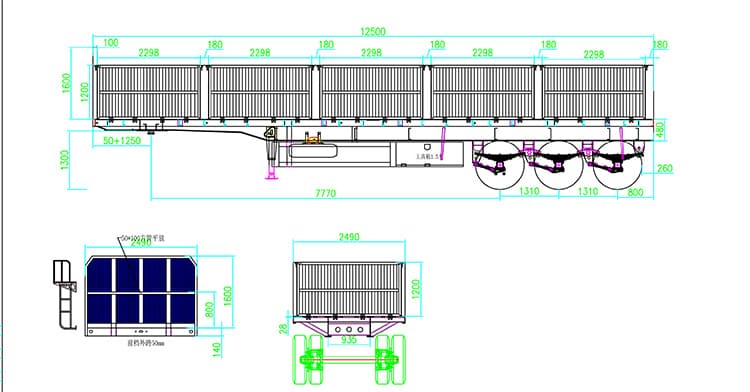

3 Axles 40 Tons Semi Grain Trailer Specification:

Tare Weight: About 7.6T

Dimension(mm): 12500x2490x2900mm

Trailer Sides: 1500mm

Loading capacity(ton): ≤60T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical, suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Bottom Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats



3 Axles 40 Tons Semi Grain Trailer



3 Axles 40 Tons Semi Grain Trailer Advantages:

1. TITAN Vehicle adopts high strength steel material to manufacture the side wall semi trailer, it can make the sidewall trailer have a higher loading capacity and a longer service life.

2. TITAN Vehicle uses automatic arc-submerging welding method to weld the main beam, so the main beam is more stronger and more durable.

3. Hight quality side wall, make sure the stable and safety of the loads.

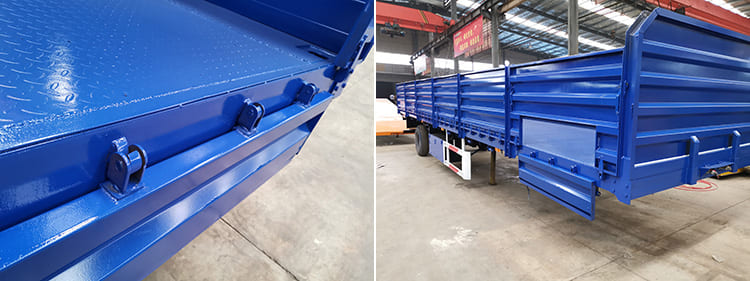

4. Also the trailers floor is checker plate, this will keep the other bulk cargo more stable, like the bags, or long stuff.

5. To make sure the service life of the side wall semi trailers, all the spare parts we adopt are world famous brand.



Through this video, you can learn about different types of fence semi-trailers, as well as the process, testing, packaging and customer feedback, etc.



Please click "TITAN Fence Trailer" to get detailed video!



Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!

Review

Mark from Nigeria - 2022-04-01T15:04:52+0800
I have recieved these 3 axles 40 tons semi grian trialers over month. I bought these trailers for transportation grians. The quality is quiet good. I will recommend this trailers to my business friends.
