The stake type is a cheap and light construction compared to other cargo semi trailers that you will ever come across out there in the market. Stake semi trailer is designed and built in such a way that it is easy to clean, which is a very important aspect to consider during your purchase.
This type of 3 axle fence trailer is TITAN most commonly sold model and exported to Sudan, Nigeria, Zambia, Senegal, etc.

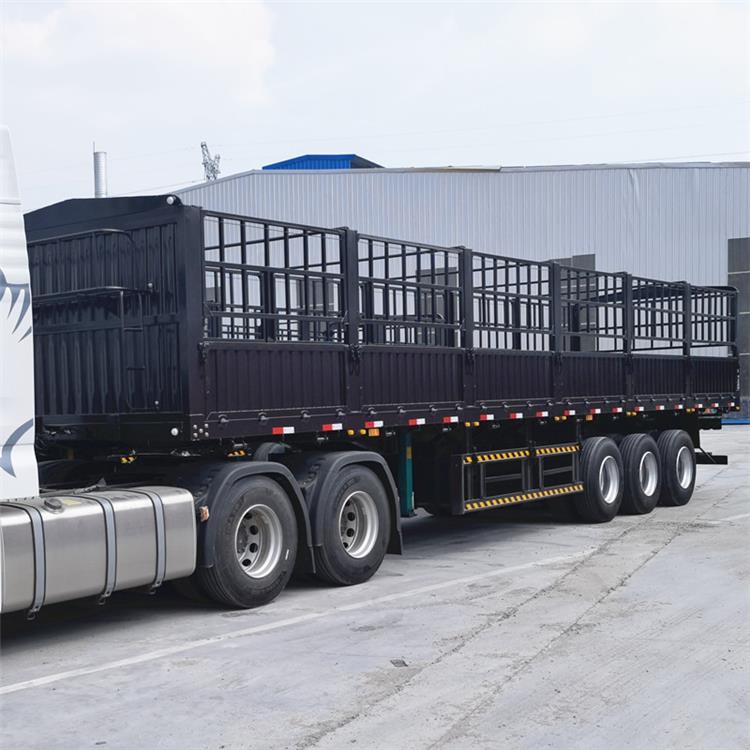

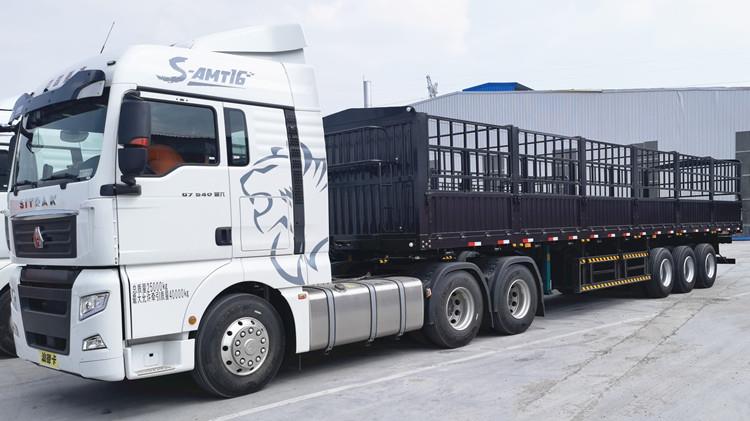

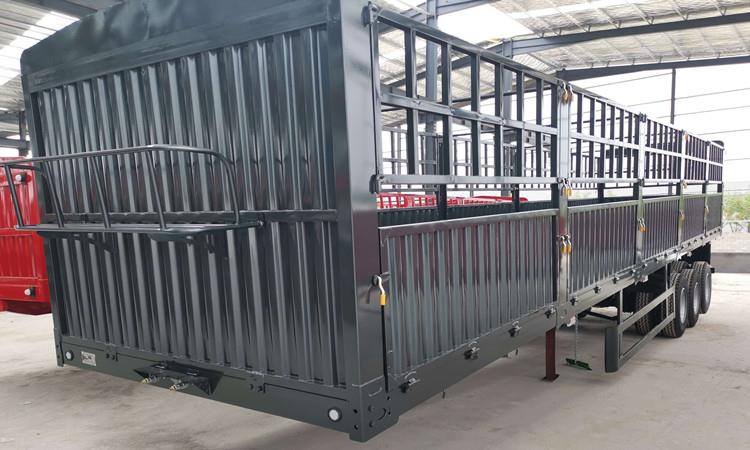

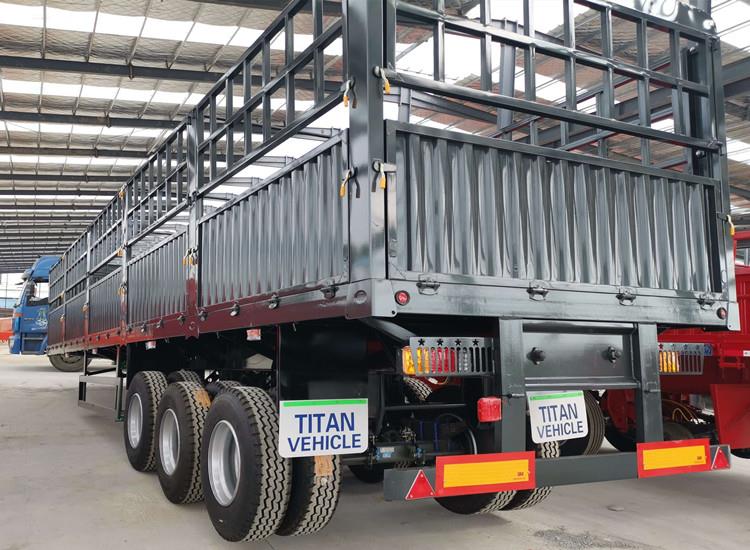

3 Axle 60 Ton Fence Cargo Stake Semi Trailer for Sale
3 Axle 60 Ton Fence Cargo Stake Semi Trailer for Sale
3 Axle 60 Ton Fence Cargo Stake Semi Trailer for Sale

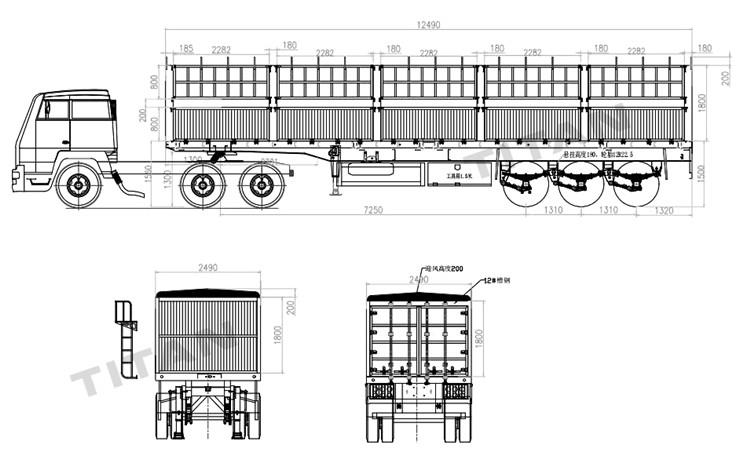

Dimension(mm): 12490x2490x3500mm
Trailer Sides: 1800mm
Loading capacity(ton): ≤60T
Axles: 3 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand

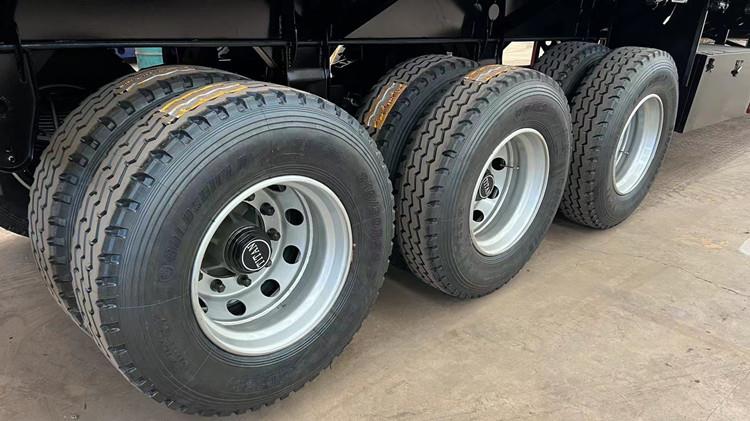

Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Bottom Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
1. The stake semi trailer model and fence structure design process are combined with the user's cargo category, reasonable design, to fully reduce the weight of the carriage under load conditions, the structure is simple and applicable, and 3 axle stake trailer is convenient to disassemble, reduce investment costs for users, and create more profit value.

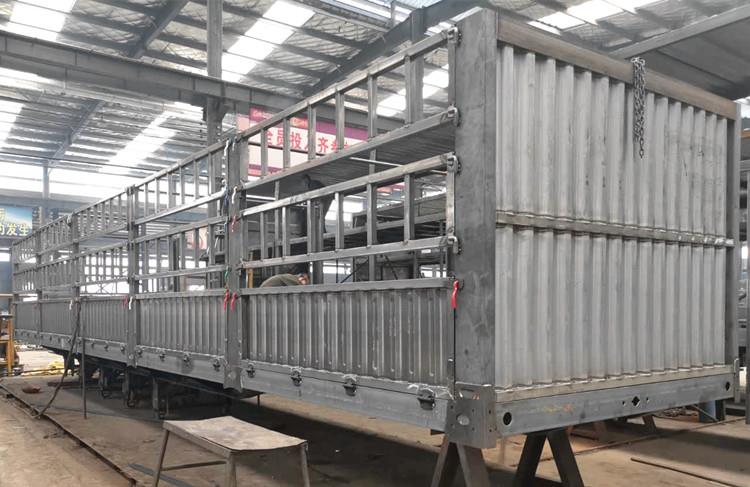

2. The fence cargo trailer frame adopts a space frame structure formed by welding longitudinal beams and integral through cross beams. It can balance the strength, rigidity, and toughness of the frame, with strong bearing capacity and no deformation.
3. 60 ton fence semi trailer adopts a new type of suspension system with high strength and strong impact resistance. The load of each axle is balanced, and the system tie rod angle is reasonably designed to reduce the friction slip distance between the tire and the ground and effectively reduce tire wear during frequent bumps.
Through this video, you can learn about different types of fence semi trailer, as well as the process, testing, packaging and customer feedback, etc.
Please click "TITAN Fence Trailer" to get detailed video!
Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
