3 Axle 40ft Low Bed Trailer
3 Axle 40ft Low Bed Trailer

3 Axle 40ft Low Bed Trailer

12800 USD

Different Parameters, Different Price. Price Reference Only.



Hydraulic 3 Axle 40ft Low Bed Trailer is widely used in heavy machine transportation.  we have different types of low bed trailer.

SKU: 3 Axle 40ft Low Bed Trailer
GTIN: 06975766110581
MPN: TITAN9403TDP034
Brand: TITAN

Product description:

Hydraulic 3 Axle 40ft Low Bed Trailer is widely used in heavy machine transportation. The 3 Axle 40ft Low Bed Trailer has all the same versatility as a flatbed trailer but has a lowered deck to accommodate for a taller cargo height. This gives it an extra boost in the height that it can securely transport.

TITAN Hydraulic 3 Axle 40ft Low Bed Trailer can have one step, where the deck drops and stays flat until the end of the trailer, or a double drop, where the deck drops below the axle height and steps back up over the axles at the end of the 3 Axle 40ft Low Bed Trailer.

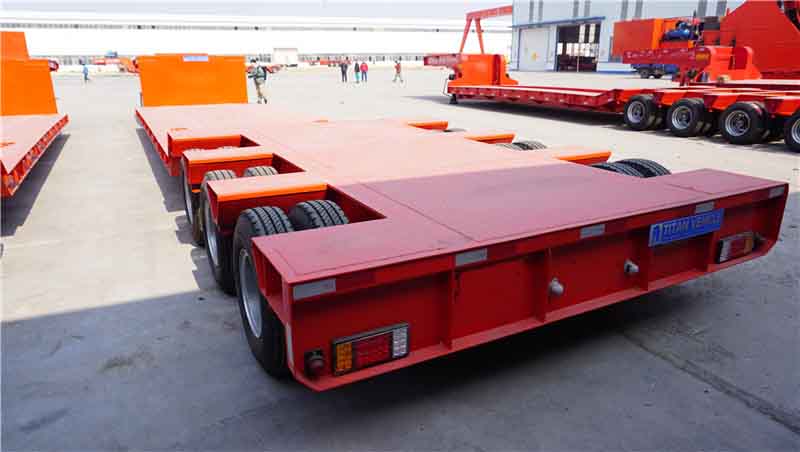

China 3 Axle 40ft Low Bed Trailer for Sale in Senegal Dakar

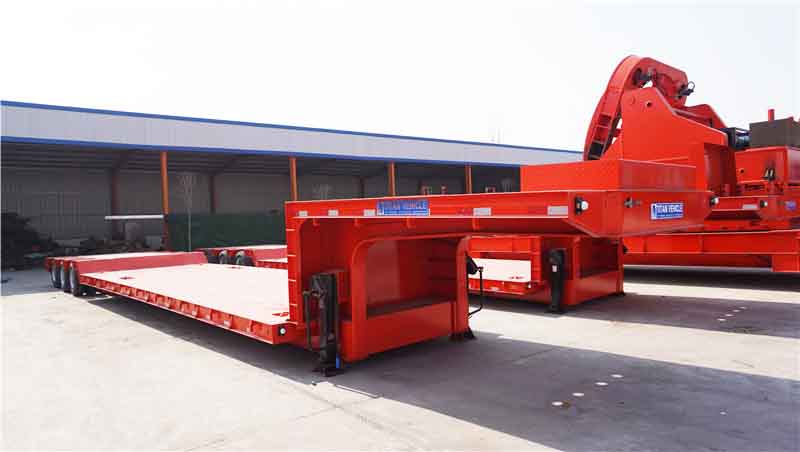

China 3 Axle 40ft Low Bed Trailer for Sale in Senegal Dakar

China 3 Axle 40ft Low Bed Trailer for Sale in Senegal Dakar



Specification:

Overall dimension: 13000mm * 3000mm *3400mm

Loading capacity(T): 40-100T

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20

Tire: 11.00R20

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.

Bottom Platform: 5mm thick checkered plate

Ramp: Spring ramp

Gooseneck: Optional

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)



Through this videos, you can learn about different types of lowbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.



3 Axle 80 Ton Low Bed Truck



Please click "TITAN Lowbed Trailer" to get detailed video!



Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!

Review

Roopnarine from Guyana - 2022-04-12T10:04:22+0800
Very good choice. This is very good 3 axle 40ft low bed trailer for my work, it has transported well for over 90 days without any problem, I wil try more works with it.
Repolidon - 2021-06-18T17:06:35+0800
I selected the airbag suspension for the low bed trailer. The airbag suspension can provide a good shock absorption effect for the vehicle and more fuel-efficient.
