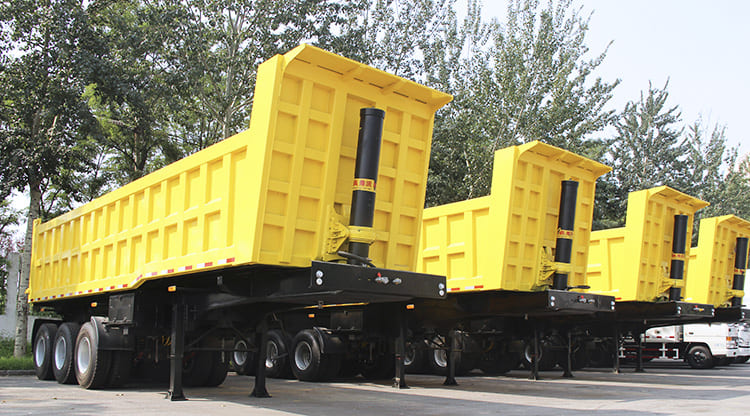

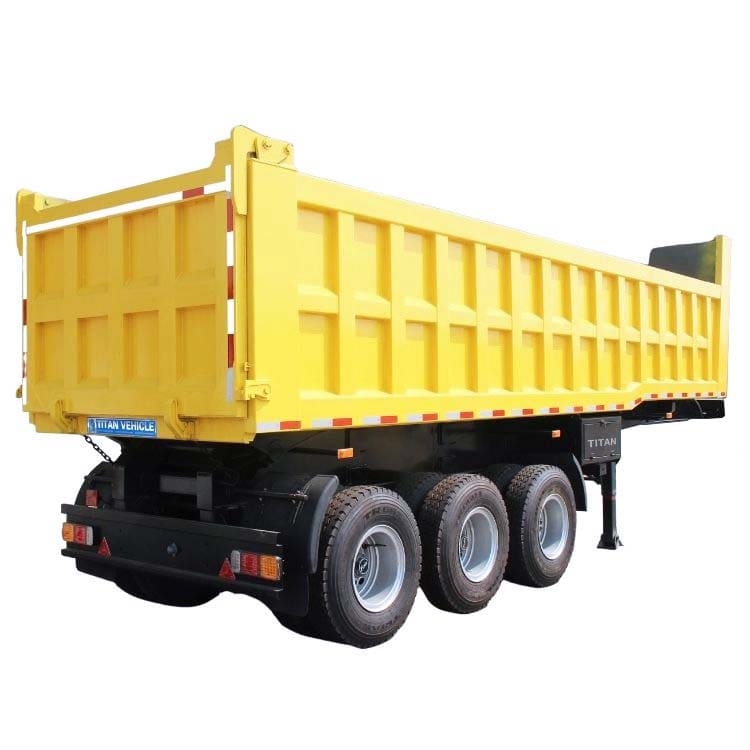

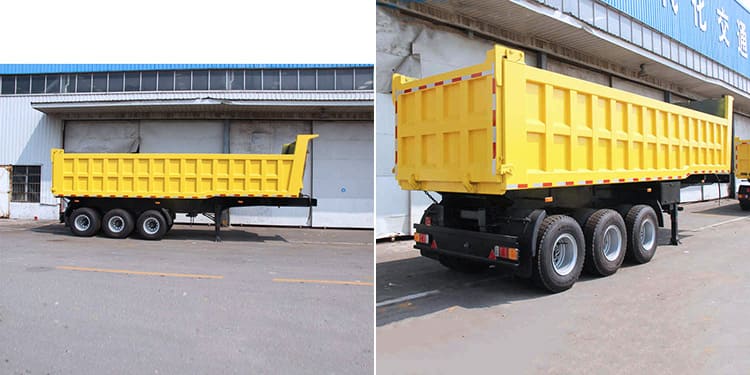

3 Axle 38 Ton Semi Dumper Trailer can transport the goods through the self-unloading function, and is widely used in the transportation of bulk and scattered goods such as coal, ore, and construction materials.
TITAN 3 Axle 38 Ton Semi Dumper Trailer 's leaf spring is widened and thickened, the shock absorption effect is good, the suspension is widened, and the king pin is wider, which makes the vehicle more stable during driving.
TITAN 3 Axle 38 Ton Semi Dumper Trailer also adopts 4 units flip brackets, which can make the rear end more evenly loaded during unloading, and it is not easy to damage the trailer.
Dimension: 9300mmx2500mm x3700mm (inside dimension)
Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.
Bottom Platform: 4 thick checkered plate
Side wall thickness: 4mm
Total volume(m³): 38 ton
End plate: 8mm
Lifting System: Full set of HYVA lifting cylinder
Axle: 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20 or 9.00-20
Tire: 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Through these videos, you can learn about different types of semi dump trailers, as well as the process, testing, packaging and customer feedback, etc.
