20 Foot Container Chassis
20 Foot Container Chassis

20 Foot Container Chassis

6700 USD

Different Parameters, Different Price. Price Reference Only.



TITAN Container Chassis can be customized to 20/40/45/53 feet. We also provide customers with different options.

SKU: 20 Foot Container Chassis Semi Trailer
GTIN: 6975766113704
MPN: TITAN9401042
Brand: TITAN

Product Description:

Use a 20 Foot Container Chassis to transfer goods, which can be directly packaged in the consignor’s warehouse, and then transported to the consignee’s warehouse for unloading. There is no need to remove the goods from the packing box and replace them during replacement or midway transportation.

TITAN Container Chassis can be customized to 20/40/45/53 feet. We also provide customers with different options: 2 axles, 3 axles, 4 axles, airbag suspension, spring steel suspension.

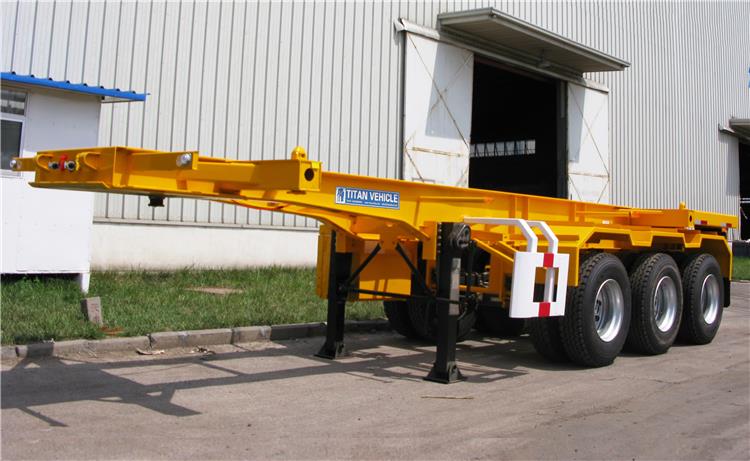

20ft Container Semi Trailer

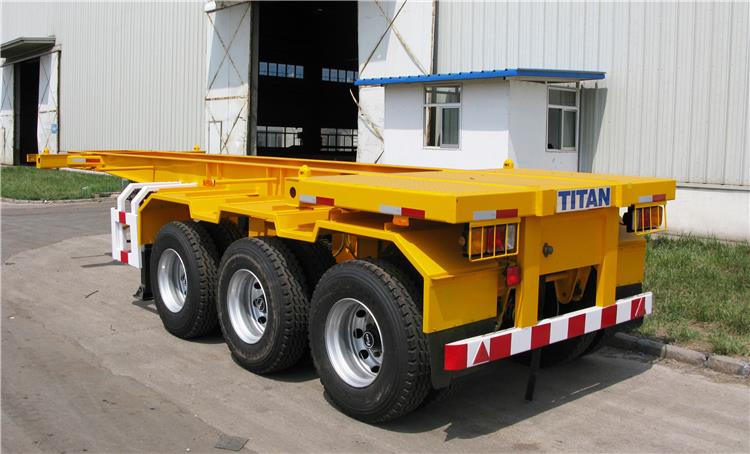

20ft Container Semi Trailer



20 Foot Container Chassis Specifications:

Dimension(mm): 6200x2500x1500mm

Loading capacity(ton): ≤60T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand

Tire: 13 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension or Air suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Shipping Terms: Transported by the bulk carrier in an RORO or 40ft container
