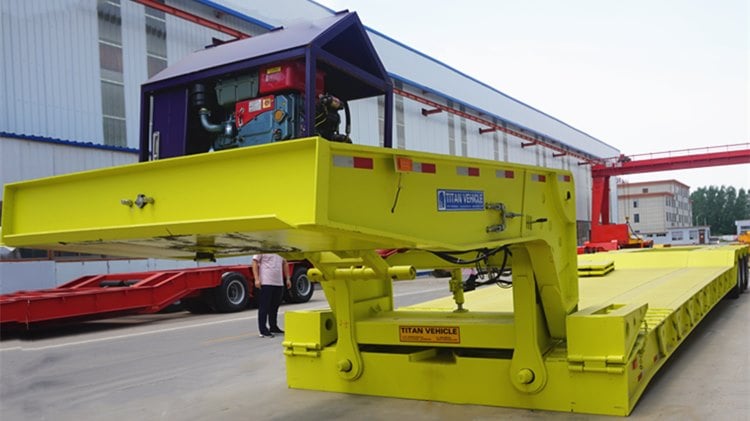

3 Line 6 Axle Gooseneck Lowboy Trailer is offered in a wide variety of styles. Basically, almost any TITAN trailer that is offered in a bumper pull or pintle ring version can also be purchased in a gooseneck lowboy trailer version.
There are several fundamentally different types of hitch connections for utility, flatbed, and equipment trailers. These include ball coupler, pintle ring, king pin, and gooseneck ball attaching mechanisms. Gooseneck lowboy trailers are made specifically to hook to a ball in the center of a pickup truck bed. There are two significant advantages to this type of hitch.
Dimension: 17000mm x 3000mm x 2500mm
Loading capacity(T): 50-150T
Axle: 3 line 6 axle
Tire: 24 units, 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension or air suspension
Spring leaf: 120(W)mmx16(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Tare weight: About 9.5-19T
Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.
Bottom Platform: 5mm thick, checkered plate
Hydraulic cylinder: 12KW diesel engine with hydraulic station
Ramp: spring or hydraulic type
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust
