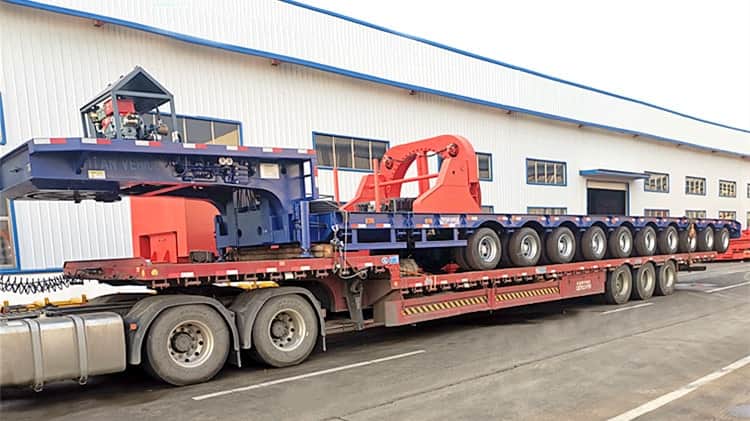

10 Axle Extendable Lowbed
10 Axle Extendable Lowbed

10 Axle Extendable Lowbed

61530 USD

Different Parameters, Different Price. Price Reference Only.



TITAN produces 9/10 Axle Extendable Lowbed Trailer for Carrying 30 meters to 35 meter wind tower.TITAN 10-axle extendable trailer have proven to be the most efficient, lightest-weight option for customers.

SKU: 10 Axle Extendable Low bed Trailer
GTIN: 6975766112103
MPN: TITAN9410012
Brand: TITAN

10 Axle Extendable Lowbed Trailer Description:

TITAN 10 axles Extendable Lowbed Trailer for Carrying Tower.TITAN Extendable Trailer is noted for their highly robust frames and outstanding stability of the extension beam.

TITAN  9 axle /10 axle trailer use high strength steel material to ensure the capacity, the load can be up to 60 to 150 ton payload.TITAN designs and produces Tower Section Semi Trailer for hauling 30 meters to 35 meter wind tower.

After the mounting process, the wind tower mounting plate holes are precision machines to fit perfectly no matter what band or size, greatly reducing damage to the paint on the tower section.

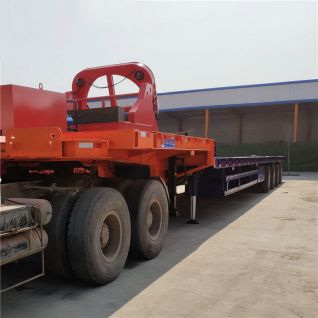

9 Axle Extendable Lowbed Trailer for Sale

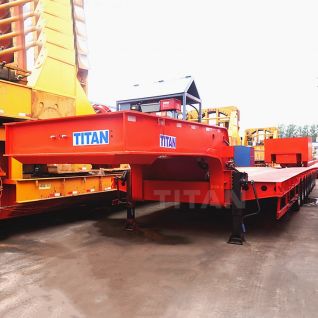

10 Axle Extendable Lowbed Trailer for Sale

9/10 Axle Extendable Trailer Price

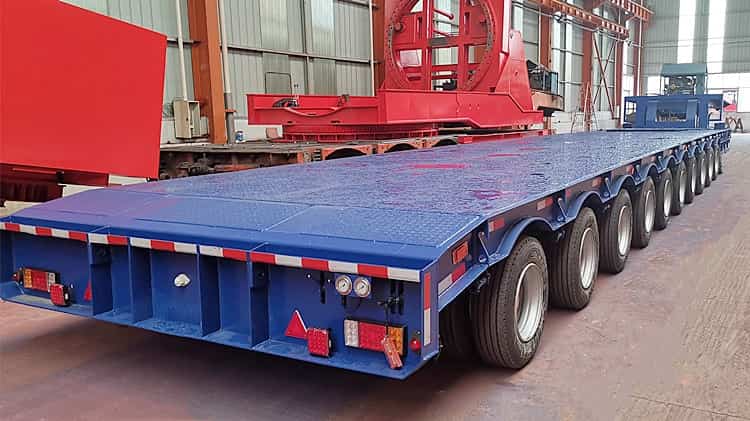

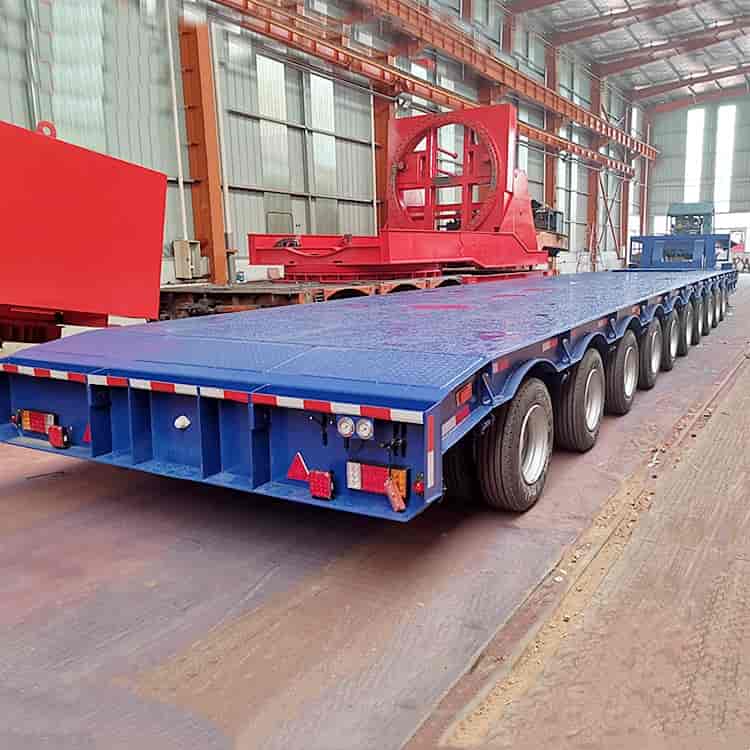

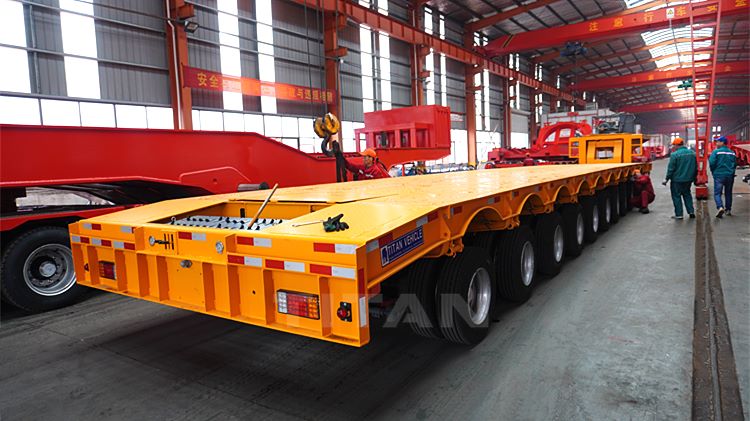

10 Axle Extendable Trailer-10 Axle

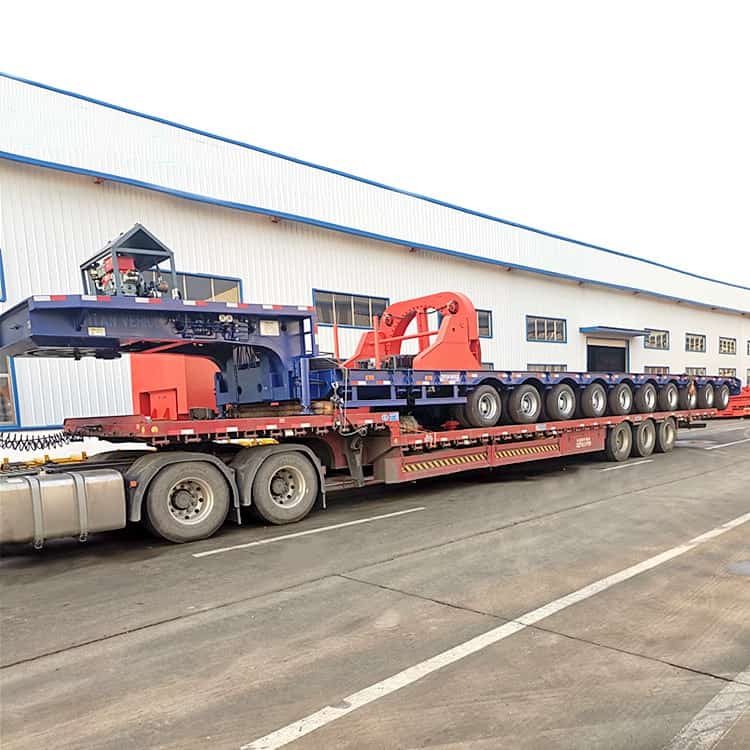

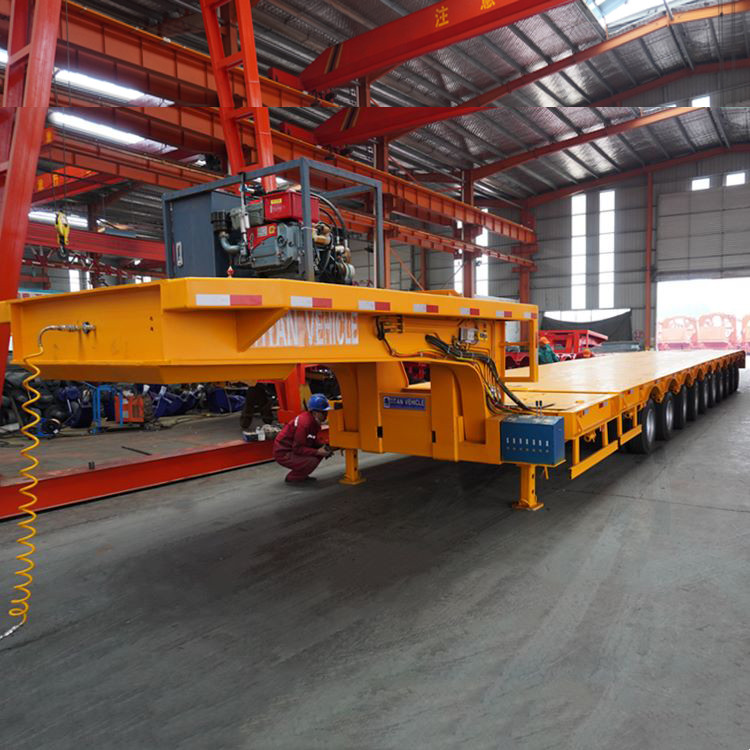

10-Axle Extendable Trailer-10 Axle Trailer



Specification:

Dimension(L*W*H): 18,500mm X 2,990mm X 950mm ( closed state)

33,500mm X 2,990mm X 950mm ( extension state)

Deadweight without ramps: 28.5 Ton

Deadweight with ramps: 29.5 Ton

Frame: HG60 high strength steel frame

Loading capacity: 90 Ton

Length: 18,500mm at closed state; 33,500mm after total extended

Width: 2,990mm + 2 X 250mm side swing bracket

Height: 200mm+/-90mm

Axle: 10 Axles

Maximum steering angle: +/-25°

Tyre: 40 units, 215/75R17.5

Gooseneck: Hydraulic gooseneck

Suspension: Hydraulic lifting suspension (only for adjusting the platform levelling needed)

Hydraulic power station: 1 set,12Kw diesel engine

Loading Ramps: 1 set, detachable ramps

Landing gear: JOST C200

Operation 2 wireless remote control: + 1 control valve panel



Advantage

1. 250mm wideners are equipped on both sides of the load-bearing platform; the length of the load-bearing platform is 14.5m, with a 2-level tensile structure, which can stretch 7500x2 to meet the requirements of 29m after the freight platform is stretched;

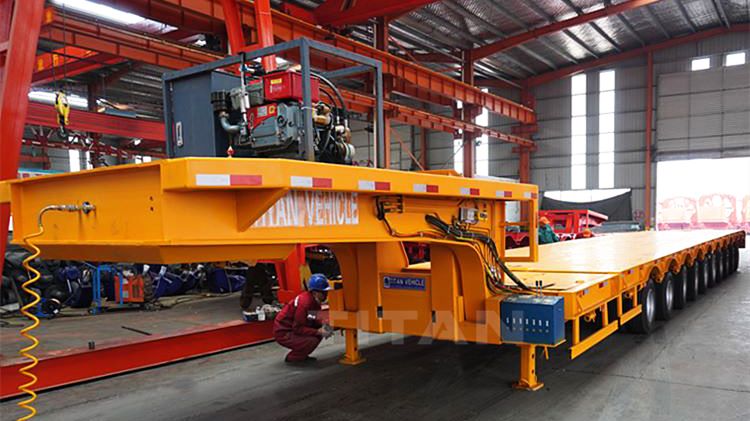

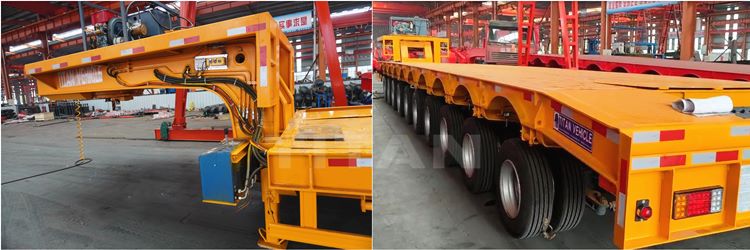

2. The gooseneck is a power gooseneck, with a device for adjusting the height of the cargo platform and setting the steering part of the axle;

3. The suspension is hydraulic suspension, with lifting function, the force between the axles is balanced by the suspension cylinder, and it has the function of lifting the axle independently;

4. This car has 10 axles, and the axles include 8 active steering axles, 4 in the front and 4 axles in the back; The tires are 235/75R17.5;

5. The active steering axle is controlled by hydraulic cylinders.

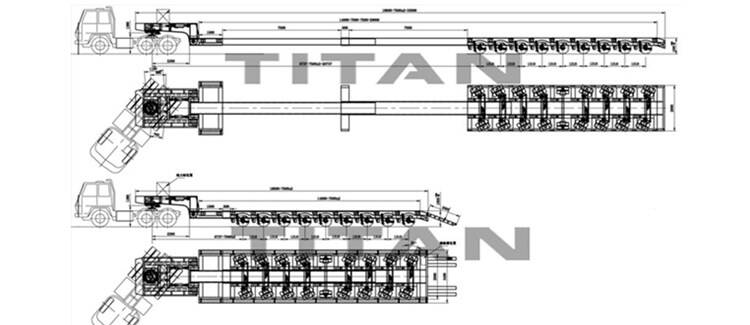

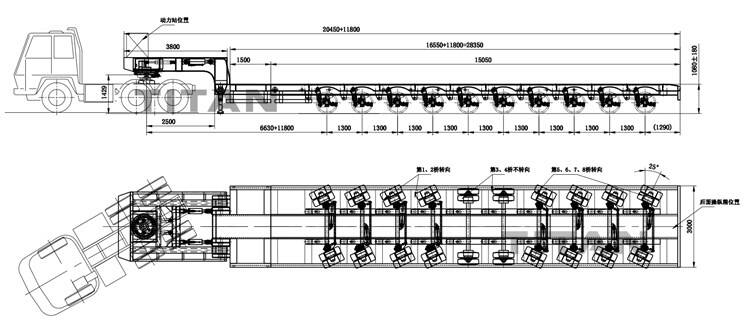

Drawing of 9 Axle Extendable Lowbed Trailer

Drawing of 9 Axle Extendable Lowbed Trailer

Drawing of 10-Axle Extendable Trailer

Drawing of 10-Axle Extendable Trailer

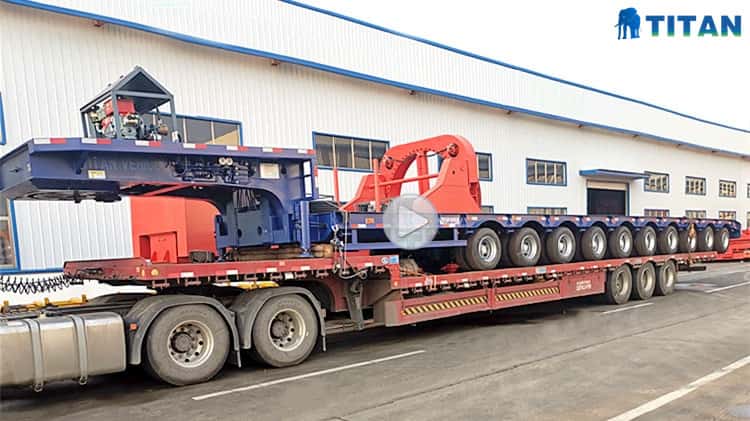

9/10-axle extendable trailer details display video

Please click "TITAN Wind Blade Trailer" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
