Tri Axle 60 Ton Drop Deck Trailer for Sale In Philippines Phapa

Philippine customers are our long-term partners. Customers buy a large number of semi trailers every year, and they trust the quality and quality of TITAN very much, so many old customers buy TITAN semi trailers again. This time the customer helped his friend buy tri axle 60 ton drop deck trailer for sale. Customers recommended TITAN.

This is not the first time that a client has recommended a friend to buy TITAN's semi trailer. Customers say that TITAN's service and quality are very professional, so they recommend us. And it is very suitable for beginners to buy. Because there are a lot of videos and manual references, it is very helpful for newbies.

Tri Axle 60 Ton Drop Deck Trailer for Sale In Philippines Phapa

Main Parts of Tri Axle 60 Ton Drop Deck Trailer for Sale:

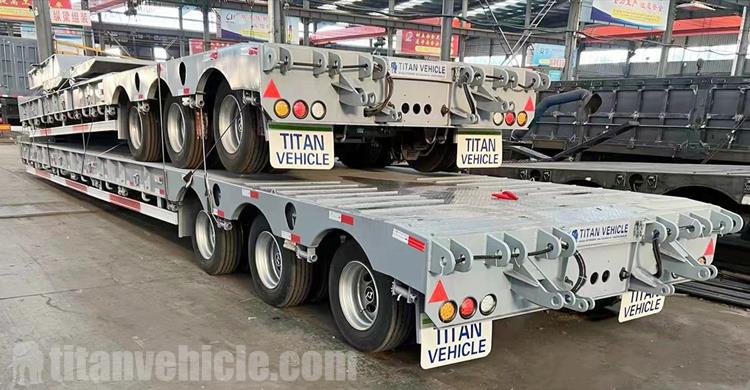

The tri axle 60 ton drop deck trailer is the most popular type low bed trailer with a loading capacity from 40 - 80 tons, like 3 axle low bed trailer, 4 axle lowbed trailer, 2 axle low bed trailer, models for 13-20 ton axles. Usually equipped with the spring ladders for the machines such as the wheel loaders, excavators, or some different types of wheeled machines transportation. The high of the working platform varies from 1000mm to 1200mm.

Braking system: It is composed of the trachea connector, inflation pipe, operating channel, gas reservoir, brake air chamber, relay valve, ABS valve, ABS sensor and wheel brake of the tractor.

The inflatable tube is connected to the tractor’s gas tank through a quick pipe joint; it is connected to the tractor’s brake valve through a quick joint. When the tri axle 60 ton drop deck trailer brakes, each brake air chamber functions simultaneously.

Tri Axle 60 Ton Drop Deck Trailer for Sale In Philippines Phapa

Traction pin: There is a traction pin connection plate connected to the 60 ton drop deck trailer saddle at the lower part of the front end of the frame. The traction pin is mainly used to transmit the traction of the tractor and the braking force during braking.

Suspension system: transfer load and absorb vibration.

Airway: emergency relay valve, ABS valve, and brake air chamber, most of the faults come from these three pieces.

Axle and hub system: A single, two and three axle assemblies of the same structure are installed under the suspension system.

Tri Axle 60 Ton Drop Deck Trailer for Sale In Philippines Phapa

Circuit: The tri axle 60 ton drop deck trailer transmits the light signal of the main vehicle to the trailer by connecting the spiral cable plug of the truck to the circuit socket at the front of the trailer. The tri axle 60 ton drop deck trailer equips with an international general electrical system that matches the truck.

Landing gear lifting system: In order to make the tri axle 60 ton drop deck trailer price reliably parked after being separated from the truck, the front end of the frame is provided with two linkage or single-action landing gear.

When the handle is pushed in, the rotation can be raised and lowered at high speed, and when the handle is pulled out, the rotation can be raised and lowered at low speed. When the outriggers touch the ground, they can only be raised and lowered in low gear.

Tri Axle 60 Ton Drop Deck Trailer for Sale In Philippines Phapa

You can download video, you can learn about different types of lowbed semi-trailers, like 2axle, 3axle, 4axle lowbed semi trailer, hydraulic ladder lowbed semi trailer, etc. As well as the process, testing, packaging and customer feedback, etc.

This kind of semi trailer was designed with lots of advantages and features. If you want to get more information, please don't hesitate to make contact with us.
