4 Axle Low Loader Trailer will be sent to Nigeria APAPA.

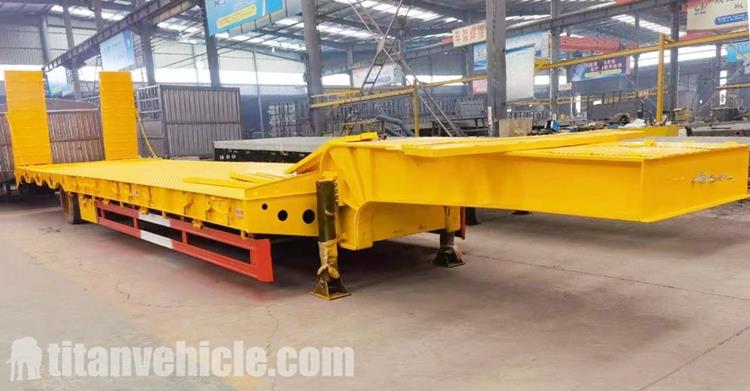

4 Axle Low Loader Trailer for Sale In Nigeria APAPA

Mr. Patricia, a Nigerian customer, is an old fan of TITAN Facebook. And he has purchased TITAN’s semi trailer in 2019, he has introduced us to many local customers.

Mr. Patricia saw feedback from customers on the TITAN Facebook before, and the customer immediately contacted us and said that after this, a similar 4 axle low loader trailer may also be needed.The following is the completed 4 axle low loader trailer.

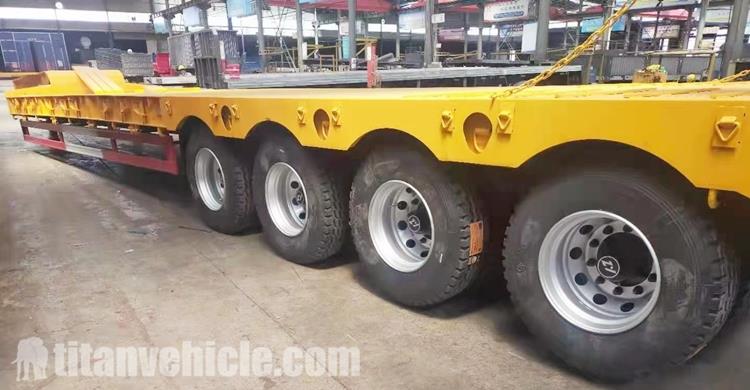

4 Axle Low Loader Trailer for Sale Manufacturer

4 Axle 60Ton Low Loader Trailer structure composition

1. The traction pin is an important component that connects the low loader trailer to the tractor and bears the traction force and is connected to the traction seat. It is generally forged from chromium alloy structural steel. For different cargo tonnages, there are 50# traction pins and 90# traction pins. Generally limited to the total weight of 50T trailers and cargo, 50# pins are used for those below 50T, 90# above 50T, and 90# traction pins are used for insurance purposes.

2. The 60 Ton Low Loader Trailer for Sale axle is the support bridge. The American and German axles are the most popular in China. The axles are connected to the frame through leaf springs and tie rods and suspension devices to connect between the frame and the wheels. The force that supports and transmits loads.

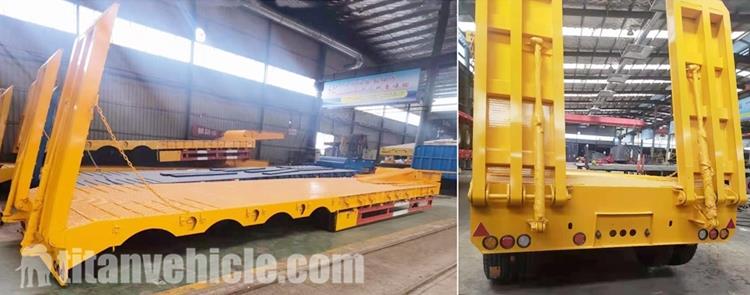

Factory Show of  60 Ton Low Loader Trailer Manufacturer

3. The side beams are generally channeled steel or bent parts. At present, most trailers use channel steel. There will be more side beams for light-weight hanging parts because the requirements for strength are not too great. Support beams are through beams, and most of them are now W beams.

4. The general 4 axle low loader trailer suspension is made of non-independent steel plate stamping rigid suspension, composed of tandem steel plate springs and suspension bearings, which are used to support the load and slow the impact of the dynamic load of the vehicle.

5. Other accessories on the semi trailer include tool boxes, spare tire racks, gantry racks, and piles. There are also some small accessories such as rope tighteners, rope hooks and other highly functional accessories, which should be selected according to the type of goods.

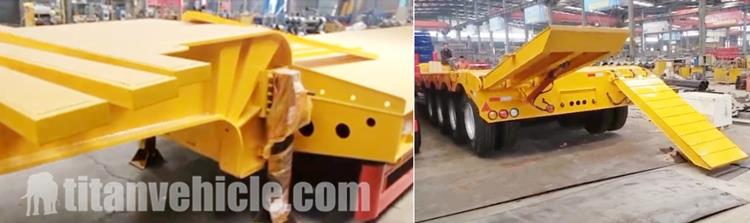

Details of 4 Axle Low Loader Trailer for Sale

6. The support device of 4 axle low bed trailer is mainly used to support the trailer when it is disengaged, and it is composed of outriggers and connecting brackets.

7. The electrical system consists of seven-core sockets, cables, gas circuits, various lamps, etc., used for lighting, safety warnings, and air supply for brakes. Generally, you can basically know how the quality of the factory is based on the regularity of the electrical wiring.

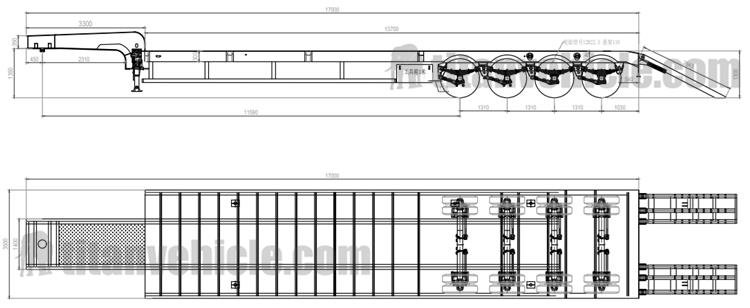

Drawing of 4 Axle Low Loader Trailer for Sale

You can download video, you can learn about different types of lowbed semi-trailers, like 2axle, 3axle, 4axle lowbed semi trailer, hydraulic ladder lowbed semi trailer, etc. As well as the process, testing, packaging and customer feedback, etc.

Lowbed Semi Trailers Video

This kind of semi trailer was designed with lots of advantages and features. If you want to get more information, please don't hesitate to make contact with us.
