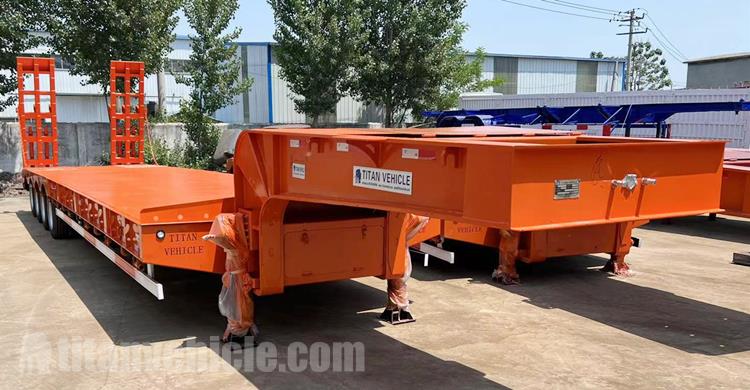

4 Axle 100 Ton Drop Deck Trailer for Sale In Angola

TITAN has a lot of local customers in Angola, Luis saw the TITAN tri axle drop deck trailer locally, he immediately contacted us. The customer needs to transport the excavator and some large equipment locally, so we recommend the customer to use the 4 axle 100 ton drop deck trailer, this semi-trailer is exactly what the customer needs.

4 Axle 100 ton drop deck trailer, use high strength steel material to ensure the capacity, the load can be up to 100 to 120 ton payload. We adopt famous brand parts, like WABCO braking valve, JOST legs, FUWA, BPW axles. This’ll ensure the long service life of the trailers.

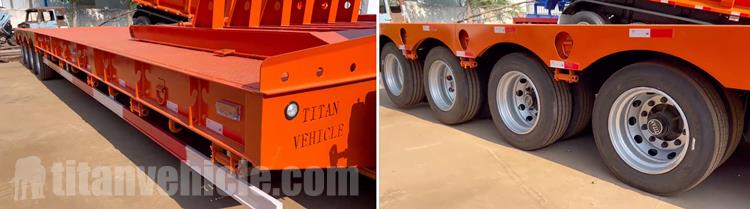

4 Axle 100 Ton Drop Deck Trailer for Sale In Angola

Features of 4 Axle 100 Ton Drop Deck Trailer

4 Axle 100 ton drop deck trailer is usually used to transport heavy vehicle. rail vehicles, mining machinery, forestry machinery, construction machinery, and other heavy objects, can also be loaded with large parts or Bulk cargo. Loading large parts or bulk cargo is the same operation as a flatbed semi-trailer. The lower it's center of gravity, the better the stability and safety, and the better the ability to transport ultra-high cargo and overhead obstacles.

4 Axle 100 ton drop deck trailer is also very wide, suitable for all kinds of machinery and equipment, large objects, road construction equipment, large oil tanks and power station equipment machinery and various steel transportation

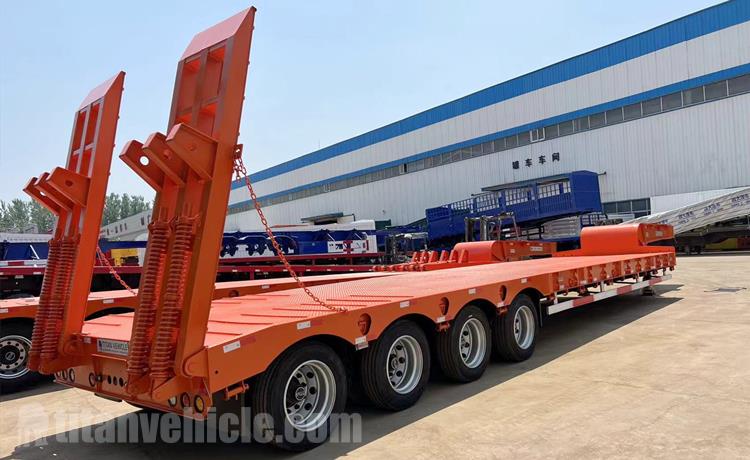

4 Axle 100 Ton Drop Deck Trailer for Sale In Angola

Types and loads of 4 Axle 100 Ton Drop Deck Trailer

The main types of drop deck trailer are two axles high and low, two-line four-axles high and high, three-line six-axles high and high.

We are able to customize drop deck trailer according to your needs

The number of shafts, the size of the tire, the load of the 100 ton drop deck trailer are also different, the number of shafts, the greater the load, the load range between 20-150 tons.

TITAN 4 Axle 100 ton drop deck trailer main beam adopts a height of 550mm and a thickness of 14mm. The thickness of the upper plate is 22mm, the thickness of the lower plate is 22mm and the width of the upper and lower plate is 220mm

4 Axle 100 Ton Drop Deck Trailer for Sale In Angola

TITAN 4 Axle 100 ton drop deck trailer for sale main beam gooseneck lower has a reinforcement, gooseneck double plat. The trailer is a heavy load when the deformation range is very small, better to use.

In the through-beam design, our beam use HG60 high-strength steel. The thickness is 6mm, and the inclined support is HG60 with a thickness of 6mm. the height of the side beam is 300m, effectively connecting the main beam and side beam together as a whole. Bearing capacity anti-turbulence capacity greatly increased, and the service life was more than 10 years.

The floor plate is strong and durable, and not easy to deform. The side beam is designed H shape with a height of 300mm, width of 140mm and thickness of 8mm. Its bearing capacity is twice that of other steel, and it will not deform after ten years of use. Anti-turbulence ability increased about 3 times.

4 Axle 100 Ton Drop Deck Trailer for Sale In Angola

You can learn about different types of lowbed semi-trailers, like 2axle, 3axle, 4axle lowbed semi trailer, hydraulic ladder lowbed semi trailer, etc. As well as the process, testing, packaging and customer feedback, etc.

This kind of semi trailer was designed with lots of advantages and features. If you want to get more information, please don't hesitate to make contact with us.
